Overview

Metric	CentroidAlifold(seed)		Afold
MCC	0.572	>	0.495
Average MCC ± 95% Confidence Intervals	0.511 ± 0.096	<	0.524 ± 0.107
Sensitivity	0.366	<	0.458
Positive Predictive Value	0.899	>	0.539
Total TP	355	<	445
Total TN	246097	>	245666
Total FP	57	<	456
Total FP CONTRA	14	<	66
Total FP INCONS	26	<	315
Total FP COMP	17	<	75
Total FN	616	>	526
P-value	5.1503931209e-08

^top

Performance plots

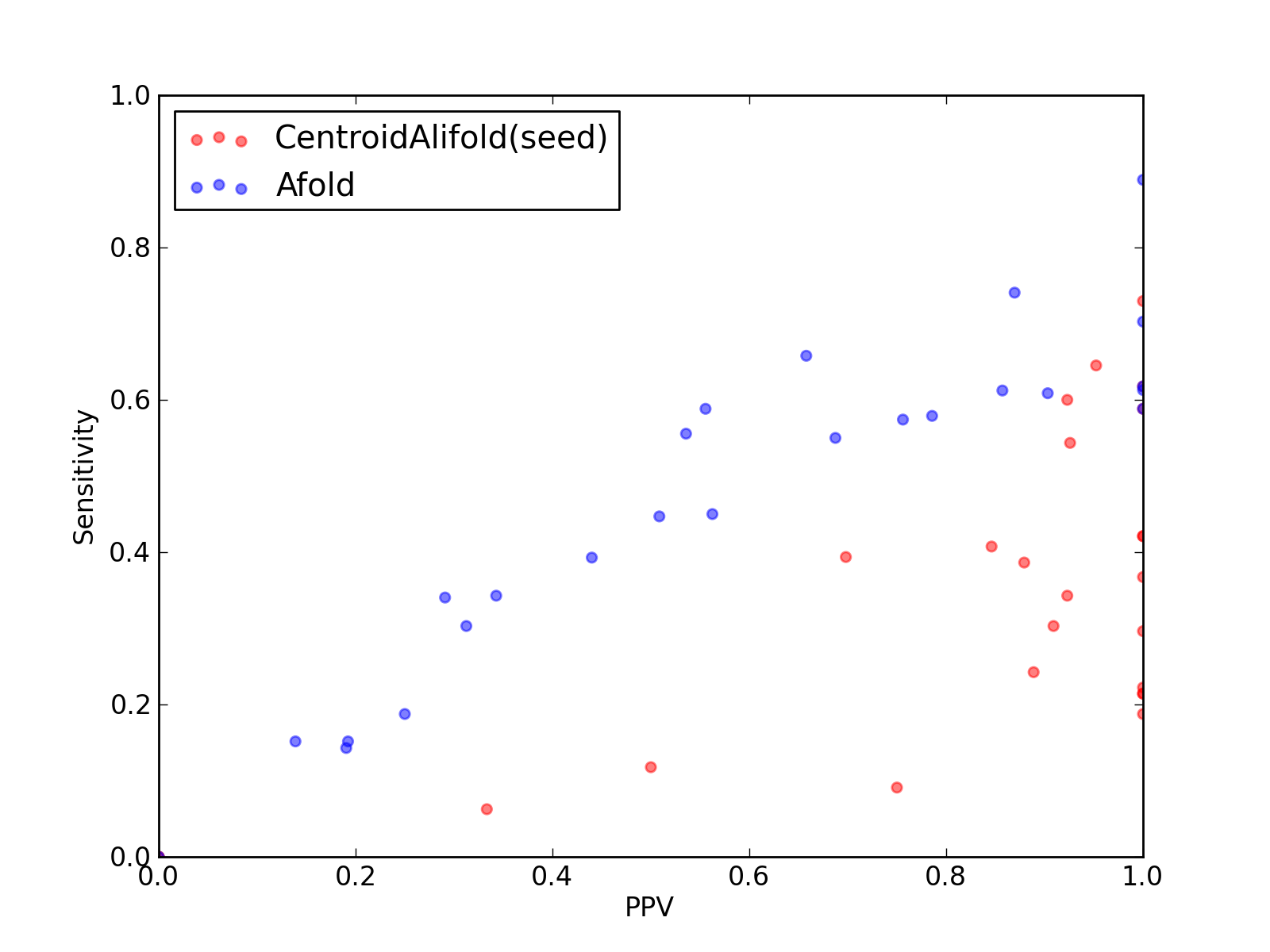

Comparison of performance of CentroidAlifold(seed) and Afold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and Afold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and Afold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and Afold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and Afold).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	355
Total TN	246097
Total FP	57
Total FP CONTRA	14
Total FP INCONS	26
Total FP COMP	17
Total FN	616

Total Scores
MCC	0.572
Average MCC ± 95% Confidence Intervals	0.511 ± 0.096
Sensitivity	0.366
Positive Predictive Value	0.899
Nr of predictions	25

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2WRQ_Y	tRNA links to Rfam database...	0.24	0.12	0.50	2	2846	4	0	2	2	15
2ZZM_B	tRNA links to Rfam database...	0.14	0.06	0.33	2	3480	4	0	4	0	30
2ZZN_D	tRNA links to Rfam database...	0.47	0.22	1.00	6	2479	0	0	0	0	21
3A2K_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2920	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3AKZ_H	tRNA links to Rfam database...	0.46	0.21	1.00	6	2695	0	0	0	0	22
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IYQ_A	tmRNA links to Rfam database...	0.52	0.39	0.70	37	60673	21	10	6	5	57
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	2	5	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	6887	0	0	0	0	38
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.09	0.75	3	7499	1	0	1	0	30
3JYV_7	tRNA links to Rfam database...	0.43	0.19	1.00	6	2844	0	0	0	0	26
3JYX_4	5_8S_rRNA links to Rfam database...	0.52	0.30	0.91	10	12235	3	0	1	2	23
3JYX_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	11	6315	5	0	2	3	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.54	0.93	25	6994	4	1	1	2	21
3O58_2	5S_rRNA links to Rfam database...	0.65	0.42	1.00	16	7244	0	0	0	0	22
3O58_3	5_8S_rRNA links to Rfam database...	0.56	0.34	0.92	12	12390	1	0	1	0	23
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.60	0.92	24	4727	3	0	2	1	16
3ZEX_D	5S_rRNA links to Rfam database...	0.60	0.37	1.00	18	7003	0	0	0	0	31
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11

^top

Performance of Afold - scored lower in this pairwise comparison

1. Total counts & total scores for Afold

Total Base Pair Counts
Total TP	445
Total TN	245666
Total FP	456
Total FP CONTRA	66
Total FP INCONS	315
Total FP COMP	75
Total FN	526

Total Scores
MCC	0.495
Average MCC ± 95% Confidence Intervals	0.524 ± 0.107
Sensitivity	0.458
Positive Predictive Value	0.539
Nr of predictions	25

^top

2. Individual counts for Afold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	6	0	5	1	9
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.80	0.74	0.87	20	2462	3	0	3	0	7
3A2K_C	tRNA links to Rfam database...	0.41	0.39	0.44	11	2901	14	2	12	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.70	1.00	26	3629	0	0	0	0	11
3AKZ_H	tRNA links to Rfam database...	0.16	0.14	0.19	4	2680	17	2	15	0	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60616	82	23	55	4	62
3IZ4_A	tmRNA links to Rfam database...	0.48	0.45	0.51	59	70760	58	11	46	1	73
3IZF_C	5S_rRNA links to Rfam database...	0.66	0.57	0.76	31	6862	10	1	9	0	23
3J3E_8	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	7477	31	2	19	10	28
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2827	23	1	22	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3JYX_3	5S_rRNA links to Rfam database...	0.54	0.56	0.54	15	6300	24	1	12	11	12
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.74	0.61	0.90	28	6990	5	0	3	2	18
3O58_2	5S_rRNA links to Rfam database...	0.66	0.66	0.66	25	7222	14	4	9	1	13
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3W3S_B	tRNA-Sec links to Rfam database...	0.50	0.45	0.56	18	4721	15	1	13	1	22
3ZEX_D	5S_rRNA links to Rfam database...	0.72	0.61	0.86	30	6986	5	0	5	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	43	5	26	12	28
4ENB_A	crcB links to Rfam database...	0.67	0.58	0.79	11	1261	3	1	2	0	8

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
