Overview

Metric	CentroidAlifold(seed)		RNAalifold(seed)
MCC	0.674	>	0.606
Average MCC ± 95% Confidence Intervals	0.610 ± 0.087	>	0.527 ± 0.087
Sensitivity	0.509	>	0.428
Positive Predictive Value	0.892	>	0.860
Total TP	871	>	732
Total TN	1386450	<	1386575
Total FP	128	<	136
Total FP CONTRA	23	>	18
Total FP INCONS	82	<	101
Total FP COMP	23	>	17
Total FN	841	<	980
P-value	5.19332990918e-08

^top

Performance plots

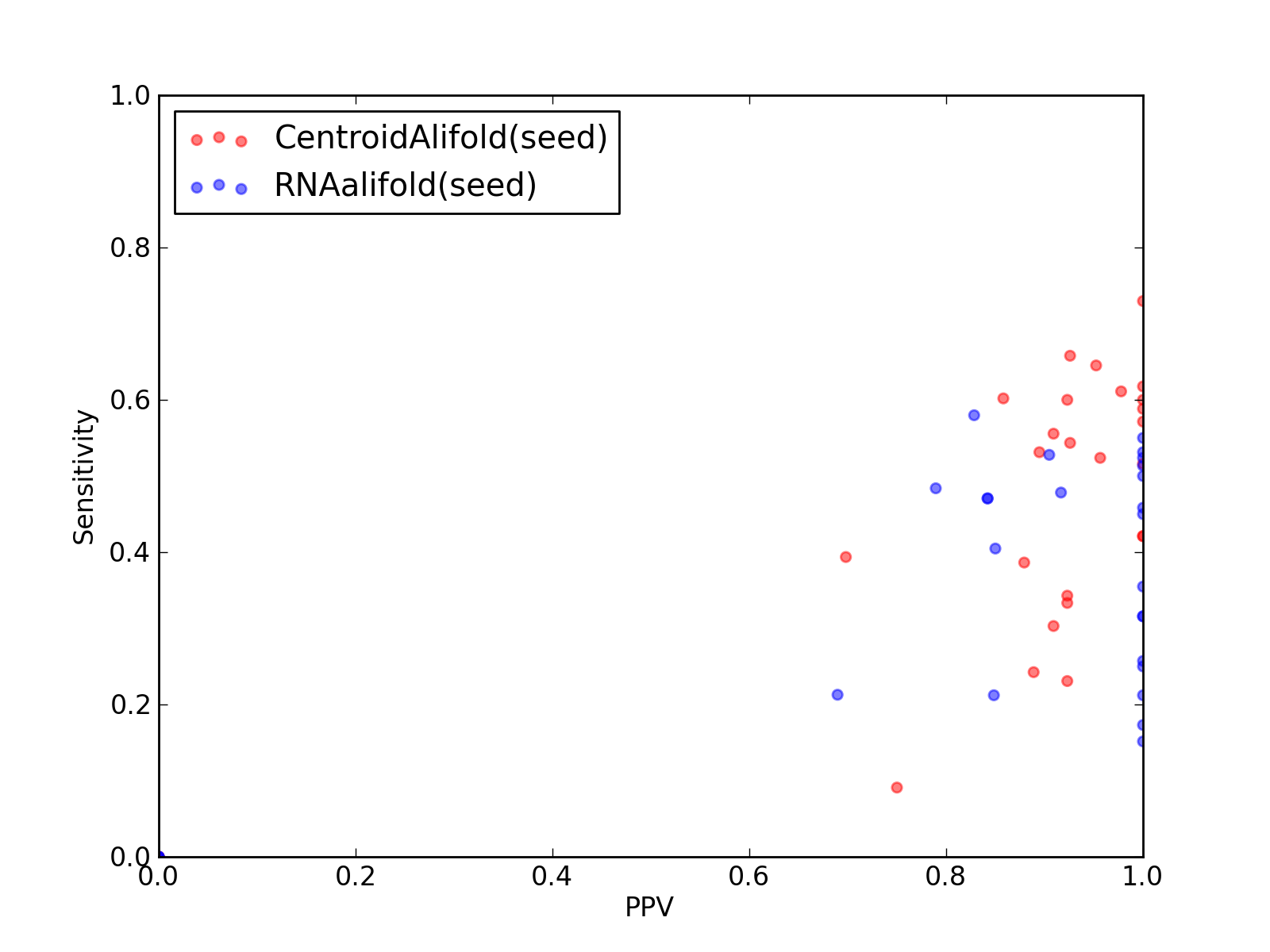

Comparison of performance of CentroidAlifold(seed) and RNAalifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

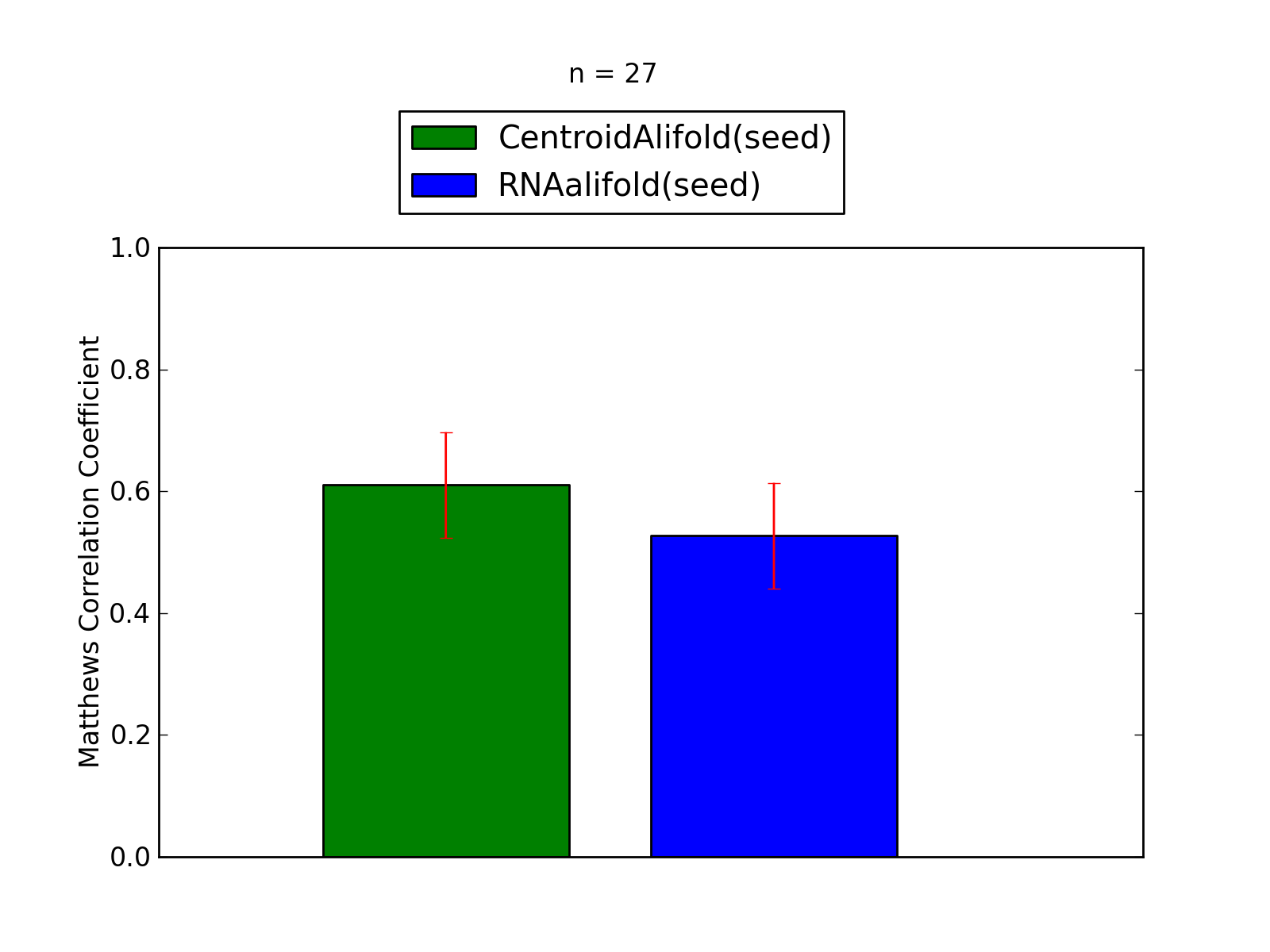

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and RNAalifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	871
Total TN	1386450
Total FP	128
Total FP CONTRA	23
Total FP INCONS	82
Total FP COMP	23
Total FN	841

Total Scores
MCC	0.674
Average MCC ± 95% Confidence Intervals	0.610 ± 0.087
Sensitivity	0.509
Positive Predictive Value	0.892
Nr of predictions	27

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IYQ_A	tmRNA links to Rfam database...	0.52	0.39	0.70	37	60673	21	10	6	5	57
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	2	5	0	81
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.72	0.60	0.86	381	1116321	70	5	58	7	252
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.09	0.75	3	7499	1	0	1	0	30
3J3F_8	5_8S_rRNA links to Rfam database...	0.55	0.33	0.92	12	12233	1	0	1	0	24
3JYX_4	5_8S_rRNA links to Rfam database...	0.52	0.30	0.91	10	12235	3	0	1	2	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.54	0.93	25	6994	4	1	1	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.56	0.34	0.92	12	12390	1	0	1	0	23
3PDR_A	ykoK links to Rfam database...	0.77	0.61	0.98	44	12835	3	0	1	2	28
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.66	0.93	25	4159	2	1	1	0	13
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.60	0.92	24	4727	3	0	2	1	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.46	0.23	0.92	12	14183	1	1	0	0	40
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1318	0	0	0	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.53	0.89	17	3467	2	1	1	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.56	0.91	20	5129	2	1	1	0	16
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Performance of RNAalifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	732
Total TN	1386575
Total FP	136
Total FP CONTRA	18
Total FP INCONS	101
Total FP COMP	17
Total FN	980

Total Scores
MCC	0.606
Average MCC ± 95% Confidence Intervals	0.527 ± 0.087
Sensitivity	0.428
Positive Predictive Value	0.860
Nr of predictions	27

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.71	0.51	1.00	19	3636	0	0	0	0	18
3GX2_A	SAM links to Rfam database...	0.74	0.55	1.00	22	4349	1	0	0	1	18
3IVN_B	Purine links to Rfam database...	0.61	0.48	0.79	15	2327	4	2	2	0	16
3IYQ_A	tmRNA links to Rfam database...	0.38	0.21	0.69	20	60697	13	5	4	4	74
3IZ4_A	tmRNA links to Rfam database...	0.42	0.21	0.85	28	70843	5	1	4	0	104
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.69	0.58	0.83	367	1116322	80	5	71	4	266
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	9	12237	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2466	3	1	2	0	18
3NPB_A	SAM links to Rfam database...	0.66	0.48	0.92	22	6997	3	1	1	1	24
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.68	0.46	1.00	33	12847	1	0	0	1	39
3RKF_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2192	3	1	2	0	18
3SD1_A	THF links to Rfam database...	0.58	0.40	0.85	17	3896	3	1	2	0	25
3W1K_J	tRNA-Sec links to Rfam database...	0.71	0.50	1.00	19	4167	0	0	0	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.45	1.00	18	4735	1	0	0	1	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.17	1.00	9	14187	0	0	0	0	43
4A1C_2	5_8S_rRNA links to Rfam database...	0.39	0.15	1.00	5	11776	2	0	0	2	28
4AOB_A	SAM links to Rfam database...	0.72	0.52	1.00	22	4349	1	0	0	1	20
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.73	0.53	1.00	17	3469	0	0	0	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.69	0.53	0.90	19	5130	2	1	1	0	17
4JF2_A	preQ1-II links to Rfam database...	0.59	0.35	1.00	11	2839	0	0	0	0	20

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
