Overview

Metric	CentroidAlifold(seed)		RNAsubopt
MCC	0.581	>	0.537
Average MCC ± 95% Confidence Intervals	0.534 ± 0.058	<	0.541 ± 0.069
Sensitivity	0.367	<	0.485
Positive Predictive Value	0.923	>	0.599
Total TP	709	<	937
Total TN	377817	>	377022
Total FP	84	<	726
Total FP CONTRA	18	<	89
Total FP INCONS	41	<	537
Total FP COMP	25	<	100
Total FN	1223	>	995
P-value	3.56938820447e-08

^top

Performance plots

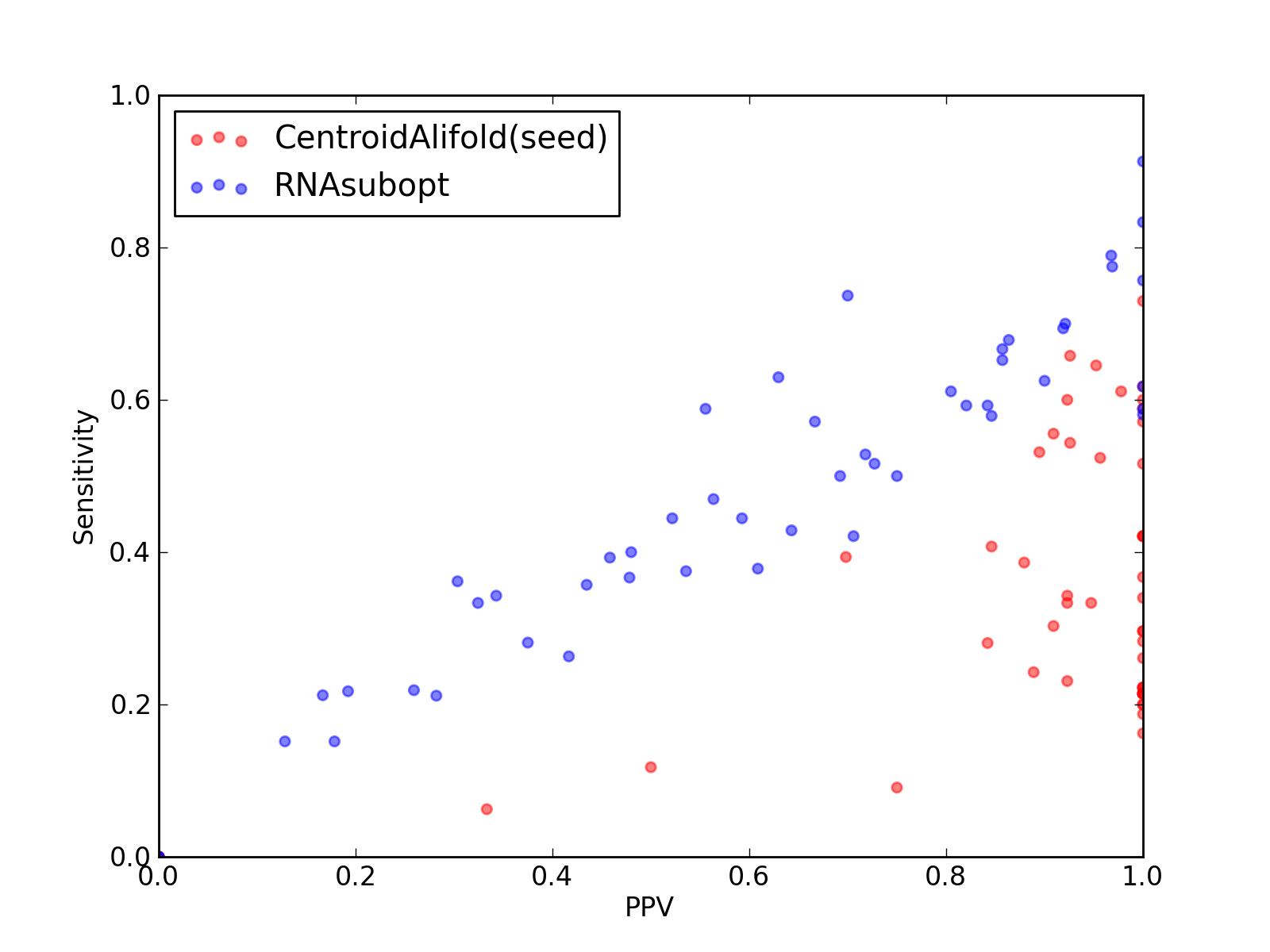

Comparison of performance of CentroidAlifold(seed) and RNAsubopt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAsubopt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAsubopt).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and RNAsubopt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAsubopt).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	709
Total TN	377817
Total FP	84
Total FP CONTRA	18
Total FP INCONS	41
Total FP COMP	25
Total FN	1223

Total Scores
MCC	0.581
Average MCC ± 95% Confidence Intervals	0.534 ± 0.058
Sensitivity	0.367
Positive Predictive Value	0.923
Nr of predictions	50

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2WRQ_Y	tRNA links to Rfam database...	0.24	0.12	0.50	2	2846	4	0	2	2	15
2WWQ_V	tRNA links to Rfam database...	0.46	0.21	1.00	6	2920	0	0	0	0	22
2XQD_Y	tRNA links to Rfam database...	0.47	0.22	1.00	6	2844	0	0	0	0	21
2ZZM_B	tRNA links to Rfam database...	0.14	0.06	0.33	2	3480	4	0	4	0	30
2ZZN_D	tRNA links to Rfam database...	0.47	0.22	1.00	6	2479	0	0	0	0	21
3A2K_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2920	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3AKZ_H	tRNA links to Rfam database...	0.46	0.21	1.00	6	2695	0	0	0	0	22
3AMU_B	tRNA links to Rfam database...	0.47	0.22	1.00	6	2997	0	0	0	0	21
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IYQ_A	tmRNA links to Rfam database...	0.52	0.39	0.70	37	60673	21	10	6	5	57
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	2	5	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	6887	0	0	0	0	38
3J16_L	tRNA links to Rfam database...	0.45	0.20	1.00	6	2769	0	0	0	0	24
3J20_0	tRNA links to Rfam database...	0.45	0.20	1.00	6	2844	0	0	0	0	24
3J20_1	tRNA links to Rfam database...	0.51	0.26	1.00	6	2920	0	0	0	0	17
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.28	1.00	15	7860	2	0	0	2	38
3J3D_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2769	0	0	0	0	22
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.09	0.75	3	7499	1	0	1	0	30
3J3E_7	5S_rRNA links to Rfam database...	0.56	0.33	0.95	18	7121	1	0	1	0	36
3J3F_8	5_8S_rRNA links to Rfam database...	0.55	0.33	0.92	12	12233	1	0	1	0	24
3J3F_7	5S_rRNA links to Rfam database...	0.58	0.34	1.00	17	7243	1	0	0	1	33
3J3V_B	5S_rRNA links to Rfam database...	0.48	0.28	0.84	16	7002	3	0	3	0	41
3JYV_7	tRNA links to Rfam database...	0.43	0.19	1.00	6	2844	0	0	0	0	26
3JYX_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	11	6315	5	0	2	3	16
3JYX_4	5_8S_rRNA links to Rfam database...	0.52	0.30	0.91	10	12235	3	0	1	2	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.54	0.93	25	6994	4	1	1	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.56	0.34	0.92	12	12390	1	0	1	0	23
3O58_2	5S_rRNA links to Rfam database...	0.65	0.42	1.00	16	7244	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.77	0.61	0.98	44	12835	3	0	1	2	28
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
3UZL_B	tRNA links to Rfam database...	0.40	0.16	1.00	6	3564	0	0	0	0	31
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.66	0.93	25	4159	2	1	1	0	13
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.60	0.92	24	4727	3	0	2	1	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.46	0.23	0.92	12	14183	1	1	0	0	40
3ZEX_D	5S_rRNA links to Rfam database...	0.60	0.37	1.00	18	7003	0	0	0	0	31
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	2998	6	0	5	1	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4A1C_3	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	7124	0	0	0	0	38
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1318	0	0	0	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.53	0.89	17	3467	2	1	1	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.56	0.91	20	5129	2	1	1	0	16
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Performance of RNAsubopt - scored lower in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	937
Total TN	377022
Total FP	726
Total FP CONTRA	89
Total FP INCONS	537
Total FP COMP	100
Total FN	995

Total Scores
MCC	0.537
Average MCC ± 95% Confidence Intervals	0.541 ± 0.069
Sensitivity	0.485
Positive Predictive Value	0.599
Nr of predictions	50

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2ZZM_B	tRNA links to Rfam database...	0.23	0.22	0.26	7	3459	20	2	18	0	25
2ZZN_D	tRNA links to Rfam database...	0.48	0.44	0.52	12	2462	11	1	10	0	15
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3AKZ_H	tRNA links to Rfam database...	0.39	0.36	0.43	10	2678	13	2	11	0	18
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.44	0.38	0.54	15	4343	14	1	12	1	25
3IVN_B	Purine links to Rfam database...	0.76	0.58	1.00	18	2328	0	0	0	0	13
3IYQ_A	tmRNA links to Rfam database...	0.33	0.36	0.30	34	60614	82	17	61	4	60
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.56	62	70766	49	8	40	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J16_L	tRNA links to Rfam database...	0.41	0.37	0.48	11	2752	12	1	11	0	19
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	2	0	0	2	2
3J2L_3	5S_rRNA links to Rfam database...	0.61	0.53	0.72	28	7836	13	0	11	2	25
3J3D_C	tRNA links to Rfam database...	0.61	0.57	0.67	16	2751	8	0	8	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	7475	32	2	21	9	28
3J3E_7	5S_rRNA links to Rfam database...	0.59	0.50	0.69	27	7101	12	1	11	0	27
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.32	12	12209	39	4	21	14	24
3J3F_7	5S_rRNA links to Rfam database...	0.80	0.70	0.92	35	7222	4	0	3	1	15
3J3V_B	5S_rRNA links to Rfam database...	0.54	0.42	0.71	24	6987	10	1	9	0	33
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2829	21	0	21	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.63	0.63	0.63	17	6301	21	1	9	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.19	0.21	0.17	7	12204	38	11	24	3	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.75	0.65	0.86	30	6986	7	1	4	2	16
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	28	7220	13	4	8	1	10
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	42	1	27	14	41
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4AOB_A	SAM links to Rfam database...	0.52	0.43	0.64	18	4343	11	2	8	1	24
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	0	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.44	0.59	16	5124	11	3	8	0	20
4JF2_A	preQ1-II links to Rfam database...	0.61	0.52	0.73	16	2828	6	3	3	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
