Overview

Metric	CentroidFold		Carnac(seed)
MCC	0.574	>	0.385
Average MCC ± 95% Confidence Intervals	0.569 ± 0.093	>	0.065 ± 0.076
Sensitivity	0.480	>	0.167
Positive Predictive Value	0.687	<	0.890
Total TP	788	>	274
Total TN	1281447	<	1282286
Total FP	399	>	36
Total FP CONTRA	48	>	3
Total FP INCONS	311	>	31
Total FP COMP	40	>	2
Total FN	853	<	1367
P-value	5.19332990918e-08

^top

Performance plots

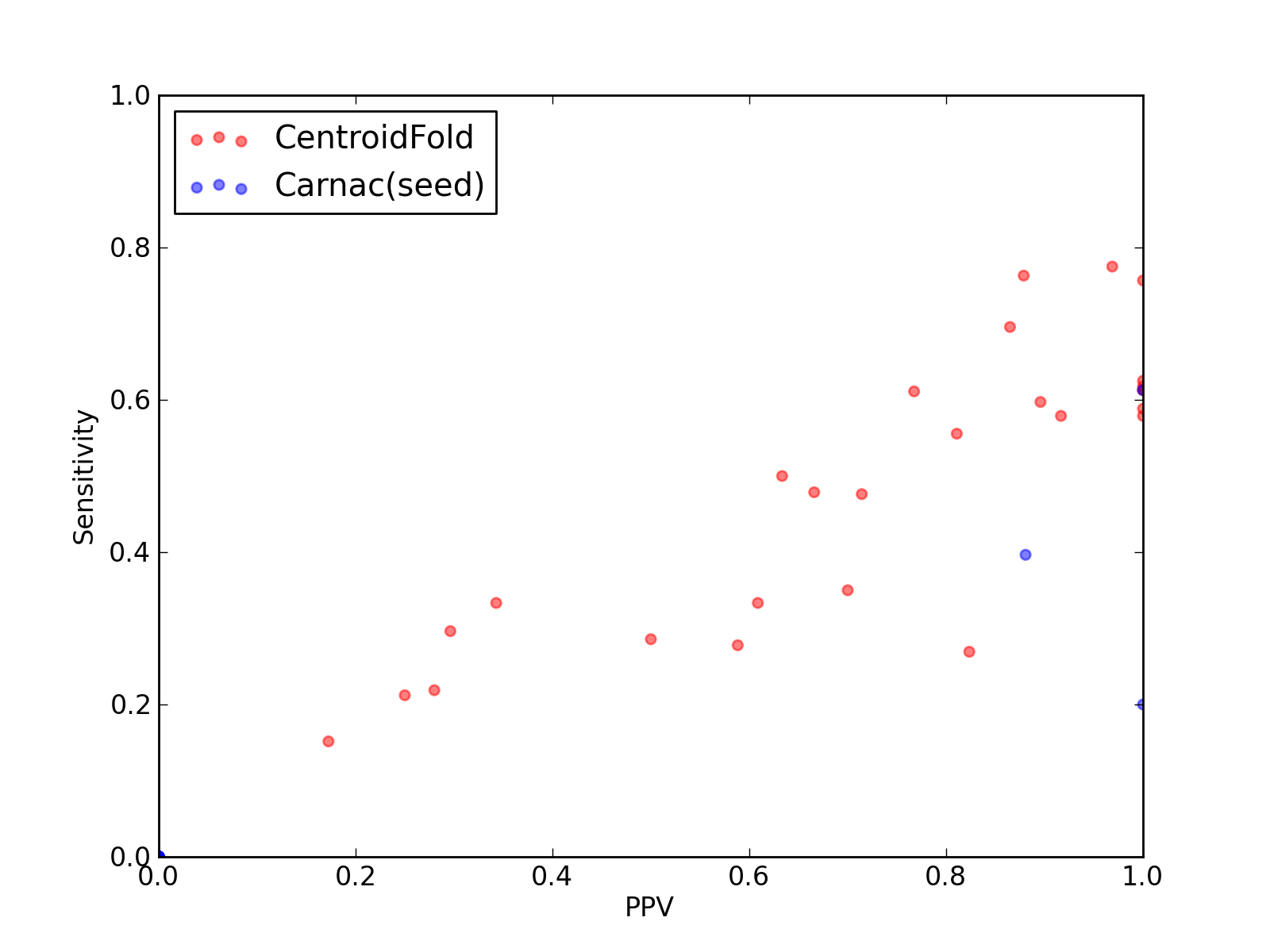

Comparison of performance of CentroidFold and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Carnac(seed)).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	788
Total TN	1281447
Total FP	399
Total FP CONTRA	48
Total FP INCONS	311
Total FP COMP	40
Total FN	853

Total Scores
MCC	0.574
Average MCC ± 95% Confidence Intervals	0.569 ± 0.093
Sensitivity	0.480
Positive Predictive Value	0.687
Nr of predictions	28

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.35	0.70	7	1530	3	1	2	0	13
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3GX2_A	SAM links to Rfam database...	0.79	0.63	1.00	25	4346	1	0	0	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.56	0.48	0.67	303	1116310	158	8	144	6	330
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7485	21	2	16	3	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.33	0.34	12	12211	34	4	19	11	24
3JYX_3	5S_rRNA links to Rfam database...	0.29	0.30	0.30	8	6301	20	8	11	1	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.21	0.25	7	12218	25	5	16	4	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.77	0.70	0.86	32	6984	7	1	4	2	14
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.29	0.50	10	12383	10	0	10	0	25
3O58_2	5S_rRNA links to Rfam database...	0.82	0.76	0.88	29	7227	7	1	3	3	9
3PDR_A	ykoK links to Rfam database...	0.73	0.60	0.90	43	12832	7	0	5	2	29
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3W1K_J	tRNA-Sec links to Rfam database...	0.56	0.50	0.63	19	4156	11	2	9	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.47	0.27	0.82	14	14179	3	1	2	0	38
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.24	0.22	0.28	7	3461	18	3	15	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.40	0.28	0.59	10	5134	7	2	5	0	26
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	274
Total TN	1282286
Total FP	36
Total FP CONTRA	3
Total FP INCONS	31
Total FP COMP	2
Total FN	1367

Total Scores
MCC	0.385
Average MCC ± 95% Confidence Intervals	0.065 ± 0.076
Sensitivity	0.167
Positive Predictive Value	0.890
Nr of predictions	28

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.20	1.00	4	1536	0	0	0	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.59	0.40	0.88	251	1116480	36	3	31	2	382
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	36
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14196	0	0	0	0	52
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
