Overview

Metric	CentroidFold		Pknots
MCC	0.555	>	0.514
Average MCC ± 95% Confidence Intervals	0.523 ± 0.063	>	0.519 ± 0.065
Sensitivity	0.466	>	0.462
Positive Predictive Value	0.666	>	0.579
Total TP	1113	>	1102
Total TN	332125	>	331894
Total FP	621	<	886
Total FP CONTRA	69	<	105
Total FP INCONS	490	<	696
Total FP COMP	62	<	85
Total FN	1274	<	1285
P-value	3.56938820447e-08

^top

Performance plots

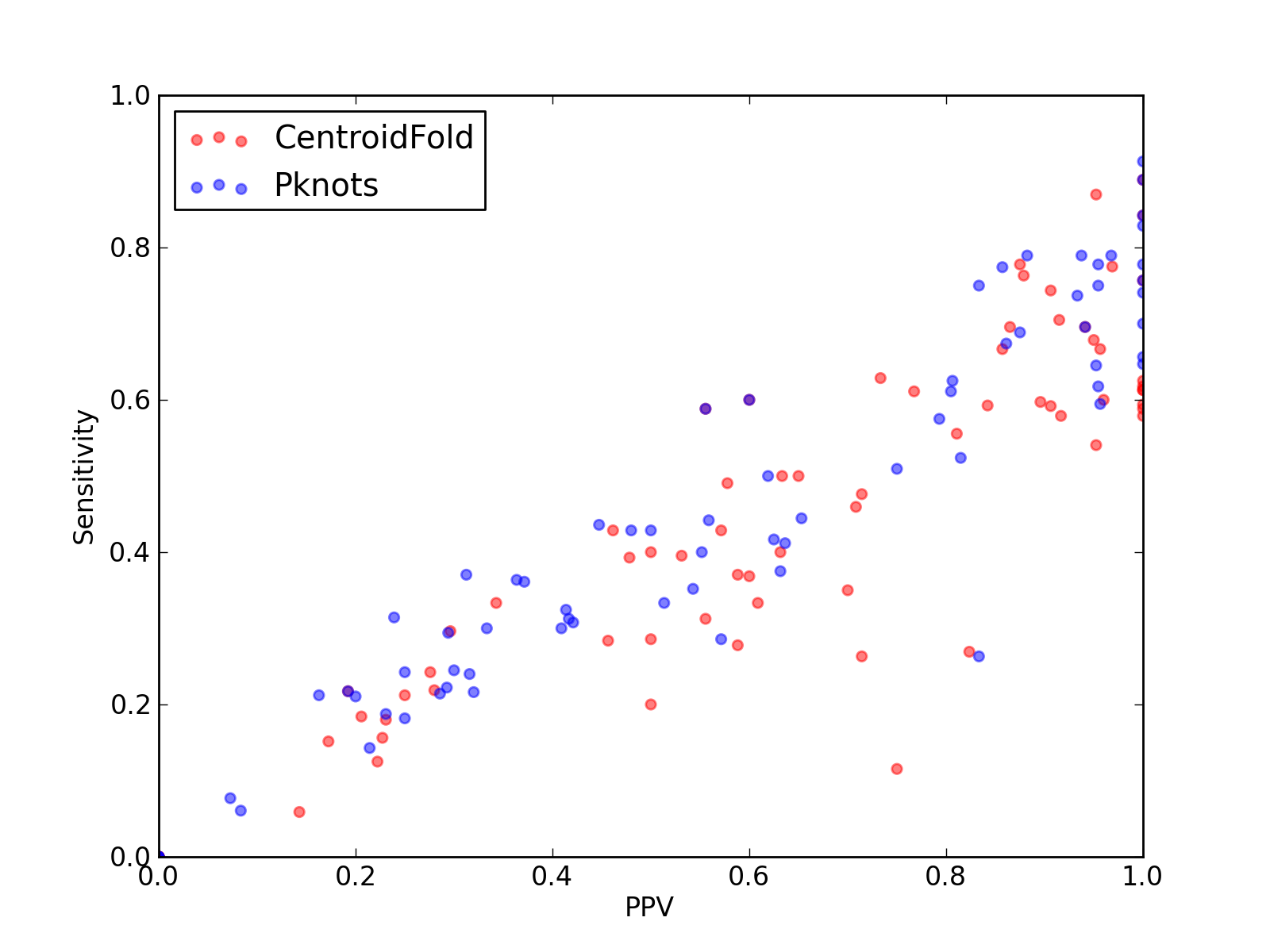

Comparison of performance of CentroidFold and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Pknots).

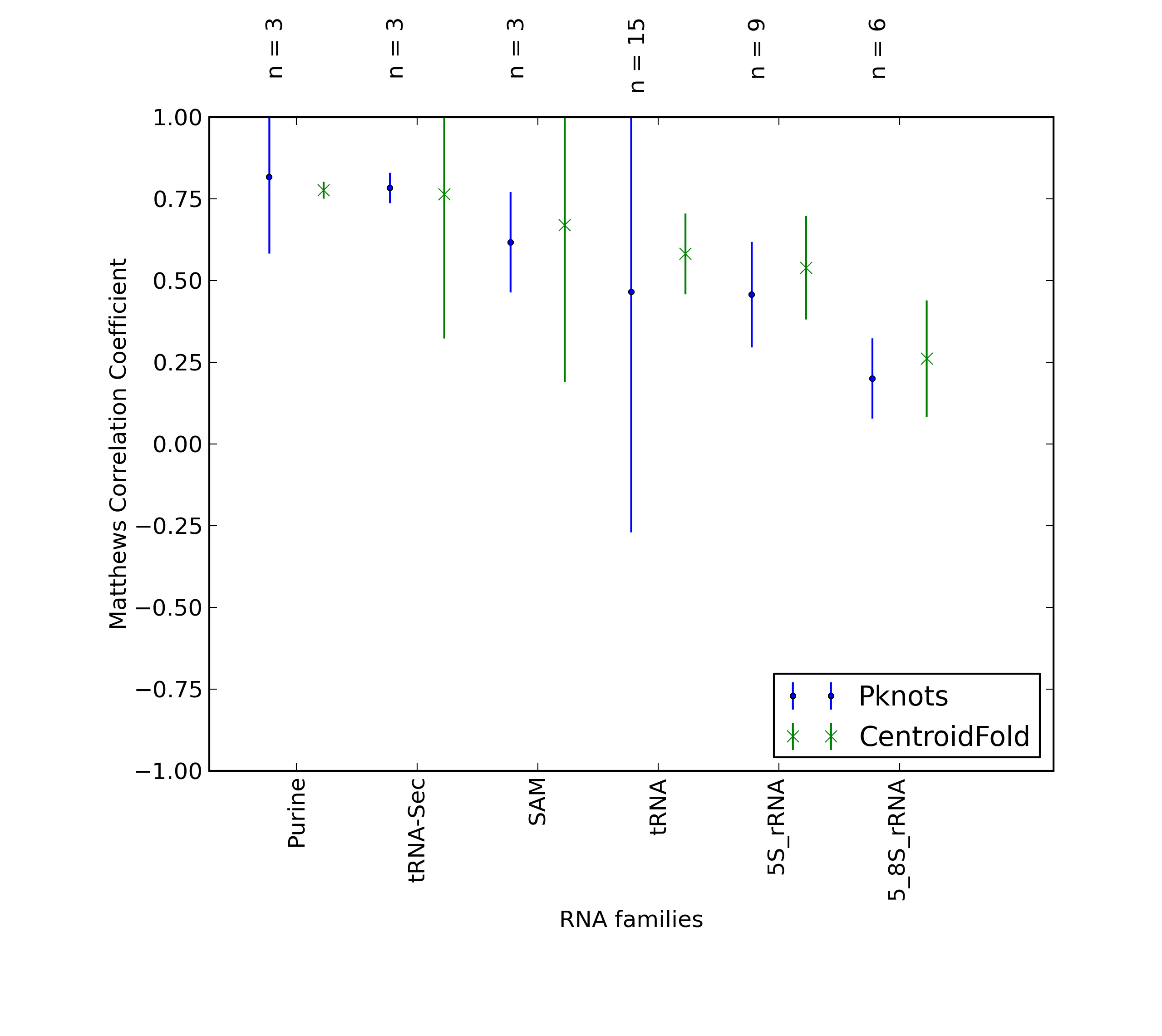

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Pknots).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	1113
Total TN	332125
Total FP	621
Total FP CONTRA	69
Total FP INCONS	490
Total FP COMP	62
Total FN	1274

Total Scores
MCC	0.555
Average MCC ± 95% Confidence Intervals	0.523 ± 0.063
Sensitivity	0.466
Positive Predictive Value	0.666
Nr of predictions	72

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.42	0.26	0.71	5	623	2	0	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.35	0.70	7	1530	3	1	2	0	13
2LKR_A	-	0.82	0.74	0.91	29	6073	4	0	3	1	10
2M58_A	-	0.09	0.06	0.14	1	1646	6	0	6	0	16
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_D	-	0.29	0.12	0.75	3	1949	1	0	1	0	23
2WW9_E	-	0.00	0.00	0.00	0	561	0	0	0	0	14
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.80	0.68	0.95	19	2906	3	0	1	2	9
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2ZZM_B	tRNA links to Rfam database...	0.18	0.16	0.23	5	3464	17	3	14	0	27
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.44	0.43	0.46	12	2900	14	2	12	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.79	0.63	1.00	25	4346	1	0	0	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.67	0.96	22	4255	1	0	1	0	11
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_2	-	0.25	0.24	0.28	8	6187	24	0	21	3	25
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_a	-	0.41	0.31	0.56	5	1119	4	2	2	0	11
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3J20_1	tRNA links to Rfam database...	0.91	0.87	0.95	20	2905	2	0	1	1	3
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.49	0.58	26	7830	21	0	19	2	27
3J3D_C	tRNA links to Rfam database...	0.49	0.43	0.57	12	2754	9	0	9	0	16
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7485	21	2	16	3	33
3J3E_7	5S_rRNA links to Rfam database...	0.46	0.37	0.59	20	7106	14	1	13	0	34
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.33	0.34	12	12211	34	4	19	11	24
3J3F_7	5S_rRNA links to Rfam database...	0.20	0.18	0.23	9	7221	30	1	29	0	41
3J3V_B	5S_rRNA links to Rfam database...	0.47	0.37	0.60	21	6986	14	1	13	0	36
3JYV_7	tRNA links to Rfam database...	0.77	0.59	1.00	19	2831	0	0	0	0	13
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.21	0.25	7	12218	25	5	16	4	26
3JYX_3	5S_rRNA links to Rfam database...	0.29	0.30	0.30	8	6301	20	8	11	1	19
3KTW_C	-	0.45	0.40	0.53	17	4528	16	2	13	1	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.80	0.70	0.91	43	9133	5	0	4	1	18
3NKB_B	-	0.57	0.50	0.65	13	1996	7	0	7	0	13
3NPB_A	SAM links to Rfam database...	0.77	0.70	0.86	32	6984	7	1	4	2	14
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.29	0.50	10	12383	10	0	10	0	25
3O58_2	5S_rRNA links to Rfam database...	0.82	0.76	0.88	29	7227	7	1	3	3	9
3PDR_A	ykoK links to Rfam database...	0.73	0.60	0.90	43	12832	7	0	5	2	29
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3U4M_B	-	0.57	0.46	0.71	17	3136	7	0	7	0	20
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3W1K_J	tRNA-Sec links to Rfam database...	0.56	0.50	0.63	19	4156	11	2	9	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_F	-	0.00	0.00	0.00	0	2619	9	2	7	0	12
3ZEX_G	-	0.36	0.28	0.46	21	16425	29	2	23	4	53
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.59	0.91	29	6989	3	0	3	0	20
3ZEX_H	-	0.19	0.18	0.21	7	9011	27	4	23	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.47	0.27	0.82	14	14179	3	1	2	0	38
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ATO_G	-	0.31	0.20	0.50	2	524	2	0	2	0	8
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FNJ_A	-	0.15	0.13	0.22	2	586	7	0	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.24	0.22	0.28	7	3461	18	3	15	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.40	0.28	0.59	10	5134	7	2	5	0	26
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12
4JRC_A	-	0.81	0.70	0.94	16	1523	1	0	1	0	7

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	1102
Total TN	331894
Total FP	886
Total FP CONTRA	105
Total FP INCONS	696
Total FP COMP	85
Total FN	1285

Total Scores
MCC	0.514
Average MCC ± 95% Confidence Intervals	0.519 ± 0.065
Sensitivity	0.462
Positive Predictive Value	0.579
Nr of predictions	72

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.67	0.58	0.79	23	5122	9	2	4	3	17
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.79	0.75	0.83	15	1522	3	1	2	0	5
2LKR_A	-	0.44	0.44	0.45	17	6067	22	4	17	1	22
2M58_A	-	0.51	0.41	0.64	7	1642	4	1	3	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_D	-	0.35	0.31	0.42	8	1934	11	2	9	0	18
2WW9_E	-	0.39	0.29	0.57	4	554	3	0	3	0	10
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.24	0.21	0.29	6	2905	16	1	14	1	22
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.20	0.19	0.23	6	3460	20	2	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.45	0.43	0.48	12	2901	13	2	11	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AM1_B	-	0.91	0.83	1.00	29	3211	0	0	0	0	6
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	2	0	0	2	7
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.55	16	4342	14	1	12	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.18	0.25	6	4254	18	1	17	0	27
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_2	-	0.36	0.36	0.36	12	6183	23	3	18	2	21
3J0L_g	-	-0.01	0.00	0.00	0	460	5	2	3	0	4
3J0L_a	-	0.35	0.31	0.42	5	1116	7	1	6	0	11
3J16_L	tRNA links to Rfam database...	0.34	0.30	0.41	9	2753	13	0	13	0	21
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.51	0.75	27	7839	12	0	9	3	26
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.08	2	7479	33	2	20	11	31
3J3E_7	5S_rRNA links to Rfam database...	0.43	0.35	0.54	19	7105	16	1	15	0	35
3J3F_8	5_8S_rRNA links to Rfam database...	0.36	0.36	0.37	13	12211	34	2	20	12	23
3J3F_7	5S_rRNA links to Rfam database...	0.27	0.24	0.32	12	7222	27	1	25	1	38
3J3V_B	5S_rRNA links to Rfam database...	0.41	0.33	0.51	19	6984	18	1	17	0	38
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.18	0.21	0.16	7	12203	41	13	23	5	26
3JYX_3	5S_rRNA links to Rfam database...	0.34	0.37	0.31	10	6296	24	9	13	2	17
3KTW_C	-	0.49	0.44	0.56	19	4526	16	2	13	1	24
3LA5_A	Purine links to Rfam database...	0.80	0.65	1.00	22	2463	0	0	0	0	12
3NDB_M	-	0.77	0.69	0.88	42	9132	7	1	5	1	19
3NKB_B	-	0.55	0.50	0.62	13	1995	8	0	8	0	13
3NPB_A	SAM links to Rfam database...	0.76	0.67	0.86	31	6985	8	1	4	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.27	0.31	0.24	11	12357	38	11	24	3	24
3O58_2	5S_rRNA links to Rfam database...	0.83	0.74	0.93	28	7230	3	0	2	1	10
3PDR_A	ykoK links to Rfam database...	0.54	0.44	0.65	32	12831	19	0	17	2	40
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.65	0.52	0.81	22	3889	5	0	5	0	20
3U4M_B	-	0.26	0.22	0.32	8	3135	17	0	17	0	29
3UZL_B	tRNA links to Rfam database...	0.75	0.59	0.96	22	3547	1	0	1	0	15
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.71	0.63	0.81	25	4722	7	0	6	1	15
3ZEX_F	-	0.00	0.00	0.00	0	2619	12	2	7	3	12
3ZEX_G	-	0.36	0.32	0.41	24	16413	37	3	31	3	50
3ZEX_D	5S_rRNA links to Rfam database...	0.27	0.24	0.30	12	6981	28	0	28	0	37
3ZEX_H	-	0.20	0.21	0.20	8	9005	32	5	27	0	30
3ZEX_C	5_8S_rRNA links to Rfam database...	0.07	0.08	0.07	4	14141	54	4	47	3	48
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.25	8	11749	36	3	21	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4AOB_A	SAM links to Rfam database...	0.17	0.14	0.21	6	4343	23	1	21	1	36
4ATO_G	-	0.30	0.30	0.33	3	519	6	2	4	0	7
4ENB_A	crcB links to Rfam database...	0.83	0.79	0.88	15	1258	2	1	1	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	-0.02	0.00	0.00	0	585	10	0	10	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.48	0.38	0.63	12	3467	7	0	7	0	20
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.42	0.63	15	5127	9	1	8	0	21
4JF2_A	preQ1-II links to Rfam database...	0.81	0.77	0.86	24	2822	4	3	1	0	7
4JRC_A	-	0.81	0.70	0.94	16	1523	1	1	0	0	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

2. Individual counts for CentroidFold [ download as .csv ]

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

2. Individual counts for Pknots [ download as .csv ]
