Overview

Metric	CentroidFold		Vsfold4
MCC	0.549	>	0.451
Average MCC ± 95% Confidence Intervals	0.536 ± 0.063	>	0.466 ± 0.062
Sensitivity	0.467	>	0.375
Positive Predictive Value	0.650	>	0.548
Total TP	1196	>	960
Total TN	459998	<	460088
Total FP	719	<	880
Total FP CONTRA	82	>	74
Total FP INCONS	563	<	717
Total FP COMP	74	<	89
Total FN	1365	<	1601
P-value	3.56938820447e-08

^top

Performance plots

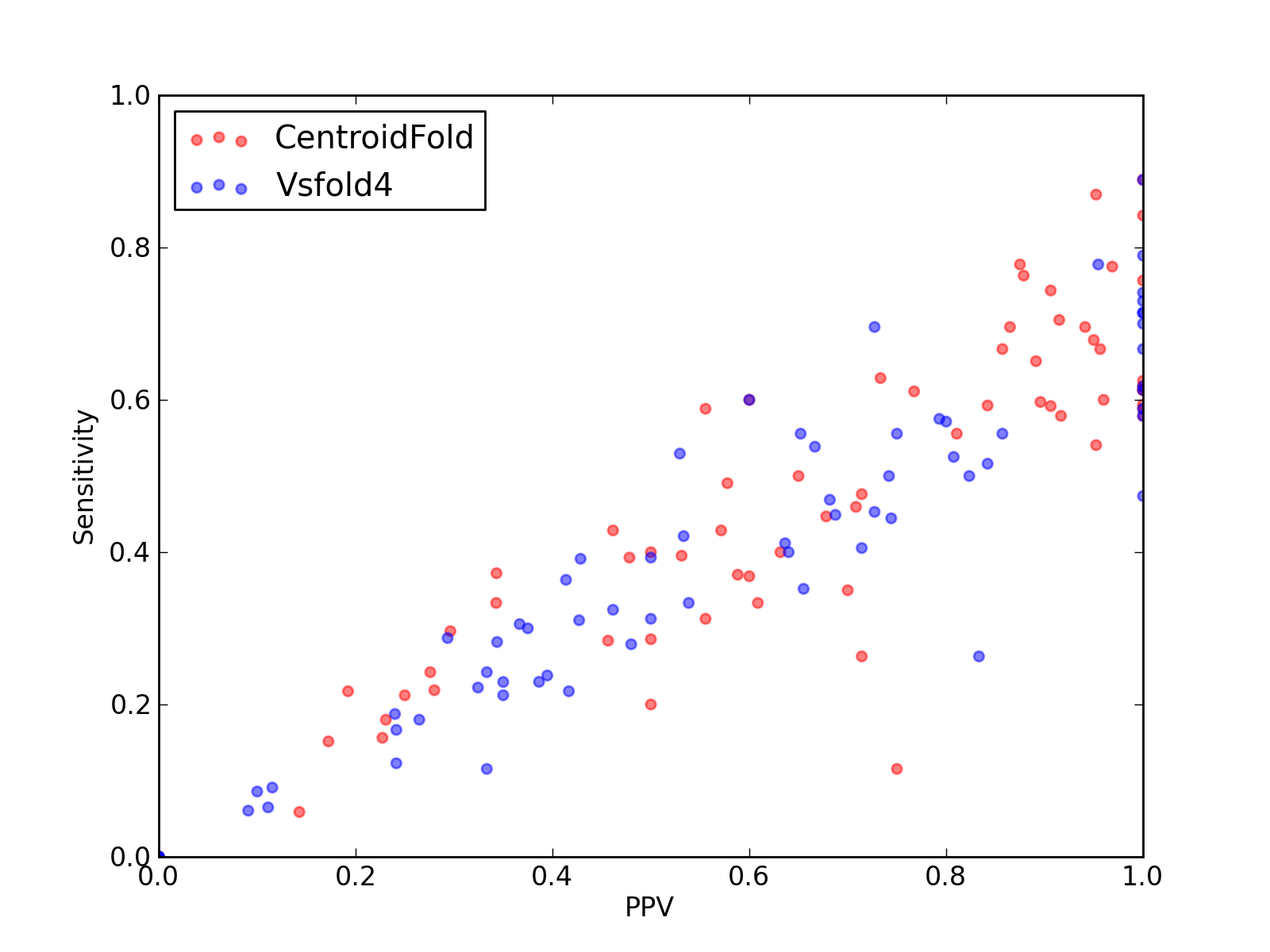

Comparison of performance of CentroidFold and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Vsfold4).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	1196
Total TN	459998
Total FP	719
Total FP CONTRA	82
Total FP INCONS	563
Total FP COMP	74
Total FN	1365

Total Scores
MCC	0.549
Average MCC ± 95% Confidence Intervals	0.536 ± 0.063
Sensitivity	0.467
Positive Predictive Value	0.650
Nr of predictions	70

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.42	0.26	0.71	5	623	2	0	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.35	0.70	7	1530	3	1	2	0	13
2LKR_A	-	0.82	0.74	0.91	29	6073	4	0	3	1	10
2M58_A	-	0.09	0.06	0.14	1	1646	6	0	6	0	16
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.29	0.12	0.75	3	1949	1	0	1	0	23
2WW9_E	-	0.00	0.00	0.00	0	561	0	0	0	0	14
2WWQ_V	tRNA links to Rfam database...	0.80	0.68	0.95	19	2906	3	0	1	2	9
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2ZZM_B	tRNA links to Rfam database...	0.18	0.16	0.23	5	3464	17	3	14	0	27
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.44	0.43	0.46	12	2900	14	2	12	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.79	0.63	1.00	25	4346	1	0	0	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.67	0.96	22	4255	1	0	1	0	11
3IYQ_A	tmRNA links to Rfam database...	0.36	0.37	0.34	35	60624	71	17	50	4	59
3IZ4_A	tmRNA links to Rfam database...	0.55	0.45	0.68	59	70789	33	4	24	5	73
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J0L_2	-	0.25	0.24	0.28	8	6187	24	0	21	3	25
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_a	-	0.41	0.31	0.56	5	1119	4	2	2	0	11
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3J20_1	tRNA links to Rfam database...	0.91	0.87	0.95	20	2905	2	0	1	1	3
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J2C_O	-	0.76	0.65	0.89	41	10250	6	0	5	1	22
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.49	0.58	26	7830	21	0	19	2	27
3J3D_C	tRNA links to Rfam database...	0.49	0.43	0.57	12	2754	9	0	9	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.46	0.37	0.59	20	7106	14	1	13	0	34
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7485	21	2	16	3	33
3J3F_7	5S_rRNA links to Rfam database...	0.20	0.18	0.23	9	7221	30	1	29	0	41
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.33	0.34	12	12211	34	4	19	11	24
3J3V_B	5S_rRNA links to Rfam database...	0.47	0.37	0.60	21	6986	14	1	13	0	36
3JYV_7	tRNA links to Rfam database...	0.77	0.59	1.00	19	2831	0	0	0	0	13
3JYX_3	5S_rRNA links to Rfam database...	0.29	0.30	0.30	8	6301	20	8	11	1	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.21	0.25	7	12218	25	5	16	4	26
3KTW_C	-	0.45	0.40	0.53	17	4528	16	2	13	1	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.80	0.70	0.91	43	9133	5	0	4	1	18
3NKB_B	-	0.57	0.50	0.65	13	1996	7	0	7	0	13
3NPB_A	SAM links to Rfam database...	0.77	0.70	0.86	32	6984	7	1	4	2	14
3O58_2	5S_rRNA links to Rfam database...	0.82	0.76	0.88	29	7227	7	1	3	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.29	0.50	10	12383	10	0	10	0	25
3PDR_A	ykoK links to Rfam database...	0.73	0.60	0.90	43	12832	7	0	5	2	29
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3U4M_B	-	0.57	0.46	0.71	17	3136	7	0	7	0	20
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_E	-	0.00	0.00	0.00	0	21895	52	3	47	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.59	0.91	29	6989	3	0	3	0	20
3ZEX_G	-	0.36	0.28	0.46	21	16425	29	2	23	4	53
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ATO_G	-	0.31	0.20	0.50	2	524	2	0	2	0	8
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.24	0.22	0.28	7	3461	18	3	15	0	25
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12
4JRC_A	-	0.81	0.70	0.94	16	1523	1	0	1	0	7

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	960
Total TN	460088
Total FP	880
Total FP CONTRA	74
Total FP INCONS	717
Total FP COMP	89
Total FN	1601

Total Scores
MCC	0.451
Average MCC ± 95% Confidence Intervals	0.466 ± 0.062
Sensitivity	0.375
Positive Predictive Value	0.548
Nr of predictions	70

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.65	0.53	0.81	21	5125	7	0	5	2	19
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2LKR_A	-	0.31	0.28	0.34	11	6073	21	3	18	0	28
2M58_A	-	-0.01	0.00	0.00	0	1647	6	0	6	0	17
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.19	0.12	0.33	3	1944	6	0	6	0	23
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.24	6	3461	19	0	19	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3ADB_C	-	0.89	0.79	1.00	30	4156	0	0	0	0	8
3AKZ_H	tRNA links to Rfam database...	0.67	0.57	0.80	16	2681	5	1	3	1	12
3AM1_B	-	0.84	0.71	1.00	25	3215	0	0	0	0	10
3AMU_B	tRNA links to Rfam database...	0.64	0.56	0.75	15	2983	7	0	5	2	12
3GX2_A	SAM links to Rfam database...	0.50	0.40	0.64	16	4346	10	0	9	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.27	0.21	0.35	7	4258	13	1	12	0	26
3IYQ_A	tmRNA links to Rfam database...	0.29	0.29	0.29	27	60634	71	13	52	6	67
3IZ4_A	tmRNA links to Rfam database...	0.36	0.31	0.43	41	70780	59	7	48	4	91
3IZF_C	5S_rRNA links to Rfam database...	0.69	0.56	0.86	30	6868	5	0	5	0	24
3J0L_2	-	0.38	0.36	0.41	12	6187	18	3	14	1	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	0.51	0.41	0.64	7	1214	4	0	4	0	10
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2C_O	-	0.30	0.24	0.39	15	10258	24	0	23	1	48
3J2L_3	5S_rRNA links to Rfam database...	0.57	0.45	0.73	24	7842	12	1	8	3	29
3J3D_C	tRNA links to Rfam database...	0.44	0.39	0.50	11	2753	11	1	10	0	17
3J3E_7	5S_rRNA links to Rfam database...	0.48	0.35	0.66	19	7111	10	0	10	0	35
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.09	2	7481	32	2	18	12	31
3J3F_7	5S_rRNA links to Rfam database...	0.21	0.18	0.26	9	7226	25	0	25	0	41
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.31	0.37	11	12216	27	4	15	8	25
3J3V_B	5S_rRNA links to Rfam database...	0.17	0.12	0.24	7	6992	22	1	21	0	50
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.56	0.65	15	6305	11	4	4	3	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.10	0.09	0.12	3	12220	33	2	21	10	30
3KTW_C	-	0.36	0.28	0.48	12	4535	13	3	10	0	31
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.28	0.23	0.35	14	9140	26	0	26	0	47
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.61	0.50	0.74	23	6990	9	0	8	1	23
3O58_2	5S_rRNA links to Rfam database...	0.47	0.42	0.53	16	7230	16	3	11	2	22
3O58_3	5_8S_rRNA links to Rfam database...	0.09	0.09	0.10	3	12373	35	5	22	8	32
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.19	0.17	0.24	7	3887	22	1	21	0	35
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.53	0.41	0.71	15	3549	6	1	5	0	22
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.58	0.79	23	4724	7	0	6	1	17
3ZEX_E	-	0.08	0.06	0.11	5	21900	40	1	39	0	72
3ZEX_D	5S_rRNA links to Rfam database...	0.55	0.45	0.69	22	6989	10	0	10	0	27
3ZEX_G	-	0.30	0.23	0.39	17	16427	27	2	25	0	57
3ZND_W	tRNA links to Rfam database...	0.41	0.39	0.43	9	2982	14	2	10	2	14
4A1C_2	5_8S_rRNA links to Rfam database...	0.28	0.24	0.33	8	11757	28	0	16	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1317	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4JF2_A	preQ1-II links to Rfam database...	0.66	0.52	0.84	16	2831	3	0	3	0	15
4JRC_A	-	0.29	0.22	0.42	5	1528	7	0	7	0	18

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
