Overview

Metric	CentroidHomfold‑LAST		CentroidAlifold(seed)
MCC	0.588	>	0.566
Average MCC ± 95% Confidence Intervals	0.586 ± 0.101	>	0.526 ± 0.081
Sensitivity	0.495	>	0.341
Positive Predictive Value	0.704	<	0.944
Total TP	461	>	318
Total TN	126113	<	126431
Total FP	223	>	27
Total FP CONTRA	21	>	2
Total FP INCONS	173	>	17
Total FP COMP	29	>	8
Total FN	471	<	614
P-value	5.23657817852e-08

^top

Performance plots

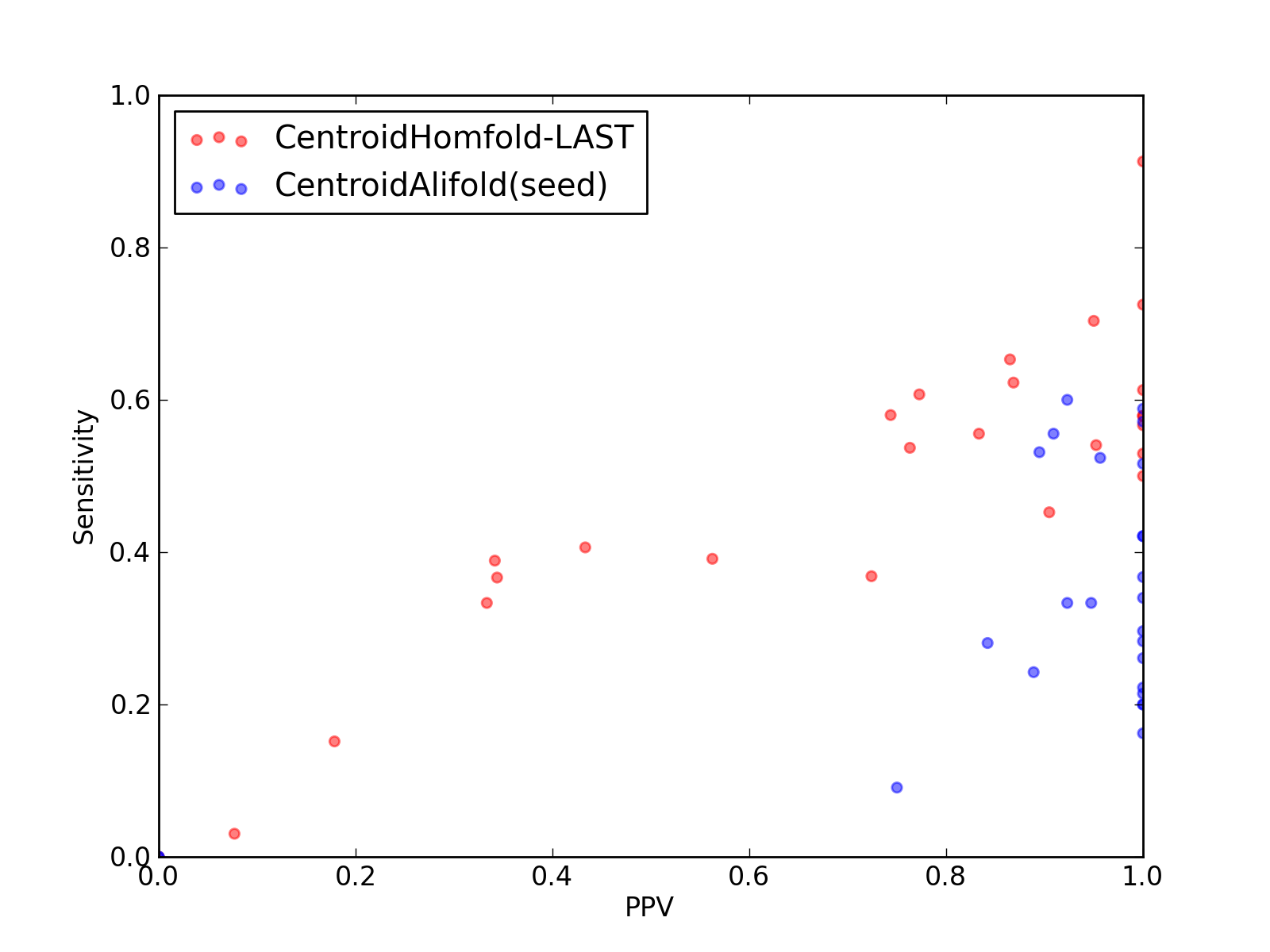

Comparison of performance of CentroidHomfold-LAST and CentroidAlifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CentroidAlifold(seed)).

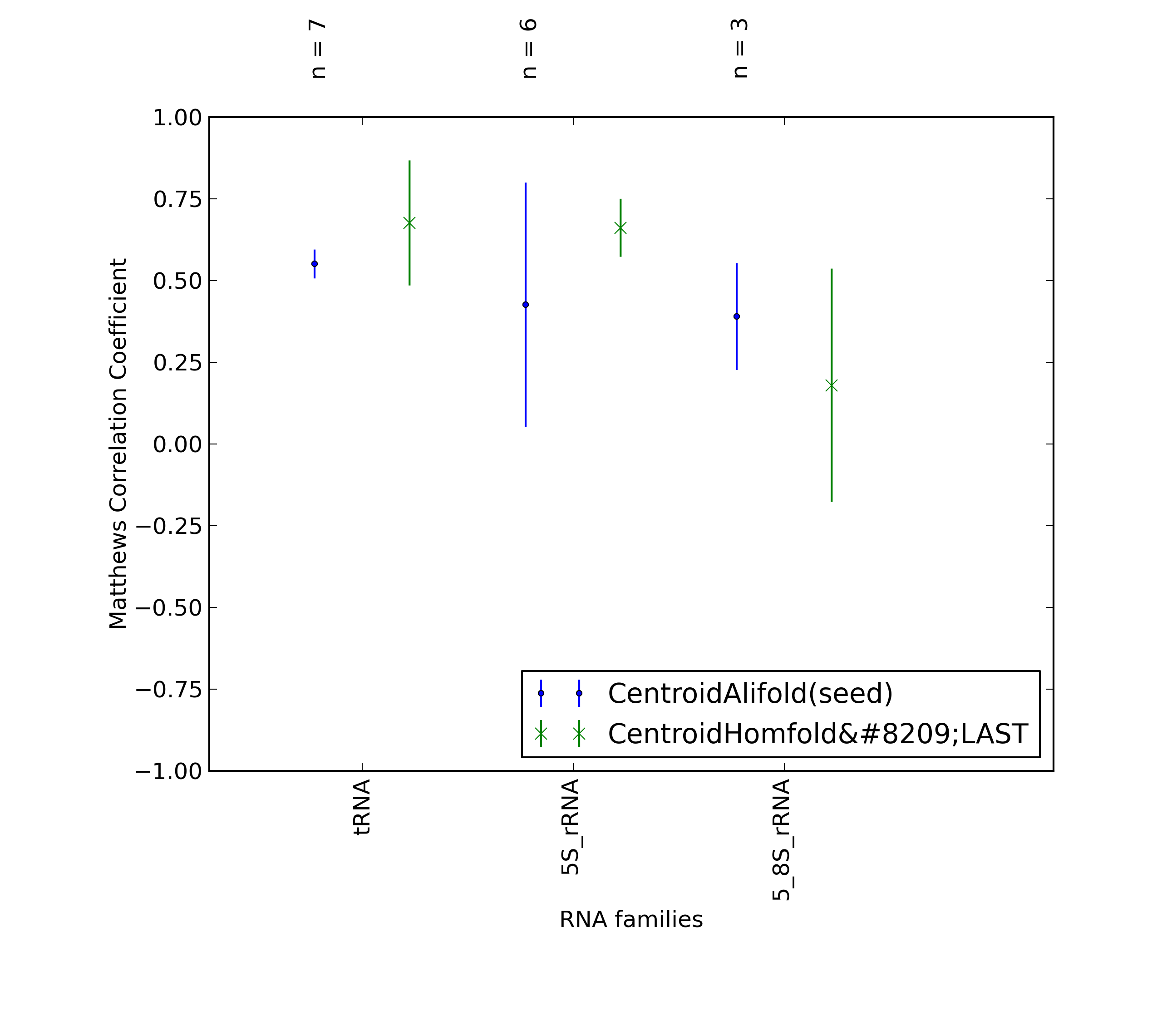

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CentroidAlifold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and CentroidAlifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CentroidAlifold(seed)).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	461
Total TN	126113
Total FP	223
Total FP CONTRA	21
Total FP INCONS	173
Total FP COMP	29
Total FN	471

Total Scores
MCC	0.588
Average MCC ± 95% Confidence Intervals	0.586 ± 0.101
Sensitivity	0.495
Positive Predictive Value	0.704
Nr of predictions	26

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1529	11	0	11	0	20
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_0	tRNA links to Rfam database...	0.35	0.37	0.34	11	2818	22	3	18	1	19
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.73	0.62	0.87	33	7837	7	0	5	2	20
3J3D_C	tRNA links to Rfam database...	0.68	0.61	0.77	17	2753	5	0	5	0	11
3J3E_8	5_8S_rRNA links to Rfam database...	0.05	0.03	0.08	1	7490	16	1	11	4	32
3J3E_7	5S_rRNA links to Rfam database...	0.64	0.54	0.76	29	7102	9	0	9	0	25
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.33	12	12210	33	4	20	9	24
3J3F_7	5S_rRNA links to Rfam database...	0.65	0.58	0.74	29	7221	10	1	9	0	21
3J3V_B	5S_rRNA links to Rfam database...	0.51	0.37	0.72	21	6992	8	1	7	0	36
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.64	0.45	0.90	19	3895	2	0	2	0	23
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	29	4724	1	0	0	1	11
3ZEX_D	5S_rRNA links to Rfam database...	0.75	0.65	0.86	32	6984	5	0	5	0	17
3ZND_W	tRNA links to Rfam database...	0.47	0.39	0.56	9	2987	10	0	7	3	14
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	7104	6	0	6	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	11753	29	5	18	6	28
4AOB_A	SAM links to Rfam database...	0.71	0.50	1.00	21	4350	1	0	0	1	21
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.41	0.43	13	3456	17	3	14	0	19
4FRN_A	AdoCbl-variant links to Rfam database...	0.36	0.39	0.34	14	5110	27	3	24	0	22
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Performance of CentroidAlifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	318
Total TN	126431
Total FP	27
Total FP CONTRA	2
Total FP INCONS	17
Total FP COMP	8
Total FN	614

Total Scores
MCC	0.566
Average MCC ± 95% Confidence Intervals	0.526 ± 0.081
Sensitivity	0.341
Positive Predictive Value	0.944
Nr of predictions	26

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
3AMU_B	tRNA links to Rfam database...	0.47	0.22	1.00	6	2997	0	0	0	0	21
3J16_L	tRNA links to Rfam database...	0.45	0.20	1.00	6	2769	0	0	0	0	24
3J20_0	tRNA links to Rfam database...	0.45	0.20	1.00	6	2844	0	0	0	0	24
3J20_1	tRNA links to Rfam database...	0.51	0.26	1.00	6	2920	0	0	0	0	17
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.28	1.00	15	7860	2	0	0	2	38
3J3D_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2769	0	0	0	0	22
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.09	0.75	3	7499	1	0	1	0	30
3J3E_7	5S_rRNA links to Rfam database...	0.56	0.33	0.95	18	7121	1	0	1	0	36
3J3F_8	5_8S_rRNA links to Rfam database...	0.55	0.33	0.92	12	12233	1	0	1	0	24
3J3F_7	5S_rRNA links to Rfam database...	0.58	0.34	1.00	17	7243	1	0	0	1	33
3J3V_B	5S_rRNA links to Rfam database...	0.48	0.28	0.84	16	7002	3	0	3	0	41
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
3UZL_B	tRNA links to Rfam database...	0.40	0.16	1.00	6	3564	0	0	0	0	31
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.60	0.92	24	4727	3	0	2	1	16
3ZEX_D	5S_rRNA links to Rfam database...	0.60	0.37	1.00	18	7003	0	0	0	0	31
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	2998	6	0	5	1	23
4A1C_3	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	7124	0	0	0	0	38
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1318	0	0	0	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.53	0.89	17	3467	2	1	1	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.56	0.91	20	5129	2	1	1	0	16
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
