Overview

Metric	Cylofold		RSpredict(seed)
MCC	0.618	>	0.137
Average MCC ± 95% Confidence Intervals	0.635 ± 0.080	>	0.097 ± 0.079
Sensitivity	0.519	>	0.056
Positive Predictive Value	0.741	>	0.348
Total TP	430	>	46
Total TN	106330	<	106778
Total FP	172	>	88
Total FP CONTRA	19	>	1
Total FP INCONS	131	>	85
Total FP COMP	22	>	2
Total FN	398	<	782
P-value	5.1503931209e-08

^top

Performance plots

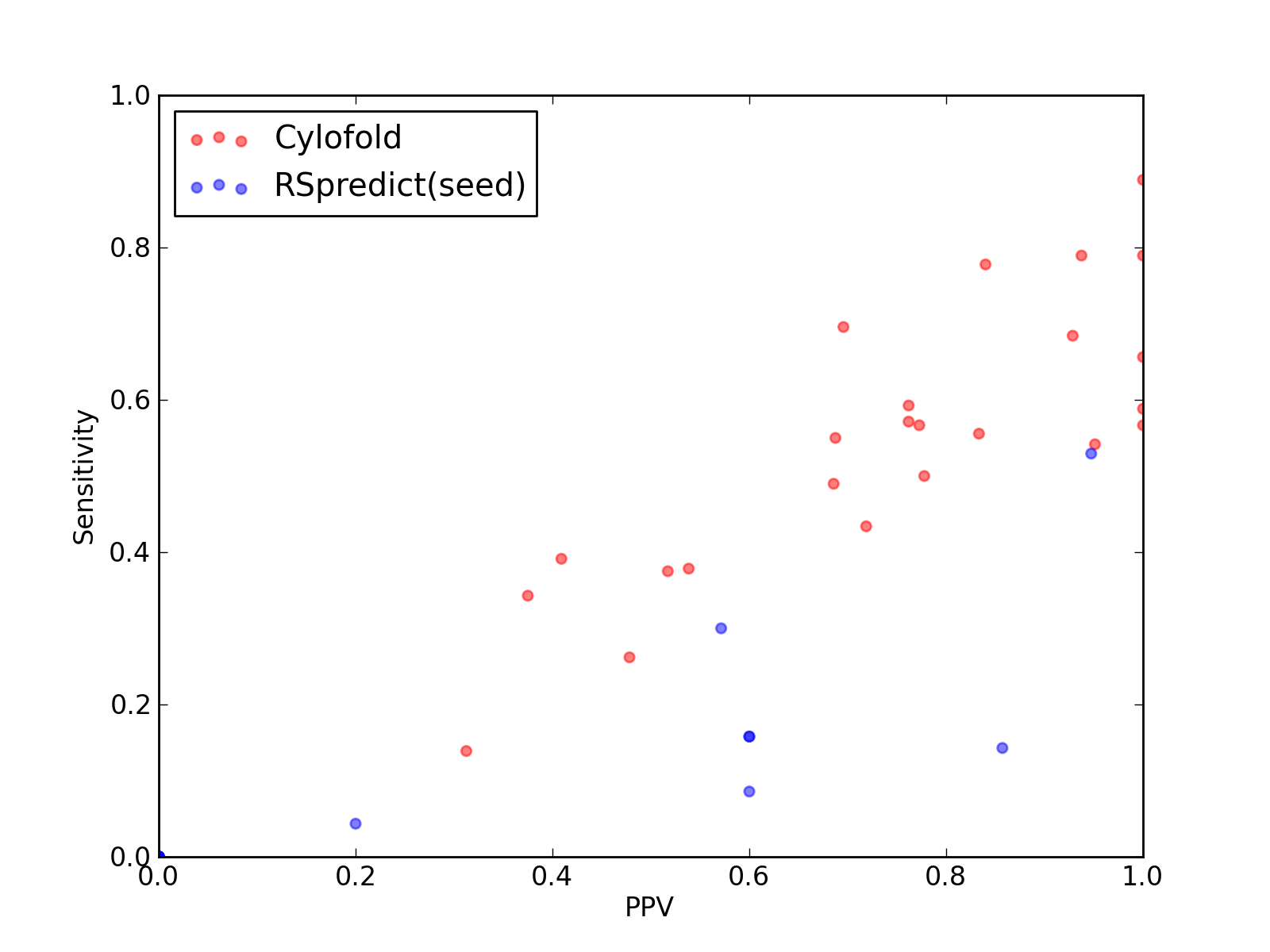

Comparison of performance of Cylofold and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Cylofold and RSpredict(seed)).

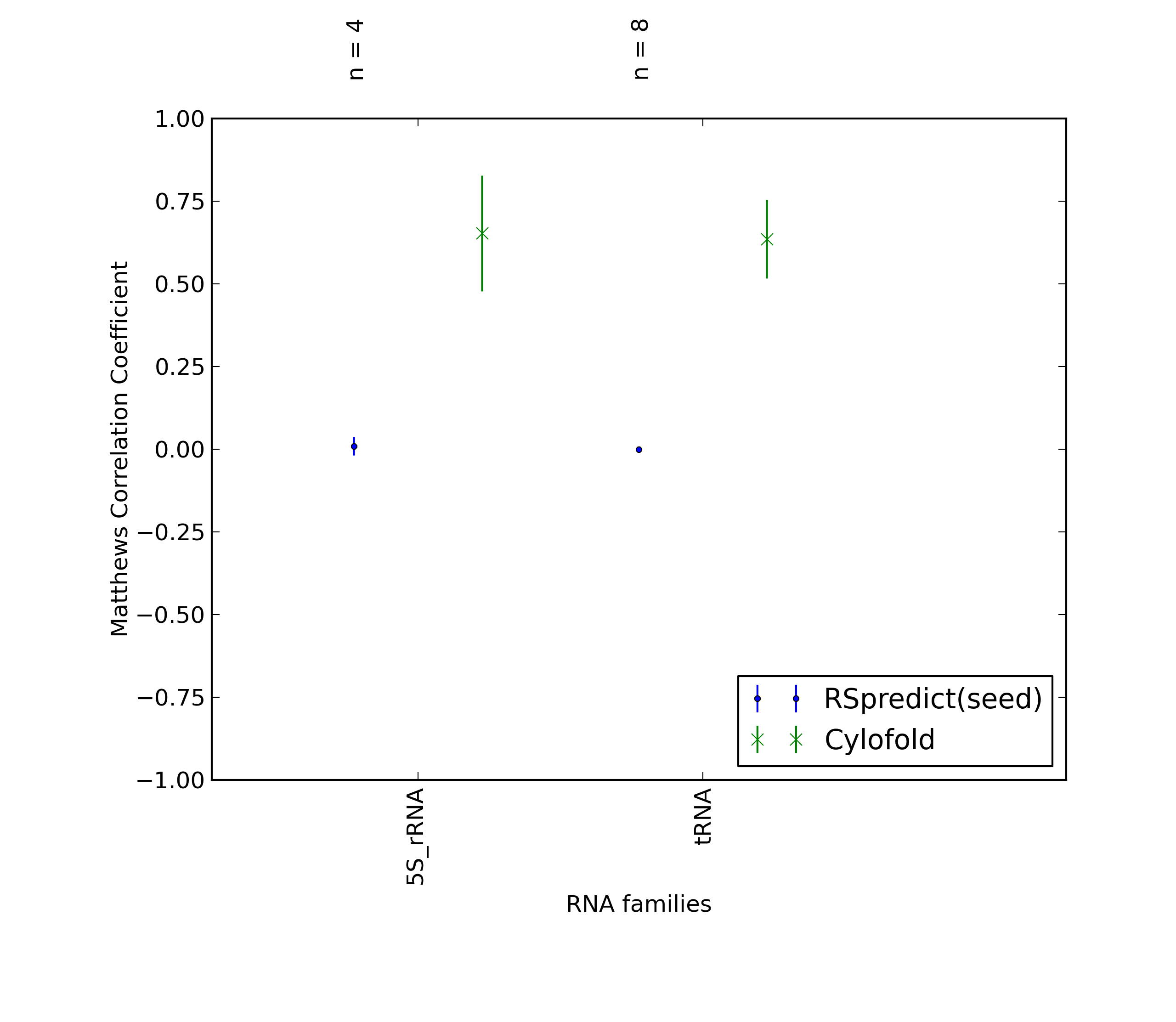

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Cylofold and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Cylofold and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Cylofold and RSpredict(seed)).

^top

Performance of Cylofold - scored higher in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	430
Total TN	106330
Total FP	172
Total FP CONTRA	19
Total FP INCONS	131
Total FP COMP	22
Total FN	398

Total Scores
MCC	0.618
Average MCC ± 95% Confidence Intervals	0.635 ± 0.080
Sensitivity	0.519
Positive Predictive Value	0.741
Nr of predictions	24

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2XQD_Y	tRNA links to Rfam database...	0.81	0.78	0.84	21	2825	4	4	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.66	0.57	0.76	16	2680	6	0	5	1	12
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	6867	6	0	6	0	24
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.69	0.70	0.70	16	2903	7	2	5	0	7
3J20_0	tRNA links to Rfam database...	0.66	0.57	0.77	17	2828	6	1	4	1	13
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3O58_2	5S_rRNA links to Rfam database...	0.80	0.68	0.93	26	7232	3	0	2	1	12
3O58_3	5_8S_rRNA links to Rfam database...	0.36	0.34	0.38	12	12371	29	5	15	9	23
3PDR_A	ykoK links to Rfam database...	0.72	0.54	0.95	39	12839	4	0	2	2	33
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.62	0.50	0.78	21	3889	6	0	6	0	21
3UZL_B	tRNA links to Rfam database...	0.45	0.38	0.54	14	3544	12	1	11	0	23
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.52	15	4724	15	0	14	1	25
3ZEX_D	5S_rRNA links to Rfam database...	0.58	0.49	0.69	24	6986	11	0	11	0	25
3ZND_W	tRNA links to Rfam database...	0.40	0.39	0.41	9	2981	15	2	11	2	14
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4FRN_A	AdoCbl-variant links to Rfam database...	0.20	0.14	0.31	5	5135	11	2	9	0	31

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	46
Total TN	106778
Total FP	88
Total FP CONTRA	1
Total FP INCONS	85
Total FP COMP	2
Total FN	782

Total Scores
MCC	0.137
Average MCC ± 95% Confidence Intervals	0.097 ± 0.079
Sensitivity	0.056
Positive Predictive Value	0.348
Nr of predictions	24

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	860	1	0	1	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2699	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3J20_1	tRNA links to Rfam database...	0.09	0.04	0.20	1	2921	4	0	4	0	22
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	30
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7870	5	0	5	0	53
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3564	6	0	6	0	37
3W3S_B	tRNA-Sec links to Rfam database...	0.41	0.30	0.57	12	4732	10	1	8	1	28
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7019	2	0	2	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3000	4	0	3	1	23
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5148	3	0	3	0	36

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
