Overview

Metric	IPknot		RSpredict(seed)
MCC	0.599	>	0.395
Average MCC ± 95% Confidence Intervals	0.587 ± 0.089	>	0.124 ± 0.083
Sensitivity	0.501	>	0.246
Positive Predictive Value	0.717	>	0.636
Total TP	800	>	393
Total TN	1253778	<	1254276
Total FP	357	>	232
Total FP CONTRA	28	>	15
Total FP INCONS	288	>	210
Total FP COMP	41	>	7
Total FN	798	<	1205
P-value	3.56938820447e-08

^top

Performance plots

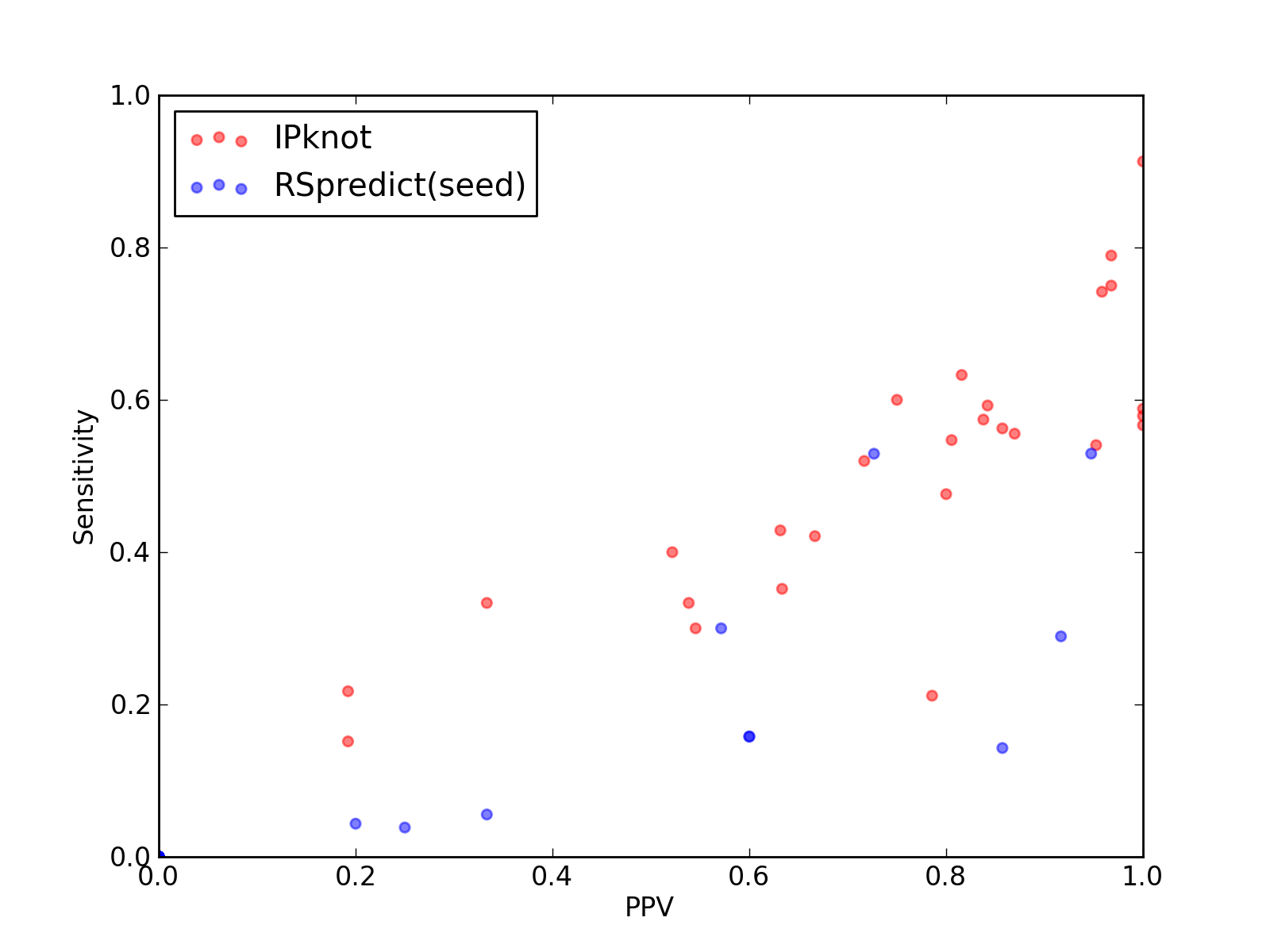

Comparison of performance of IPknot and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and RSpredict(seed)).

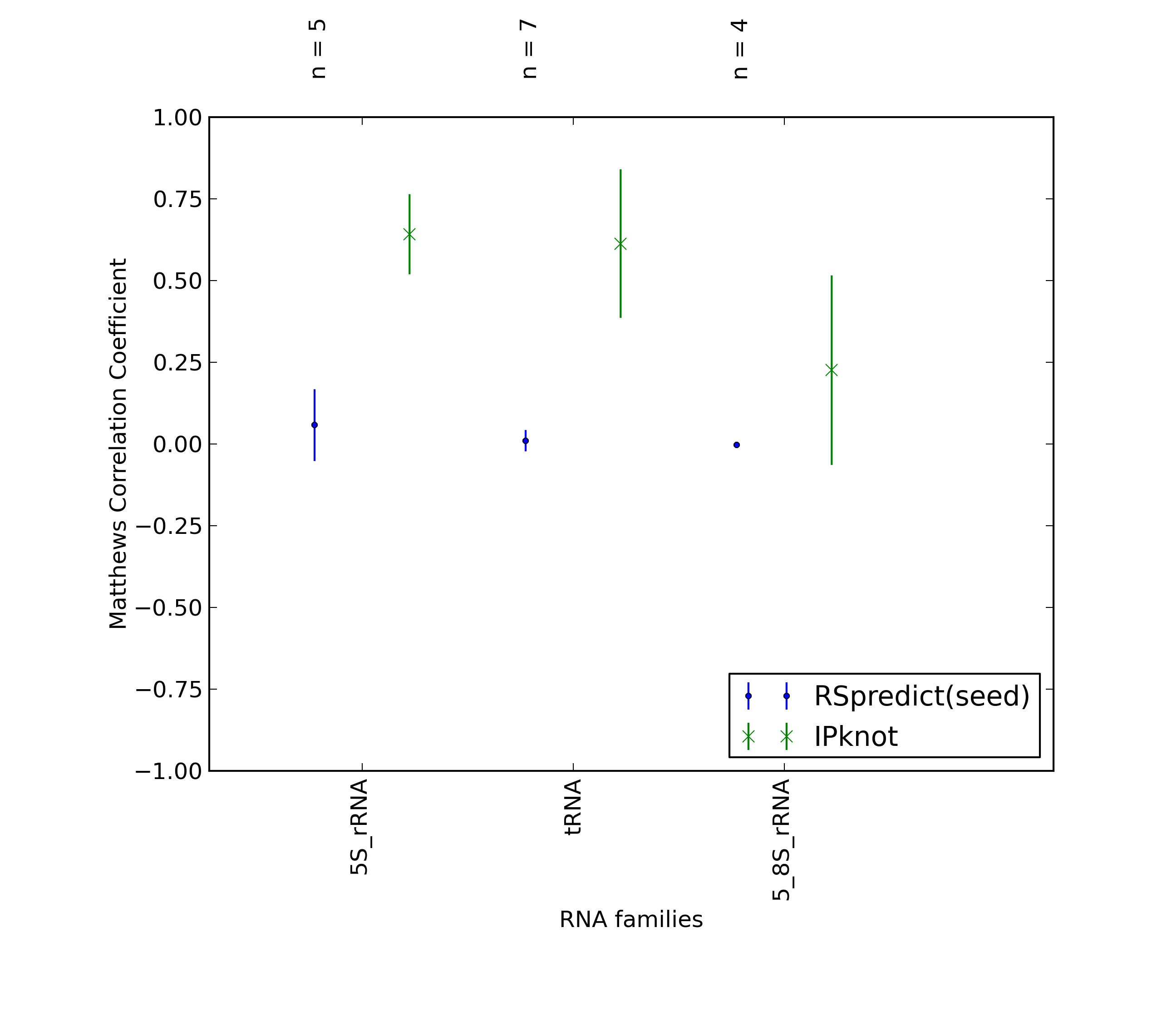

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and RSpredict(seed)).

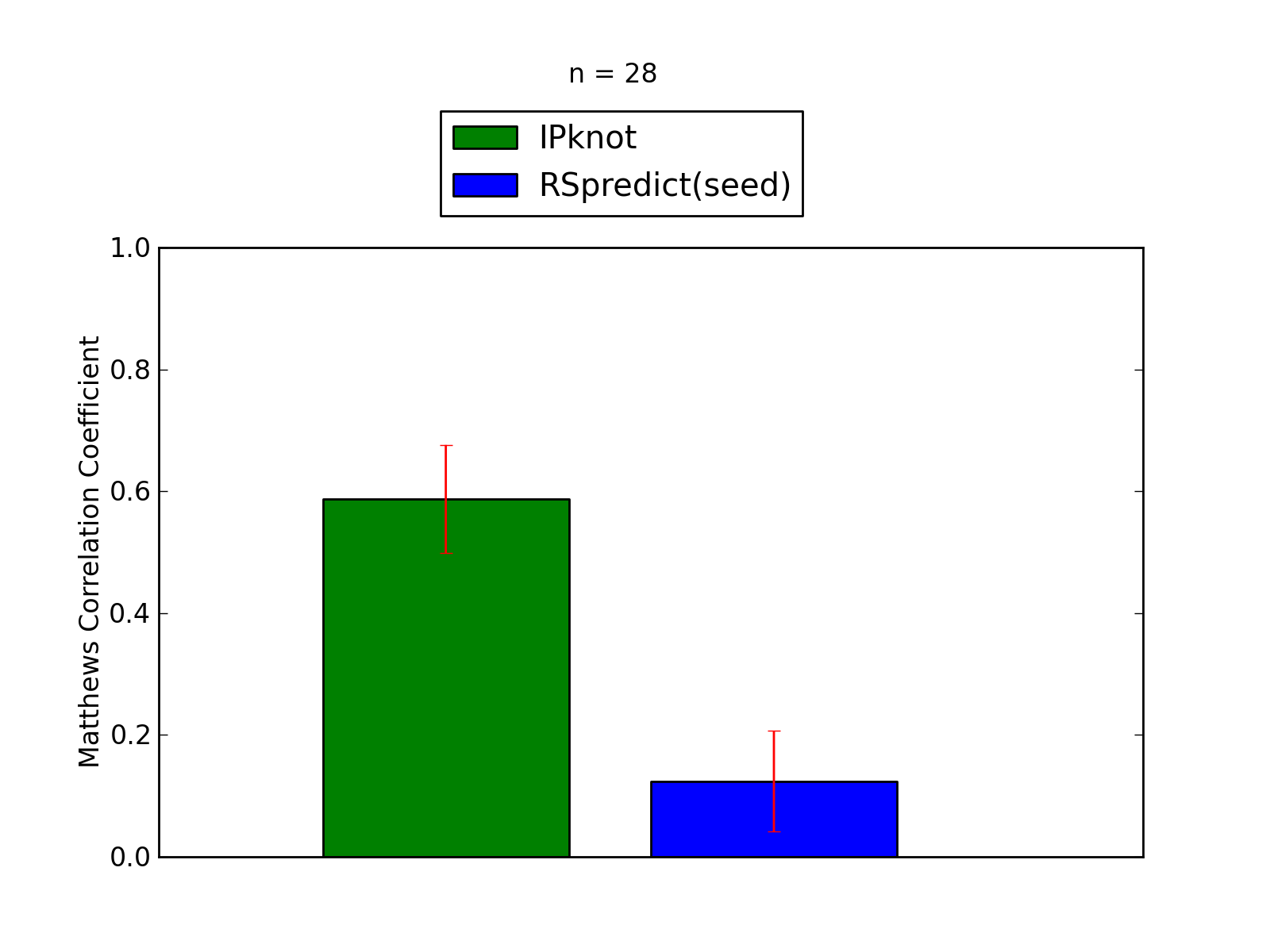

Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and RSpredict(seed)).

^top

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	800
Total TN	1253778
Total FP	357
Total FP CONTRA	28
Total FP INCONS	288
Total FP COMP	41
Total FN	798

Total Scores
MCC	0.599
Average MCC ± 95% Confidence Intervals	0.587 ± 0.089
Sensitivity	0.501
Positive Predictive Value	0.717
Nr of predictions	28

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.40	0.30	0.55	6	1529	5	1	4	0	14
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.61	0.52	0.72	329	1116306	135	8	122	5	304
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2L_3	5S_rRNA links to Rfam database...	0.66	0.55	0.81	29	7839	9	0	7	2	24
3J3D_C	tRNA links to Rfam database...	0.52	0.43	0.63	12	2756	7	0	7	0	16
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7484	25	2	17	6	33
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.35	0.63	19	7110	11	0	11	0	35
3J3F_7	5S_rRNA links to Rfam database...	0.67	0.60	0.75	30	7220	10	1	9	0	20
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.33	12	12210	37	4	20	13	24
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.48	0.80	20	3891	5	0	5	0	22
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.75	0.97	30	4722	2	0	1	1	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.21	0.79	11	14182	6	1	2	3	41
3ZEX_D	5S_rRNA links to Rfam database...	0.72	0.63	0.82	31	6983	7	0	7	0	18
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	1	5	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	11755	26	4	17	5	28
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.52	0.42	0.67	8	1314	4	0	4	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.56	0.86	18	3465	3	1	2	0	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.69	0.56	0.87	20	5128	3	1	2	0	16
4JF2_A	preQ1-II links to Rfam database...	0.84	0.74	0.96	23	2826	1	1	0	0	8

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	393
Total TN	1254276
Total FP	232
Total FP CONTRA	15
Total FP INCONS	210
Total FP COMP	7
Total FN	1205

Total Scores
MCC	0.395
Average MCC ± 95% Confidence Intervals	0.124 ± 0.083
Sensitivity	0.246
Positive Predictive Value	0.636
Nr of predictions	28

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3J20_1	tRNA links to Rfam database...	0.09	0.04	0.20	1	2921	4	0	4	0	22
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.62	0.53	0.73	335	1116304	129	9	117	3	298
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	30
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7870	5	0	5	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2771	4	1	3	0	28
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7132	8	0	8	0	54
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7256	4	0	4	0	50
3J3F_8	5_8S_rRNA links to Rfam database...	0.14	0.06	0.33	2	12240	5	1	3	1	34
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3564	6	0	6	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.51	0.29	0.92	11	4174	1	0	1	0	27
3W3S_B	tRNA-Sec links to Rfam database...	0.41	0.30	0.57	12	4732	10	1	8	1	28
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.04	0.25	2	14188	6	1	5	0	50
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7019	2	0	2	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3000	4	0	3	1	23
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5148	3	0	3	0	36
4JF2_A	preQ1-II links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	31

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
