Overview

Metric	MXScarna(seed)		CentroidHomfold‑LAST
MCC	0.620	>	0.584
Average MCC ± 95% Confidence Intervals	0.586 ± 0.091	>	0.582 ± 0.105
Sensitivity	0.503	>	0.491
Positive Predictive Value	0.770	>	0.701
Total TP	455	>	444
Total TN	123402	>	123360
Total FP	173	<	218
Total FP CONTRA	18	<	21
Total FP INCONS	118	<	168
Total FP COMP	37	>	29
Total FN	449	<	460
P-value	5.10776592382e-08

^top

Performance plots

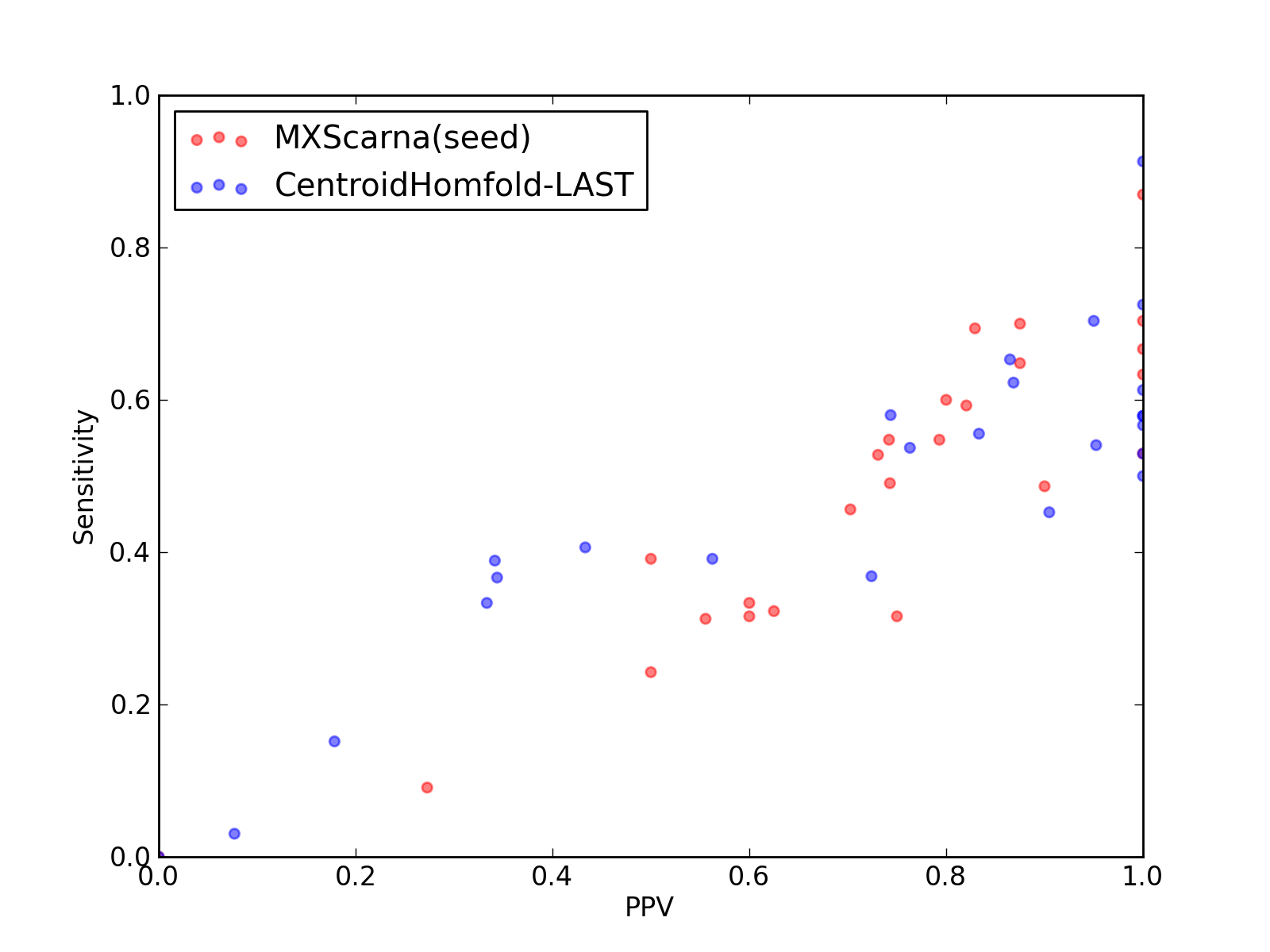

Comparison of performance of MXScarna(seed) and CentroidHomfold-LAST. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and CentroidHomfold‑LAST).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and CentroidHomfold‑LAST).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and CentroidHomfold-LAST. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and CentroidHomfold‑LAST).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	455
Total TN	123402
Total FP	173
Total FP CONTRA	18
Total FP INCONS	118
Total FP COMP	37
Total FN	449

Total Scores
MCC	0.620
Average MCC ± 95% Confidence Intervals	0.586 ± 0.091
Sensitivity	0.503
Positive Predictive Value	0.770
Nr of predictions	25

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1530	12	0	10	2	20
3AMU_B	tRNA links to Rfam database...	0.84	0.70	1.00	19	2984	1	0	0	1	8
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_0	tRNA links to Rfam database...	0.79	0.63	1.00	19	2831	0	0	0	0	11
3J20_1	tRNA links to Rfam database...	0.93	0.87	1.00	20	2906	0	0	0	0	3
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	1	8	2	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.09	0.27	3	7492	14	1	7	6	30
3J3E_7	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	2	5	0	22
3J3F_8	5_8S_rRNA links to Rfam database...	0.45	0.33	0.60	12	12226	18	1	7	10	24
3J3F_7	5S_rRNA links to Rfam database...	0.78	0.70	0.88	35	7220	6	2	3	1	15
3J3V_B	5S_rRNA links to Rfam database...	0.56	0.46	0.70	26	6984	11	1	10	0	31
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	1	7	0	19
3UZL_B	tRNA links to Rfam database...	0.66	0.49	0.90	18	3550	2	1	1	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.69	0.60	0.80	24	4723	6	0	6	0	16
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.69	0.83	34	6980	7	1	6	0	15
3ZND_W	tRNA links to Rfam database...	0.44	0.39	0.50	9	2985	11	0	9	2	14
4A1C_3	5S_rRNA links to Rfam database...	0.75	0.65	0.88	35	7100	5	1	4	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.35	0.24	0.50	8	11765	20	1	7	12	25
4AOB_A	SAM links to Rfam database...	0.66	0.55	0.79	23	4342	7	0	6	1	19
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	1	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.31	0.56	10	3468	8	2	6	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.62	0.53	0.73	19	5125	7	2	5	0	17
4JF2_A	preQ1-II links to Rfam database...	0.44	0.32	0.63	10	2834	6	0	6	0	21

^top

Performance of CentroidHomfold‑LAST - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	444
Total TN	123360
Total FP	218
Total FP CONTRA	21
Total FP INCONS	168
Total FP COMP	29
Total FN	460

Total Scores
MCC	0.584
Average MCC ± 95% Confidence Intervals	0.582 ± 0.105
Sensitivity	0.491
Positive Predictive Value	0.701
Nr of predictions	25

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1529	11	0	11	0	20
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_0	tRNA links to Rfam database...	0.35	0.37	0.34	11	2818	22	3	18	1	19
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.73	0.62	0.87	33	7837	7	0	5	2	20
3J3E_8	5_8S_rRNA links to Rfam database...	0.05	0.03	0.08	1	7490	16	1	11	4	32
3J3E_7	5S_rRNA links to Rfam database...	0.64	0.54	0.76	29	7102	9	0	9	0	25
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.33	12	12210	33	4	20	9	24
3J3F_7	5S_rRNA links to Rfam database...	0.65	0.58	0.74	29	7221	10	1	9	0	21
3J3V_B	5S_rRNA links to Rfam database...	0.51	0.37	0.72	21	6992	8	1	7	0	36
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.64	0.45	0.90	19	3895	2	0	2	0	23
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	29	4724	1	0	0	1	11
3ZEX_D	5S_rRNA links to Rfam database...	0.75	0.65	0.86	32	6984	5	0	5	0	17
3ZND_W	tRNA links to Rfam database...	0.47	0.39	0.56	9	2987	10	0	7	3	14
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	7104	6	0	6	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	11753	29	5	18	6	28
4AOB_A	SAM links to Rfam database...	0.71	0.50	1.00	21	4350	1	0	0	1	21
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.41	0.43	13	3456	17	3	14	0	19
4FRN_A	AdoCbl-variant links to Rfam database...	0.36	0.39	0.34	14	5110	27	3	24	0	22
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
