Overview

Metric	MXScarna(seed)		PPfold(seed)
MCC	0.620	>	0.150
Average MCC ± 95% Confidence Intervals	0.587 ± 0.092	>	0.065 ± 0.069
Sensitivity	0.499	>	0.033
Positive Predictive Value	0.775	>	0.689
Total TP	468	>	31
Total TN	134750	<	135309
Total FP	184	>	75
Total FP CONTRA	20	>	0
Total FP INCONS	116	>	14
Total FP COMP	48	<	61
Total FN	469	<	906
P-value	5.10776592382e-08

^top

Performance plots

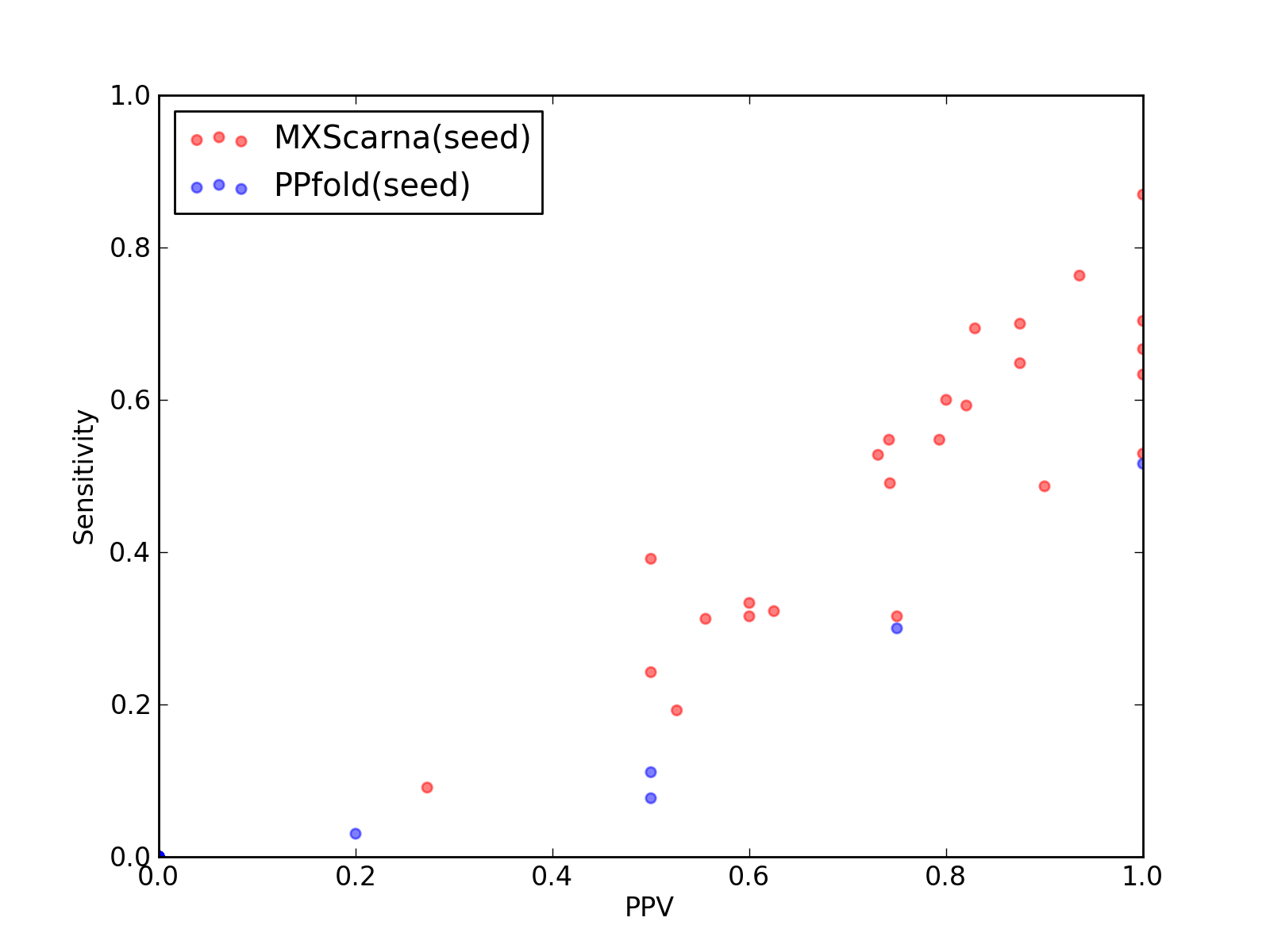

Comparison of performance of MXScarna(seed) and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and PPfold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and PPfold(seed)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	468
Total TN	134750
Total FP	184
Total FP CONTRA	20
Total FP INCONS	116
Total FP COMP	48
Total FN	469

Total Scores
MCC	0.620
Average MCC ± 95% Confidence Intervals	0.587 ± 0.092
Sensitivity	0.499
Positive Predictive Value	0.775
Nr of predictions	26

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1530	12	0	10	2	20
3AMU_B	tRNA links to Rfam database...	0.84	0.70	1.00	19	2984	1	0	0	1	8
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_0	tRNA links to Rfam database...	0.79	0.63	1.00	19	2831	0	0	0	0	11
3J20_1	tRNA links to Rfam database...	0.93	0.87	1.00	20	2906	0	0	0	0	3
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	1	8	2	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.09	0.27	3	7492	14	1	7	6	30
3J3E_7	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	2	5	0	22
3J3F_7	5S_rRNA links to Rfam database...	0.78	0.70	0.88	35	7220	6	2	3	1	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.45	0.33	0.60	12	12226	18	1	7	10	24
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	1	7	0	19
3UZL_B	tRNA links to Rfam database...	0.66	0.49	0.90	18	3550	2	1	1	0	19
3W1K_J	tRNA-Sec links to Rfam database...	0.84	0.76	0.94	29	4155	2	1	1	0	9
3W3S_B	tRNA-Sec links to Rfam database...	0.69	0.60	0.80	24	4723	6	0	6	0	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.19	0.53	10	14177	20	2	7	11	42
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.69	0.83	34	6980	7	1	6	0	15
3ZND_W	tRNA links to Rfam database...	0.44	0.39	0.50	9	2985	11	0	9	2	14
4A1C_3	5S_rRNA links to Rfam database...	0.75	0.65	0.88	35	7100	5	1	4	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.35	0.24	0.50	8	11765	20	1	7	12	25
4AOB_A	SAM links to Rfam database...	0.66	0.55	0.79	23	4342	7	0	6	1	19
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	1	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.31	0.56	10	3468	8	2	6	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.62	0.53	0.73	19	5125	7	2	5	0	17
4JF2_A	preQ1-II links to Rfam database...	0.44	0.32	0.63	10	2834	6	0	6	0	21

^top

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	31
Total TN	135309
Total FP	75
Total FP CONTRA	0
Total FP INCONS	14
Total FP COMP	61
Total FN	906

Total Scores
MCC	0.150
Average MCC ± 95% Confidence Intervals	0.065 ± 0.069
Sensitivity	0.033
Positive Predictive Value	0.689
Nr of predictions	26

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.47	0.30	0.75	6	1532	2	0	2	0	14
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	27
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	30
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	30
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	23
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7875	0	0	0	0	53
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	6	0	0	6	33
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	50
3J3F_8	5_8S_rRNA links to Rfam database...	0.23	0.11	0.50	4	12238	22	0	4	18	32
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3570	0	0	0	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.20	0.08	0.50	4	14188	22	0	4	18	48
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	23
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.08	0.03	0.20	1	11776	23	0	4	19	32
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
