Overview

Metric	MXScarna(seed)		Vsfold4
MCC	0.641	>	0.485
Average MCC ± 95% Confidence Intervals	0.619 ± 0.063	>	0.527 ± 0.078
Sensitivity	0.526	>	0.408
Positive Predictive Value	0.784	>	0.581
Total TP	941	>	730
Total TN	351483	>	351426
Total FP	349	<	612
Total FP CONTRA	48	<	56
Total FP INCONS	211	<	471
Total FP COMP	90	>	85
Total FN	848	<	1059
P-value	3.56938820447e-08

^top

Performance plots

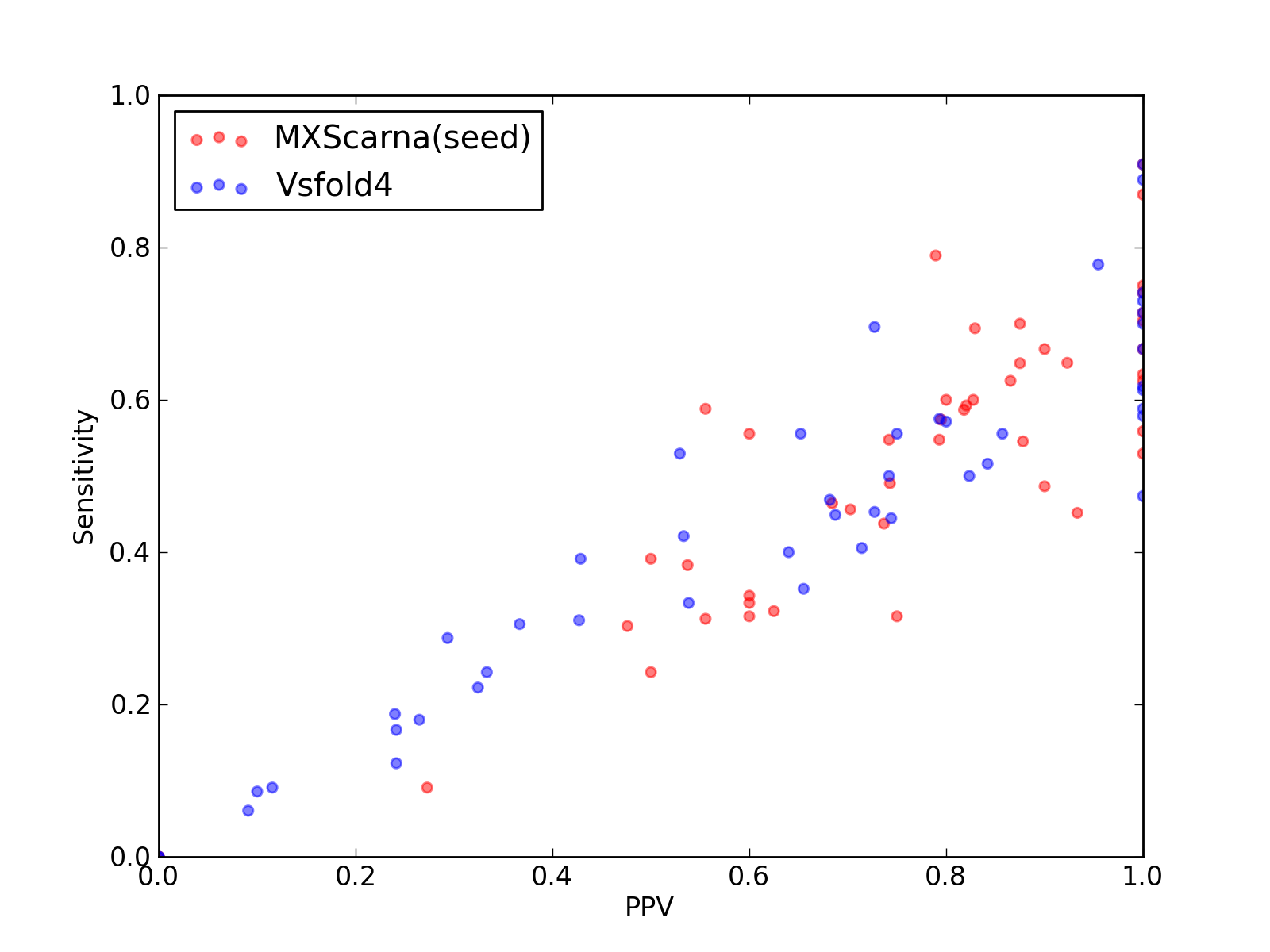

Comparison of performance of MXScarna(seed) and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Vsfold4).

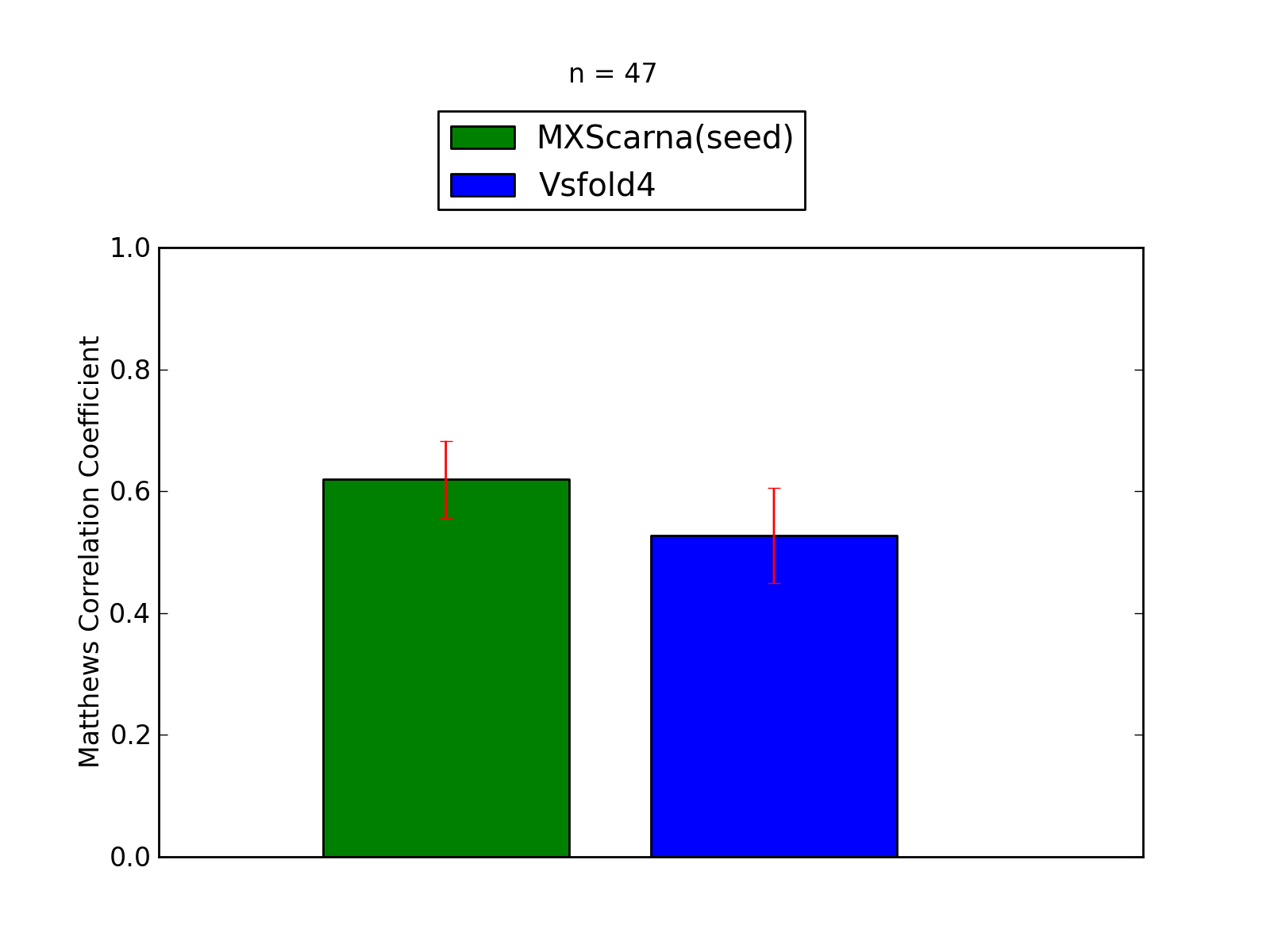

Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Vsfold4).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	941
Total TN	351483
Total FP	349
Total FP CONTRA	48
Total FP INCONS	211
Total FP COMP	90
Total FN	848

Total Scores
MCC	0.641
Average MCC ± 95% Confidence Intervals	0.619 ± 0.063
Sensitivity	0.526
Positive Predictive Value	0.784
Nr of predictions	47

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	859	2	0	2	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1530	12	0	10	2	20
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2WWQ_V	tRNA links to Rfam database...	0.56	0.46	0.68	13	2907	7	0	6	1	15
2XQD_Y	tRNA links to Rfam database...	0.77	0.67	0.90	18	2830	2	0	2	0	9
2ZZM_B	tRNA links to Rfam database...	0.56	0.44	0.74	14	3467	5	4	1	0	18
2ZZN_D	tRNA links to Rfam database...	0.86	0.74	1.00	20	2465	0	0	0	0	7
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.77	0.65	0.92	24	3629	3	0	2	1	13
3AKZ_H	tRNA links to Rfam database...	0.86	0.75	1.00	21	2680	0	0	0	0	7
3AMU_B	tRNA links to Rfam database...	0.84	0.70	1.00	19	2984	1	0	0	1	8
3GX2_A	SAM links to Rfam database...	0.70	0.60	0.83	24	4342	6	0	5	1	16
3IVN_B	Purine links to Rfam database...	0.65	0.45	0.93	14	2331	1	1	0	0	17
3IYQ_A	tmRNA links to Rfam database...	0.45	0.38	0.54	36	60659	37	4	27	6	58
3IZ4_A	tmRNA links to Rfam database...	0.69	0.55	0.88	72	70794	11	3	7	1	60
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.57	0.79	31	6864	9	1	7	1	23
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.93	0.87	1.00	20	2906	0	0	0	0	3
3J20_0	tRNA links to Rfam database...	0.79	0.63	1.00	19	2831	0	0	0	0	11
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	1	8	2	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.09	0.27	3	7492	14	1	7	6	30
3J3E_7	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	2	5	0	22
3J3F_7	5S_rRNA links to Rfam database...	0.78	0.70	0.88	35	7220	6	2	3	1	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.45	0.33	0.60	12	12226	18	1	7	10	24
3J3V_B	5S_rRNA links to Rfam database...	0.56	0.46	0.70	26	6984	11	1	10	0	31
3JYV_7	tRNA links to Rfam database...	0.79	0.63	1.00	20	2830	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.58	0.56	0.60	15	6303	21	1	9	11	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.38	0.30	0.48	10	12225	21	3	8	10	23
3LA5_A	Purine links to Rfam database...	0.75	0.56	1.00	19	2466	0	0	0	0	15
3NPB_A	SAM links to Rfam database...	0.69	0.59	0.82	27	6988	9	2	4	3	19
3O58_2	5S_rRNA links to Rfam database...	0.79	0.79	0.79	30	7222	10	4	4	2	8
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.34	0.60	12	12383	19	2	6	11	23
3PDR_A	ykoK links to Rfam database...	0.73	0.63	0.87	45	12828	9	2	5	2	27
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	1	7	0	19
3UZL_B	tRNA links to Rfam database...	0.66	0.49	0.90	18	3550	2	1	1	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.69	0.60	0.80	24	4723	6	0	6	0	16
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.69	0.83	34	6980	7	1	6	0	15
3ZND_W	tRNA links to Rfam database...	0.44	0.39	0.50	9	2985	11	0	9	2	14
4A1C_3	5S_rRNA links to Rfam database...	0.75	0.65	0.88	35	7100	5	1	4	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.35	0.24	0.50	8	11765	20	1	7	12	25
4AOB_A	SAM links to Rfam database...	0.66	0.55	0.79	23	4342	7	0	6	1	19
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	1	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.31	0.56	10	3468	8	2	6	0	22
4JF2_A	preQ1-II links to Rfam database...	0.44	0.32	0.63	10	2834	6	0	6	0	21

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	730
Total TN	351426
Total FP	612
Total FP CONTRA	56
Total FP INCONS	471
Total FP COMP	85
Total FN	1059

Total Scores
MCC	0.485
Average MCC ± 95% Confidence Intervals	0.527 ± 0.078
Sensitivity	0.408
Positive Predictive Value	0.581
Nr of predictions	47

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.24	6	3461	19	0	19	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3AKZ_H	tRNA links to Rfam database...	0.67	0.57	0.80	16	2681	5	1	3	1	12
3AMU_B	tRNA links to Rfam database...	0.64	0.56	0.75	15	2983	7	0	5	2	12
3GX2_A	SAM links to Rfam database...	0.50	0.40	0.64	16	4346	10	0	9	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.29	0.29	0.29	27	60634	71	13	52	6	67
3IZ4_A	tmRNA links to Rfam database...	0.36	0.31	0.43	41	70780	59	7	48	4	91
3IZF_C	5S_rRNA links to Rfam database...	0.69	0.56	0.86	30	6868	5	0	5	0	24
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.57	0.45	0.73	24	7842	12	1	8	3	29
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.09	2	7481	32	2	18	12	31
3J3E_7	5S_rRNA links to Rfam database...	0.48	0.35	0.66	19	7111	10	0	10	0	35
3J3F_7	5S_rRNA links to Rfam database...	0.21	0.18	0.26	9	7226	25	0	25	0	41
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.31	0.37	11	12216	27	4	15	8	25
3J3V_B	5S_rRNA links to Rfam database...	0.17	0.12	0.24	7	6992	22	1	21	0	50
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.56	0.65	15	6305	11	4	4	3	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.10	0.09	0.12	3	12220	33	2	21	10	30
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.61	0.50	0.74	23	6990	9	0	8	1	23
3O58_2	5S_rRNA links to Rfam database...	0.47	0.42	0.53	16	7230	16	3	11	2	22
3O58_3	5_8S_rRNA links to Rfam database...	0.09	0.09	0.10	3	12373	35	5	22	8	32
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.19	0.17	0.24	7	3887	22	1	21	0	35
3UZL_B	tRNA links to Rfam database...	0.53	0.41	0.71	15	3549	6	1	5	0	22
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.58	0.79	23	4724	7	0	6	1	17
3ZEX_D	5S_rRNA links to Rfam database...	0.55	0.45	0.69	22	6989	10	0	10	0	27
3ZND_W	tRNA links to Rfam database...	0.41	0.39	0.43	9	2982	14	2	10	2	14
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.28	0.24	0.33	8	11757	28	0	16	12	25
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1317	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4JF2_A	preQ1-II links to Rfam database...	0.66	0.52	0.84	16	2831	3	0	3	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
