Overview

Metric	MaxExpect		Carnac(seed)
MCC	0.541	>	0.390
Average MCC ± 95% Confidence Intervals	0.551 ± 0.101	>	0.067 ± 0.079
Sensitivity	0.468	>	0.171
Positive Predictive Value	0.626	<	0.890
Total TP	751	>	274
Total TN	1277740	<	1278631
Total FP	538	>	36
Total FP CONTRA	42	>	3
Total FP INCONS	406	>	31
Total FP COMP	90	>	2
Total FN	853	<	1330
P-value	5.10776592382e-08

^top

Performance plots

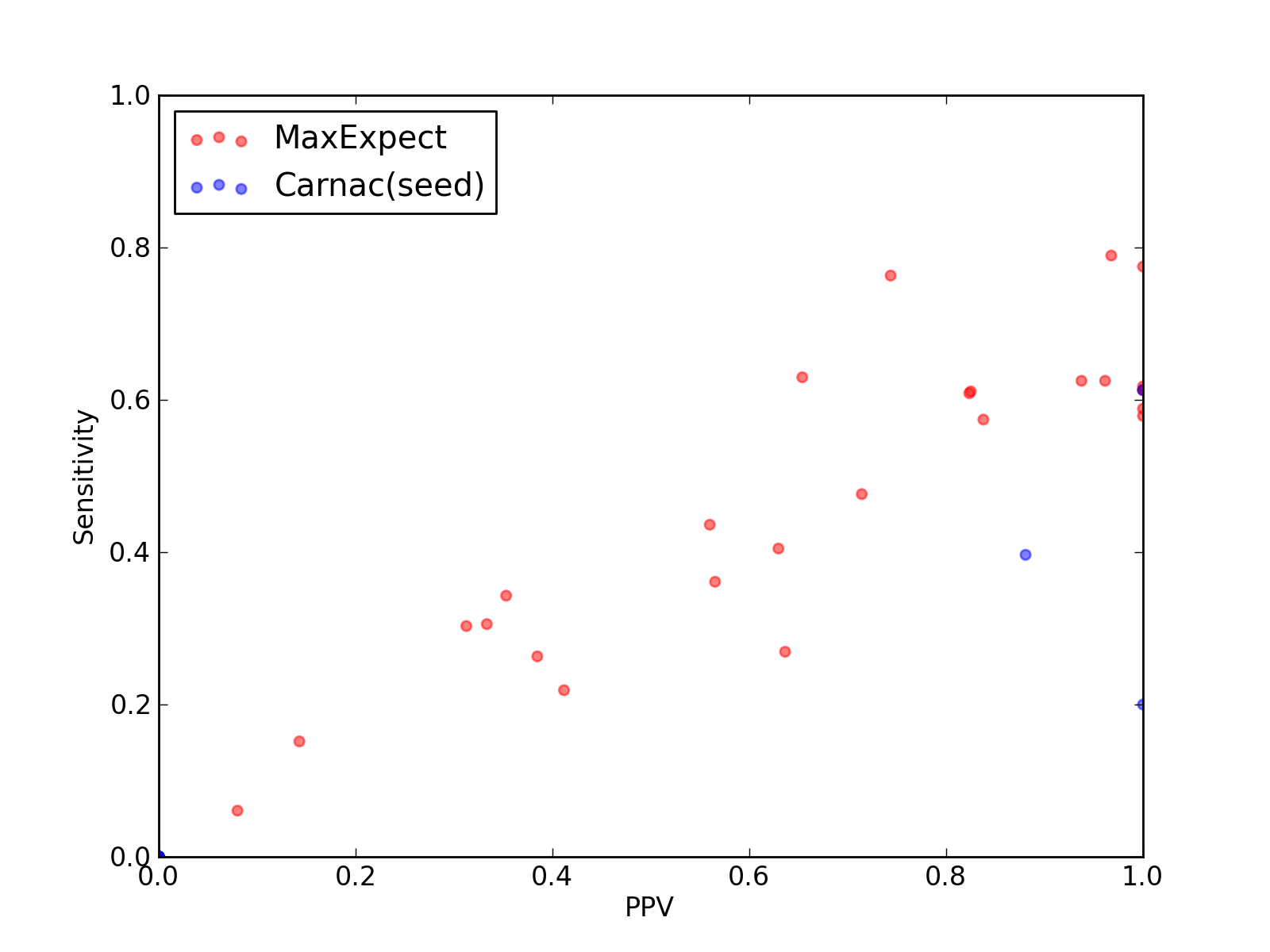

Comparison of performance of MaxExpect and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and Carnac(seed)).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	751
Total TN	1277740
Total FP	538
Total FP CONTRA	42
Total FP INCONS	406
Total FP COMP	90
Total FN	853

Total Scores
MCC	0.541
Average MCC ± 95% Confidence Intervals	0.551 ± 0.101
Sensitivity	0.468
Positive Predictive Value	0.626
Nr of predictions	27

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	1	6	0	21
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.49	0.44	0.56	276	1116272	221	10	207	4	357
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.08	2	7478	32	2	21	9	31
3J3F_8	5_8S_rRNA links to Rfam database...	0.32	0.31	0.33	11	12213	36	3	19	14	25
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.63	0.65	17	6302	19	1	8	10	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	34	4	18	12	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.61	0.82	28	6987	9	0	6	3	18
3O58_2	5S_rRNA links to Rfam database...	0.75	0.76	0.74	29	7221	11	3	7	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	35	2	20	13	23
3PDR_A	ykoK links to Rfam database...	0.76	0.63	0.94	45	12832	5	0	3	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.88	0.78	1.00	31	4722	1	0	0	1	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.27	0.64	14	14174	16	2	6	8	38
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	4	26	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	0	6	0	23
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.31	0.26	0.38	5	1313	8	1	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.30	0.22	0.41	7	3469	10	1	9	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.45	0.36	0.57	13	5128	10	2	8	0	23
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	274
Total TN	1278631
Total FP	36
Total FP CONTRA	3
Total FP INCONS	31
Total FP COMP	2
Total FN	1330

Total Scores
MCC	0.390
Average MCC ± 95% Confidence Intervals	0.067 ± 0.079
Sensitivity	0.171
Positive Predictive Value	0.890
Nr of predictions	27

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.20	1.00	4	1536	0	0	0	0	16
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.59	0.40	0.88	251	1116480	36	3	31	2	382
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	36
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14196	0	0	0	0	52
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
