Overview

Metric	MaxExpect		RSpredict(seed)
MCC	0.544	>	0.334
Average MCC ± 95% Confidence Intervals	0.566 ± 0.070	>	0.123 ± 0.064
Sensitivity	0.477	>	0.187
Positive Predictive Value	0.622	>	0.596
Total TP	1150	>	452
Total TN	1476855	<	1477945
Total FP	811	>	315
Total FP CONTRA	76	>	23
Total FP INCONS	622	>	283
Total FP COMP	113	>	9
Total FN	1262	<	1960
P-value	3.56938820447e-08

^top

Performance plots

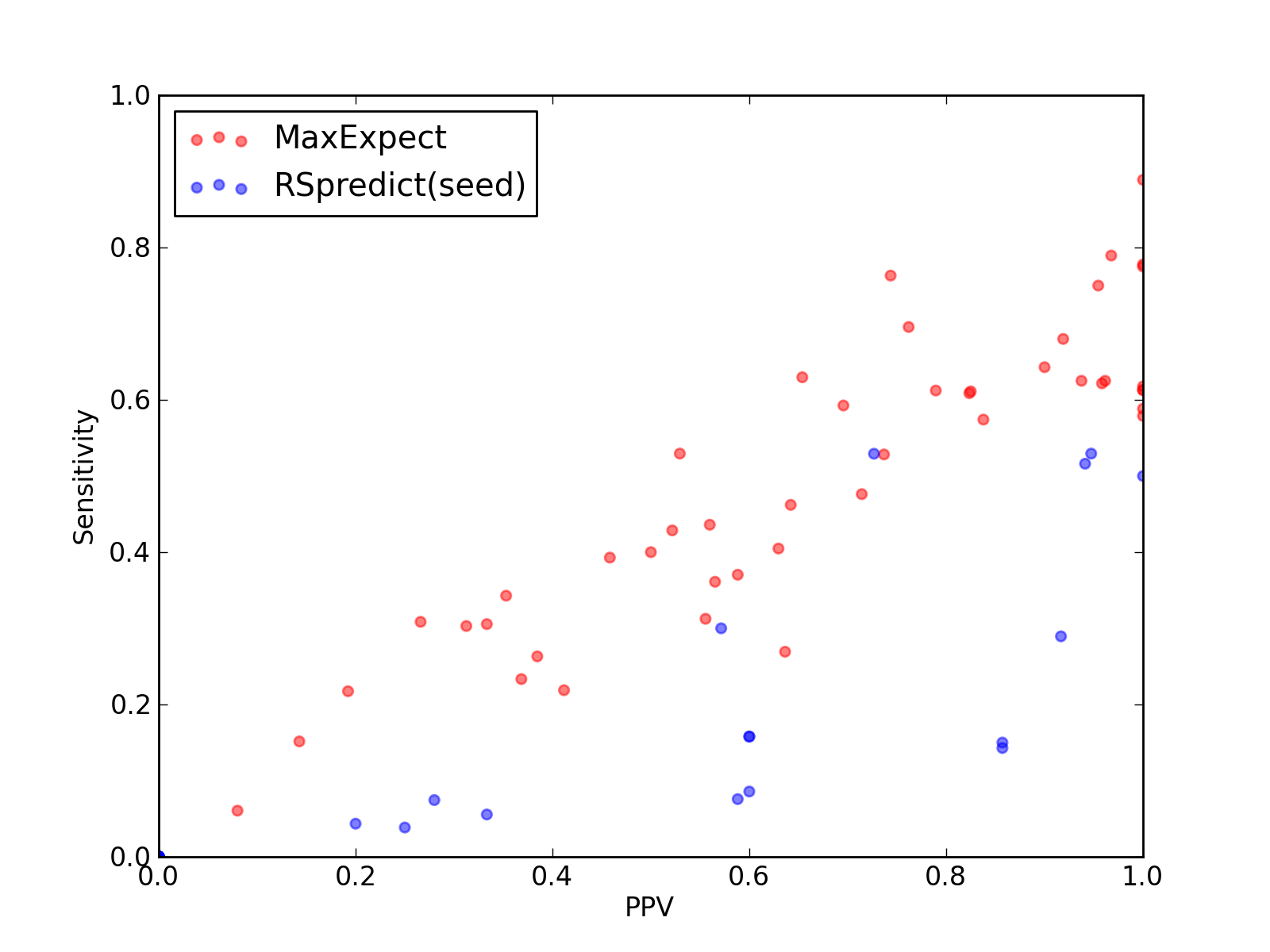

Comparison of performance of MaxExpect and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and RSpredict(seed)).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	1150
Total TN	1476855
Total FP	811
Total FP CONTRA	76
Total FP INCONS	622
Total FP COMP	113
Total FN	1262

Total Scores
MCC	0.544
Average MCC ± 95% Confidence Intervals	0.566 ± 0.070
Sensitivity	0.477
Positive Predictive Value	0.622
Nr of predictions	47

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WWQ_V	tRNA links to Rfam database...	0.76	0.64	0.90	18	2906	3	0	2	1	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AMU_B	tRNA links to Rfam database...	0.64	0.59	0.70	16	2980	9	0	7	2	11
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.29	0.31	0.27	29	60617	84	19	61	4	65
3IZ4_A	tmRNA links to Rfam database...	0.54	0.46	0.64	61	70781	39	3	31	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	1	6	0	21
3J16_L	tRNA links to Rfam database...	0.29	0.23	0.37	7	2756	12	0	12	0	23
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	5	0	5	0	7
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.49	0.44	0.56	276	1116272	221	10	207	4	357
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3J3D_C	tRNA links to Rfam database...	0.47	0.43	0.52	12	2752	11	1	10	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.46	0.37	0.59	20	7106	14	1	13	0	34
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.08	2	7478	32	2	21	9	31
3J3F_8	5_8S_rRNA links to Rfam database...	0.32	0.31	0.33	11	12213	36	3	19	14	25
3J3F_7	5S_rRNA links to Rfam database...	0.79	0.68	0.92	34	7223	4	0	3	1	16
3JYV_7	tRNA links to Rfam database...	0.41	0.31	0.56	10	2832	8	0	8	0	22
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.63	0.65	17	6302	19	1	8	10	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	34	4	18	12	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.61	0.82	28	6987	9	0	6	3	18
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	35	2	20	13	23
3O58_2	5S_rRNA links to Rfam database...	0.75	0.76	0.74	29	7221	11	3	7	1	9
3PDR_A	ykoK links to Rfam database...	0.76	0.63	0.94	45	12832	5	0	3	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3UZL_B	tRNA links to Rfam database...	0.77	0.62	0.96	23	3546	1	0	1	0	14
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.88	0.78	1.00	31	4722	1	0	0	1	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.27	0.64	14	14174	16	2	6	8	38
3ZEX_D	5S_rRNA links to Rfam database...	0.69	0.61	0.79	30	6983	8	1	7	0	19
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	4	26	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	0	6	0	23
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.31	0.26	0.38	5	1313	8	1	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.30	0.22	0.41	7	3469	10	1	9	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.45	0.36	0.57	13	5128	10	2	8	0	23
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	452
Total TN	1477945
Total FP	315
Total FP CONTRA	23
Total FP INCONS	283
Total FP COMP	9
Total FN	1960

Total Scores
MCC	0.334
Average MCC ± 95% Confidence Intervals	0.123 ± 0.064
Sensitivity	0.187
Positive Predictive Value	0.596
Nr of predictions	47

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	860	1	0	1	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2848	3	1	1	1	17
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2920	6	1	5	0	28
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2924	2	0	2	0	28
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2699	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3GX2_A	SAM links to Rfam database...	0.36	0.15	0.86	6	4364	1	0	1	0	34
3IVN_B	Purine links to Rfam database...	0.69	0.52	0.94	16	2329	1	0	1	0	15
3IYQ_A	tmRNA links to Rfam database...	0.14	0.07	0.28	7	60701	19	5	13	1	87
3IZ4_A	tmRNA links to Rfam database...	0.21	0.08	0.59	10	70859	7	0	7	0	122
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	30
3J20_1	tRNA links to Rfam database...	0.09	0.04	0.20	1	2921	4	0	4	0	22
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.62	0.53	0.73	335	1116304	129	9	117	3	298
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7870	5	0	5	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2771	4	1	3	0	28
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7132	8	0	8	0	54
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.14	0.06	0.33	2	12240	5	1	3	1	34
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7256	4	0	4	0	50
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6323	5	1	4	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12241	5	0	5	0	33
3LA5_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2468	0	0	0	0	17
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7017	4	0	4	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3564	6	0	6	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.51	0.29	0.92	11	4174	1	0	1	0	27
3W3S_B	tRNA-Sec links to Rfam database...	0.41	0.30	0.57	12	4732	10	1	8	1	28
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.04	0.25	2	14188	6	1	5	0	50
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7019	2	0	2	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3000	4	0	3	1	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5148	3	0	3	0	36
4JF2_A	preQ1-II links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	31

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
