Overview

Metric	McQFold		Murlet(seed)
MCC	0.565	>	0.448
Average MCC ± 95% Confidence Intervals	0.599 ± 0.117	>	0.445 ± 0.064
Sensitivity	0.488	>	0.245
Positive Predictive Value	0.659	<	0.825
Total TP	413	>	207
Total TN	137977	<	138353
Total FP	259	>	51
Total FP CONTRA	41	>	6
Total FP INCONS	173	>	38
Total FP COMP	45	>	7
Total FN	433	<	639
P-value	5.1503931209e-08

^top

Performance plots

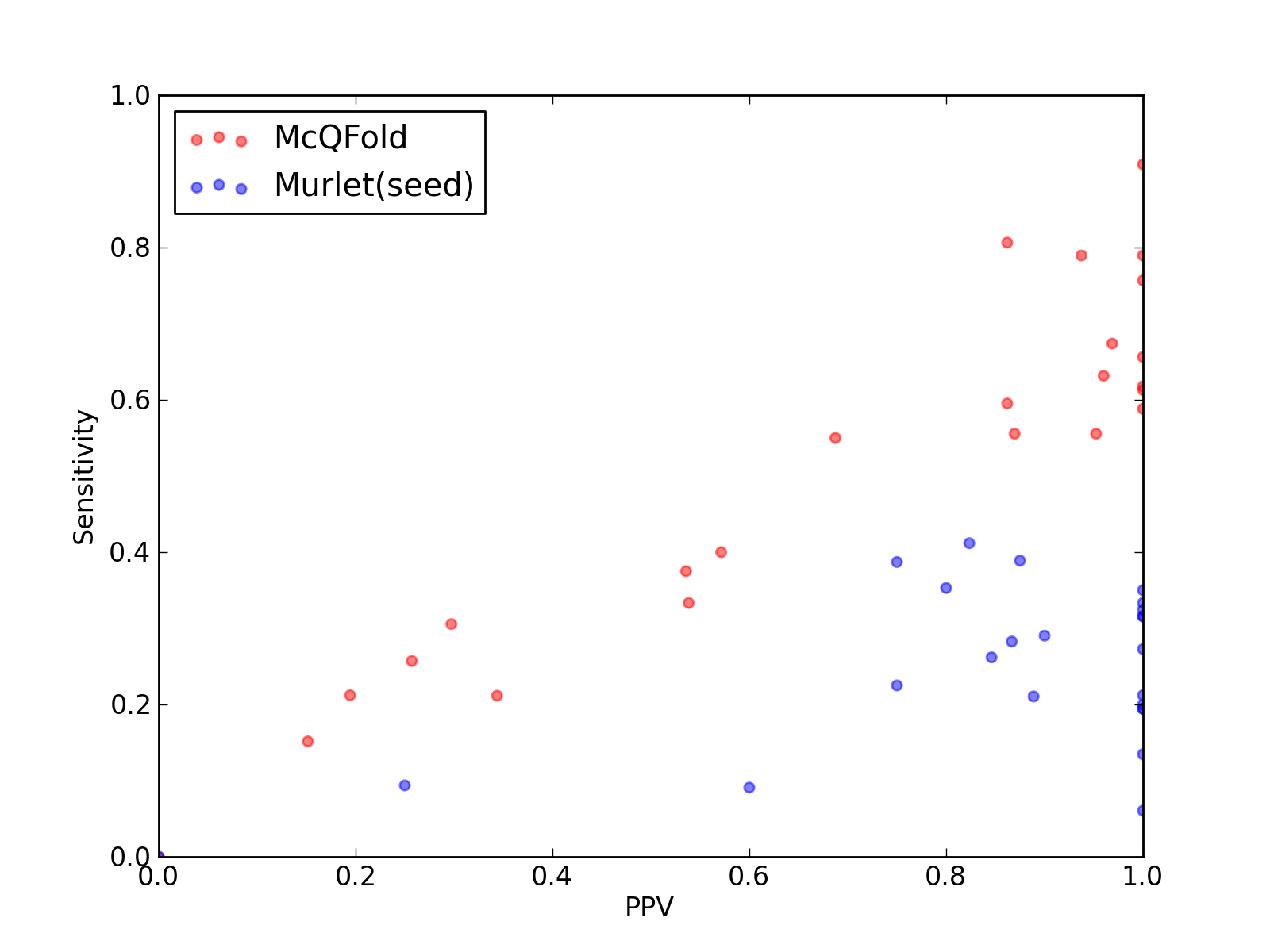

Comparison of performance of McQFold and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for McQFold and Murlet(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for McQFold and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for McQFold and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for McQFold and Murlet(seed)).

^top

Performance of McQFold - scored higher in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	413
Total TN	137977
Total FP	259
Total FP CONTRA	41
Total FP INCONS	173
Total FP COMP	45
Total FN	433

Total Scores
MCC	0.565
Average MCC ± 95% Confidence Intervals	0.599 ± 0.117
Sensitivity	0.488
Positive Predictive Value	0.659
Nr of predictions	24

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.57	16	4343	13	1	11	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7479	36	3	21	12	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.30	0.31	0.30	11	12209	38	4	22	12	25
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.19	7	12210	33	8	21	4	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.81	0.67	0.97	31	6989	4	1	0	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.26	0.26	0.26	9	12368	26	10	16	0	26
3PDR_A	ykoK links to Rfam database...	0.69	0.56	0.87	40	12834	9	0	6	3	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.60	0.86	25	3887	4	0	4	0	17
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.63	0.96	24	4161	1	1	0	0	14
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.54	15	4725	14	0	13	1	25
3ZEX_C	5_8S_rRNA links to Rfam database...	0.27	0.21	0.34	11	14164	24	2	19	3	41
4A1C_2	5_8S_rRNA links to Rfam database...	0.15	0.15	0.15	5	11748	33	5	23	5	28
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4FRN_A	AdoCbl-variant links to Rfam database...	0.73	0.56	0.95	20	5130	1	1	0	0	16
4JF2_A	preQ1-II links to Rfam database...	0.83	0.81	0.86	25	2821	4	3	1	0	6

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	207
Total TN	138353
Total FP	51
Total FP CONTRA	6
Total FP INCONS	38
Total FP COMP	7
Total FN	639

Total Scores
MCC	0.448
Average MCC ± 95% Confidence Intervals	0.445 ± 0.064
Sensitivity	0.245
Positive Predictive Value	0.825
Nr of predictions	24

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.57	0.32	1.00	12	3643	0	0	0	0	25
3GX2_A	SAM links to Rfam database...	0.59	0.35	1.00	14	4357	1	0	0	1	26
3IVN_B	Purine links to Rfam database...	0.53	0.39	0.75	12	2330	4	2	2	0	19
3J3E_8	5_8S_rRNA links to Rfam database...	0.25	0.06	1.00	2	7501	2	0	0	2	31
3J3F_8	5_8S_rRNA links to Rfam database...	0.44	0.19	1.00	7	12239	0	0	0	0	29
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12241	4	0	2	2	30
3LA5_A	Purine links to Rfam database...	0.58	0.41	0.82	14	2468	3	1	2	0	20
3NPB_A	SAM links to Rfam database...	0.49	0.28	0.87	13	7006	2	1	1	0	33
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.20	1.00	7	12396	0	0	0	0	28
3PDR_A	ykoK links to Rfam database...	0.44	0.19	1.00	14	12866	0	0	0	0	58
3RKF_A	Purine links to Rfam database...	0.53	0.35	0.80	12	2196	3	1	2	0	22
3SD1_A	THF links to Rfam database...	0.47	0.26	0.85	11	3903	2	0	2	0	31
3W1K_J	tRNA-Sec links to Rfam database...	0.43	0.21	0.89	8	4177	1	0	1	0	30
3W3S_B	tRNA-Sec links to Rfam database...	0.41	0.23	0.75	9	4741	3	0	3	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.37	0.13	1.00	7	14189	0	0	0	0	45
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	11774	0	0	0	0	26
4AOB_A	SAM links to Rfam database...	0.58	0.33	1.00	14	4357	1	0	0	1	28
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.15	0.09	0.25	3	3474	9	0	9	0	29
4FRN_A	AdoCbl-variant links to Rfam database...	0.58	0.39	0.88	14	5135	2	1	1	0	22
4JF2_A	preQ1-II links to Rfam database...	0.51	0.29	0.90	9	2840	2	0	1	1	22

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
