Overview

Metric	Pknots		MCFold
MCC	0.492	>	0.385
Average MCC ± 95% Confidence Intervals	0.500 ± 0.067	>	0.375 ± 0.065
Sensitivity	0.443	>	0.396
Positive Predictive Value	0.553	>	0.383
Total TP	910	>	814
Total TN	287394	>	286913
Total FP	814	<	1445
Total FP CONTRA	98	<	176
Total FP INCONS	639	<	1138
Total FP COMP	77	<	131
Total FN	1144	<	1240
P-value	3.56938820447e-08

^top

Performance plots

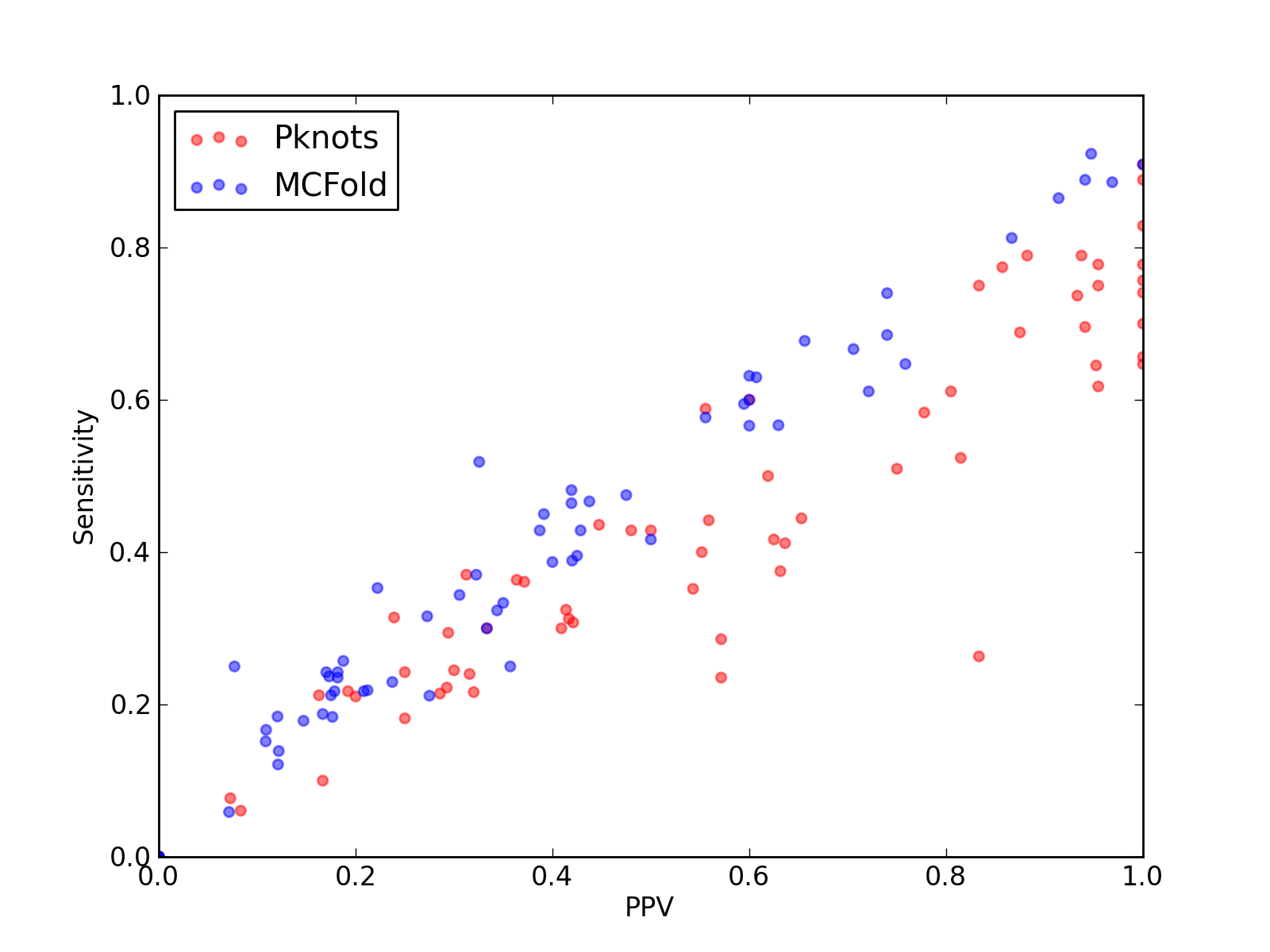

Comparison of performance of Pknots and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Pknots and MCFold).

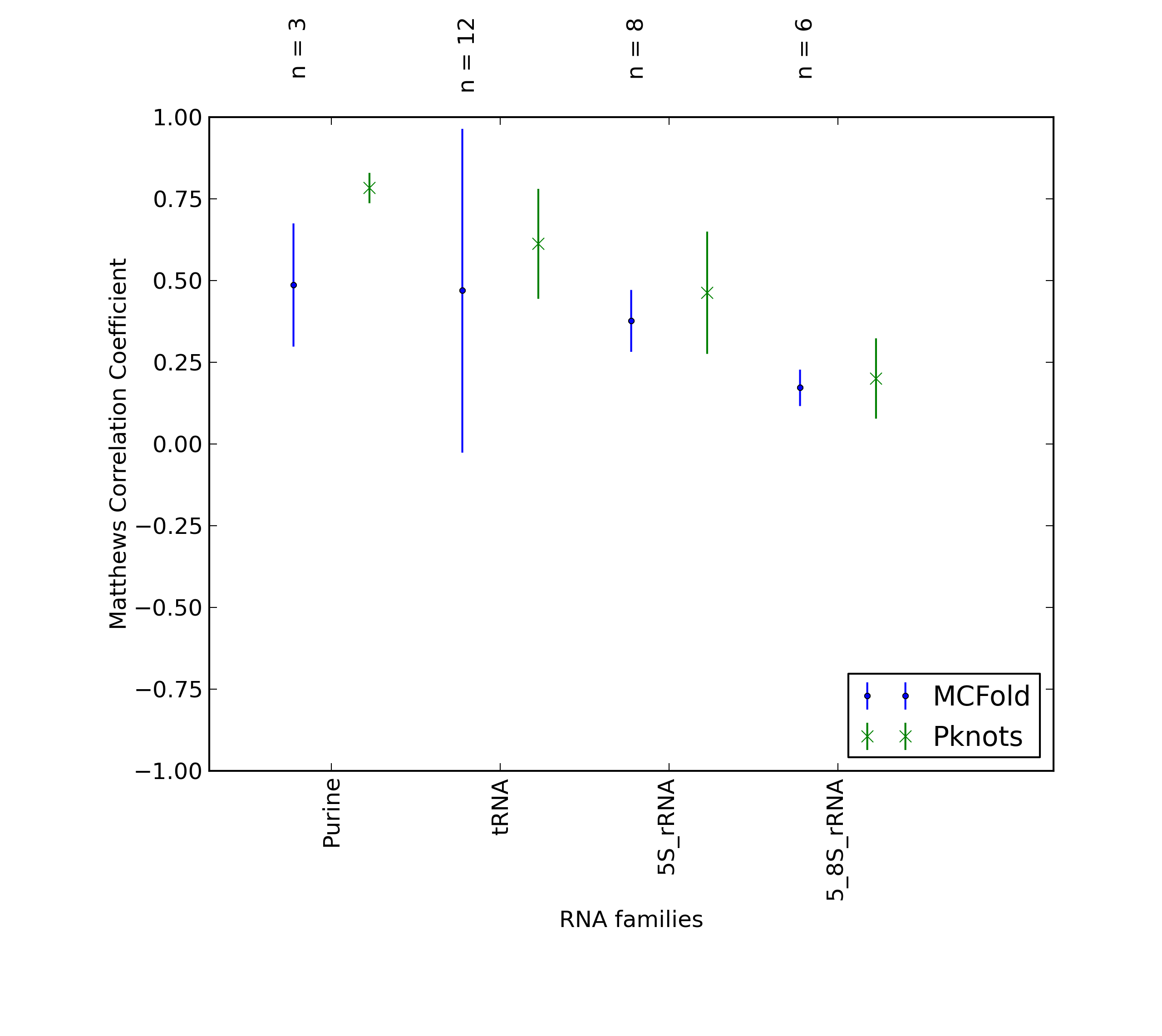

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Pknots and MCFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Pknots and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Pknots and MCFold).

^top

Performance of Pknots - scored higher in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	910
Total TN	287394
Total FP	814
Total FP CONTRA	98
Total FP INCONS	639
Total FP COMP	77
Total FN	1144

Total Scores
MCC	0.492
Average MCC ± 95% Confidence Intervals	0.500 ± 0.067
Sensitivity	0.443
Positive Predictive Value	0.553
Nr of predictions	66

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	0.11	0.10	0.17	2	618	10	0	10	0	18
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.79	0.75	0.83	15	1522	3	1	2	0	5
2LKR_A	-	0.44	0.44	0.45	17	6067	22	4	17	1	22
2M58_A	-	0.51	0.41	0.64	7	1642	4	1	3	0	10
2RP0_A	-	0.66	0.58	0.78	7	342	2	1	1	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_E	-	0.39	0.29	0.57	4	554	3	0	3	0	10
2WW9_D	-	0.35	0.31	0.42	8	1934	11	2	9	0	18
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.24	0.21	0.29	6	2905	16	1	14	1	22
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.45	0.43	0.48	12	2901	13	2	11	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AM1_B	-	0.91	0.83	1.00	29	3211	0	0	0	0	6
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	2	0	0	2	7
3GCA_A	-	0.35	0.24	0.57	4	521	3	0	3	0	13
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.55	16	4342	14	1	12	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.18	0.25	6	4254	18	1	17	0	27
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_a	-	0.35	0.31	0.42	5	1116	7	1	6	0	11
3J0L_g	-	-0.01	0.00	0.00	0	460	5	2	3	0	4
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_2	-	0.36	0.36	0.36	12	6183	23	3	18	2	21
3J16_L	tRNA links to Rfam database...	0.34	0.30	0.41	9	2753	13	0	13	0	21
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.51	0.75	27	7839	12	0	9	3	26
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.43	0.35	0.54	19	7105	16	1	15	0	35
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.08	2	7479	33	2	20	11	31
3J3F_7	5S_rRNA links to Rfam database...	0.27	0.24	0.32	12	7222	27	1	25	1	38
3J3F_8	5_8S_rRNA links to Rfam database...	0.36	0.36	0.37	13	12211	34	2	20	12	23
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.18	0.21	0.16	7	12203	41	13	23	5	26
3JYX_3	5S_rRNA links to Rfam database...	0.34	0.37	0.31	10	6296	24	9	13	2	17
3KTW_C	-	0.49	0.44	0.56	19	4526	16	2	13	1	24
3LA5_A	Purine links to Rfam database...	0.80	0.65	1.00	22	2463	0	0	0	0	12
3NDB_M	-	0.77	0.69	0.88	42	9132	7	1	5	1	19
3NKB_B	-	0.55	0.50	0.62	13	1995	8	0	8	0	13
3O58_2	5S_rRNA links to Rfam database...	0.83	0.74	0.93	28	7230	3	0	2	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.27	0.31	0.24	11	12357	38	11	24	3	24
3PDR_A	ykoK links to Rfam database...	0.54	0.44	0.65	32	12831	19	0	17	2	40
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.65	0.52	0.81	22	3889	5	0	5	0	20
3U4M_B	-	0.26	0.22	0.32	8	3135	17	0	17	0	29
3ZEX_H	-	0.20	0.21	0.20	8	9005	32	5	27	0	30
3ZEX_G	-	0.36	0.32	0.41	24	16413	37	3	31	3	50
3ZEX_D	5S_rRNA links to Rfam database...	0.27	0.24	0.30	12	6981	28	0	28	0	37
3ZEX_C	5_8S_rRNA links to Rfam database...	0.07	0.08	0.07	4	14141	54	4	47	3	48
3ZEX_F	-	0.00	0.00	0.00	0	2619	12	2	7	3	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.25	8	11749	36	3	21	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4ATO_G	-	0.30	0.30	0.33	3	519	6	2	4	0	7
4ENB_A	crcB links to Rfam database...	0.83	0.79	0.88	15	1258	2	1	1	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	-0.02	0.00	0.00	0	585	10	0	10	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.48	0.38	0.63	12	3467	7	0	7	0	20
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.42	0.63	15	5127	9	1	8	0	21
4JF2_A	preQ1-II links to Rfam database...	0.81	0.77	0.86	24	2822	4	3	1	0	7
4JRC_A	-	0.81	0.70	0.94	16	1523	1	1	0	0	7

^top

Performance of MCFold - scored lower in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	814
Total TN	286913
Total FP	1445
Total FP CONTRA	176
Total FP INCONS	1138
Total FP COMP	131
Total FN	1240

Total Scores
MCC	0.385
Average MCC ± 95% Confidence Intervals	0.375 ± 0.065
Sensitivity	0.396
Positive Predictive Value	0.383
Nr of predictions	66

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	1	0	0	1	1
2KFC_A	-	0.28	0.25	0.36	5	616	9	2	7	0	15
2KX8_A	7SK links to Rfam database...	0.91	0.89	0.94	16	844	2	0	1	1	2
2LA5_A	-	-0.03	0.00	0.00	0	615	15	0	15	0	19
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.45	0.39	9	1517	16	0	14	2	11
2LKR_A	-	0.93	0.92	0.95	36	6067	14	0	2	12	3
2M58_A	-	0.20	0.24	0.18	4	1631	19	2	16	1	13
2RP0_A	-	0.44	0.42	0.50	5	341	5	1	4	0	7
2WRQ_Y	tRNA links to Rfam database...	0.27	0.35	0.22	6	2823	25	8	13	4	11
2WW9_E	-	-0.02	0.00	0.00	0	547	14	0	14	0	14
2WW9_D	-	-0.01	0.00	0.00	0	1925	28	5	23	0	26
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.15	0.18	0.15	5	2892	30	4	25	1	23
2XQD_Y	tRNA links to Rfam database...	0.34	0.37	0.32	10	2819	22	1	20	1	17
2ZZN_D	tRNA links to Rfam database...	0.61	0.63	0.61	17	2457	13	1	10	2	10
3A2K_C	tRNA links to Rfam database...	0.44	0.46	0.42	13	2895	18	2	16	0	15
3A3A_A	tRNA-Sec links to Rfam database...	0.89	0.86	0.91	32	3620	3	1	2	0	5
3AKZ_H	tRNA links to Rfam database...	0.40	0.43	0.39	12	2670	19	3	16	0	16
3AM1_B	-	0.93	0.89	0.97	31	3208	2	0	1	1	4
3AMU_B	tRNA links to Rfam database...	0.44	0.48	0.42	13	2972	18	2	16	0	14
3GCA_A	-	0.04	0.06	0.07	1	514	13	1	12	0	16
3GX2_A	SAM links to Rfam database...	0.47	0.48	0.48	19	4331	22	0	21	1	21
3IVN_B	Purine links to Rfam database...	0.39	0.39	0.40	12	2316	18	0	18	0	19
3IWN_A	c-di-GMP-I links to Rfam database...	0.19	0.21	0.18	7	4238	33	8	25	0	26
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.69	0.74	37	6853	14	0	13	1	17
3J0L_a	-	0.16	0.19	0.17	3	1110	15	1	14	0	13
3J0L_g	-	0.13	0.25	0.08	1	452	12	8	4	0	3
3J0L_7	-	-0.01	0.00	0.00	0	1206	19	4	15	0	17
3J0L_2	-	0.21	0.24	0.18	8	6172	39	7	29	3	25
3J16_L	tRNA links to Rfam database...	0.45	0.47	0.44	14	2743	19	1	17	1	16
3J20_0	tRNA links to Rfam database...	0.59	0.57	0.63	17	2823	12	1	9	2	13
3J2L_3	5S_rRNA links to Rfam database...	0.58	0.57	0.60	30	7825	23	2	18	3	23
3J3D_C	tRNA links to Rfam database...	0.42	0.43	0.43	12	2747	18	2	14	2	16
3J3E_7	5S_rRNA links to Rfam database...	0.40	0.39	0.42	21	7090	29	3	26	0	33
3J3E_8	5_8S_rRNA links to Rfam database...	0.12	0.12	0.12	4	7470	46	3	26	17	29
3J3F_7	5S_rRNA links to Rfam database...	0.74	0.74	0.74	37	7210	17	2	11	4	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.13	0.17	0.11	6	12191	61	9	40	12	30
3JYV_7	tRNA links to Rfam database...	0.21	0.22	0.21	7	2817	26	0	26	0	25
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.24	0.17	8	12199	43	16	23	4	25
3JYX_3	5S_rRNA links to Rfam database...	0.41	0.52	0.33	14	6285	34	12	17	5	13
3KTW_C	-	0.40	0.40	0.43	17	4520	24	4	19	1	26
3LA5_A	Purine links to Rfam database...	0.32	0.32	0.34	11	2453	21	1	20	0	23
3NDB_M	-	0.23	0.23	0.24	14	9121	46	1	44	1	47
3NKB_B	-	0.56	0.58	0.56	15	1989	13	0	12	1	11
3O58_2	5S_rRNA links to Rfam database...	0.20	0.24	0.17	9	7208	44	5	38	1	29
3O58_3	5_8S_rRNA links to Rfam database...	0.22	0.26	0.19	9	12355	45	9	30	6	26
3PDR_A	ykoK links to Rfam database...	0.66	0.61	0.72	44	12819	19	0	17	2	28
3RKF_A	Purine links to Rfam database...	0.70	0.65	0.76	22	2182	7	1	6	0	12
3SD1_A	THF links to Rfam database...	0.33	0.33	0.35	14	3876	26	0	26	0	28
3U4M_B	-	0.59	0.59	0.59	22	3123	15	0	15	0	15
3ZEX_H	-	0.14	0.18	0.12	7	8987	52	14	37	1	31
3ZEX_G	-	0.00	0.00	0.00	0	16456	15	1	14	0	74
3ZEX_D	5S_rRNA links to Rfam database...	0.17	0.18	0.18	9	6970	42	4	38	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14156	29	3	26	0	41
3ZEX_F	-	-0.01	0.00	0.00	0	2610	29	4	14	11	12
3ZND_W	tRNA links to Rfam database...	0.19	0.22	0.18	5	2975	26	1	22	3	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.11	5	11735	56	10	31	15	28
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.67	0.71	36	7089	17	1	14	2	18
4ATO_G	-	0.30	0.30	0.33	3	519	8	0	6	2	7
4ENB_A	crcB links to Rfam database...	0.61	0.63	0.60	12	1255	8	2	6	0	7
4ENC_A	crcB links to Rfam database...	0.28	0.32	0.27	6	1304	17	2	14	1	13
4FNJ_A	-	0.83	0.81	0.87	13	580	3	0	2	1	3
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.34	0.31	11	3450	25	0	25	0	21
4FRN_A	AdoCbl-variant links to Rfam database...	0.12	0.14	0.12	5	5110	38	1	35	2	31
4JF2_A	preQ1-II links to Rfam database...	0.66	0.68	0.66	21	2818	11	0	11	0	10
4JRC_A	-	0.20	0.22	0.21	5	1516	19	0	19	0	18

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
