Overview

Metric	Pknots		Mastr(seed)
MCC	0.523	>	0.025
Average MCC ± 95% Confidence Intervals	0.568 ± 0.078	>	0.004 ± 0.007
Sensitivity	0.469	>	0.002
Positive Predictive Value	0.590	>	0.375
Total TP	832	>	3
Total TN	253361	<	254762
Total FP	648	>	5
Total FP CONTRA	73	>	0
Total FP INCONS	504	>	5
Total FP COMP	71	>	0
Total FN	942	<	1771
P-value	3.56938820447e-08

^top

Performance plots

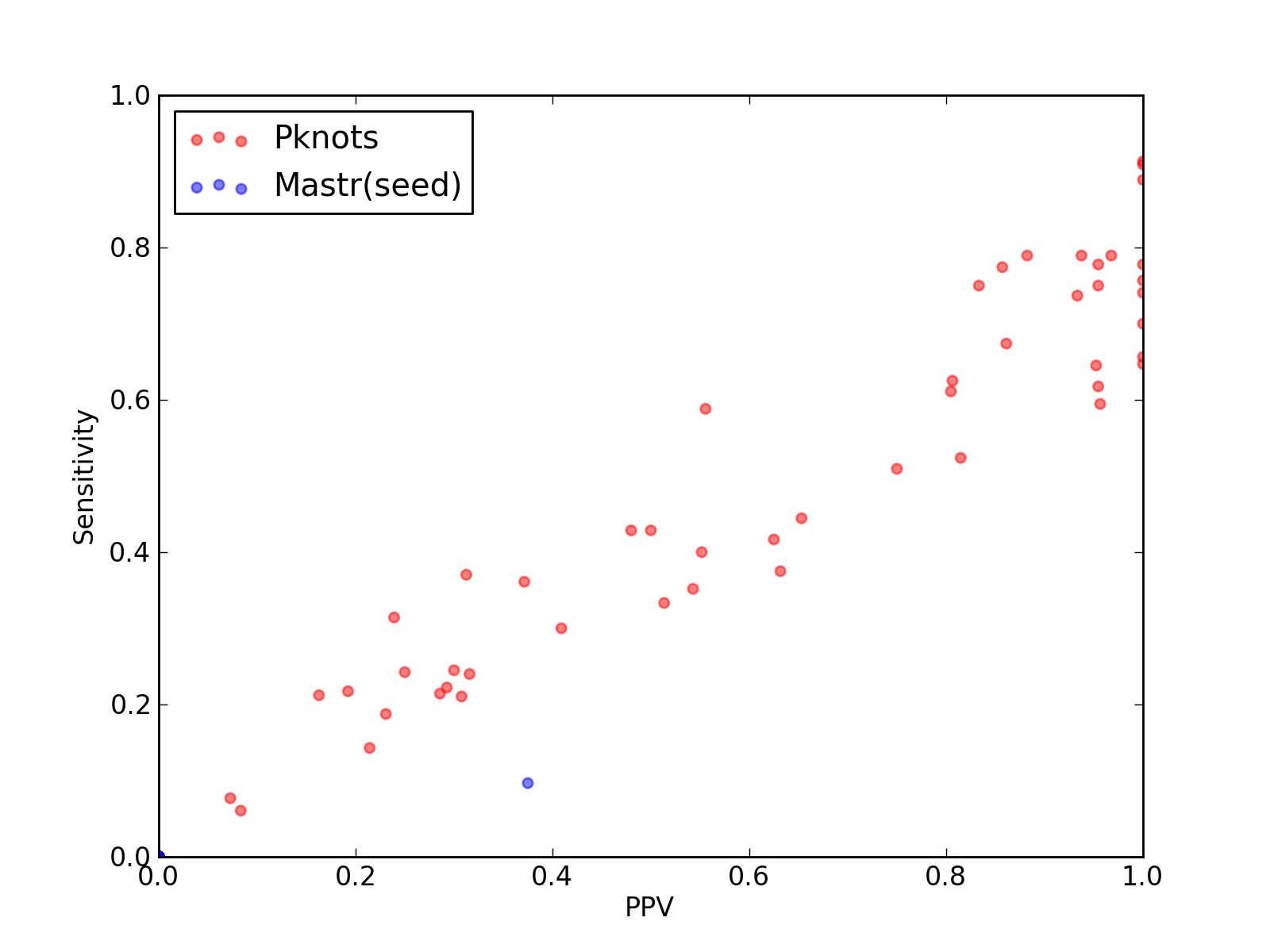

Comparison of performance of Pknots and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Pknots and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Pknots and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Pknots and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Pknots and Mastr(seed)).

^top

Performance of Pknots - scored higher in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	832
Total TN	253361
Total FP	648
Total FP CONTRA	73
Total FP INCONS	504
Total FP COMP	71
Total FN	942

Total Scores
MCC	0.523
Average MCC ± 95% Confidence Intervals	0.568 ± 0.078
Sensitivity	0.469
Positive Predictive Value	0.590
Nr of predictions	50

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.79	0.75	0.83	15	1522	3	1	2	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WWQ_V	tRNA links to Rfam database...	0.24	0.21	0.29	6	2905	16	1	14	1	22
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.20	0.19	0.23	6	3460	20	2	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.45	0.43	0.48	12	2901	13	2	11	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	2	0	0	2	7
3G4S_9	5S_rRNA links to Rfam database...	0.25	0.21	0.31	12	7342	27	0	27	0	45
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.55	16	4342	14	1	12	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J16_L	tRNA links to Rfam database...	0.34	0.30	0.41	9	2753	13	0	13	0	21
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.51	0.75	27	7839	12	0	9	3	26
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.08	2	7479	33	2	20	11	31
3J3E_7	5S_rRNA links to Rfam database...	0.43	0.35	0.54	19	7105	16	1	15	0	35
3J3F_8	5_8S_rRNA links to Rfam database...	0.36	0.36	0.37	13	12211	34	2	20	12	23
3J3F_7	5S_rRNA links to Rfam database...	0.27	0.24	0.32	12	7222	27	1	25	1	38
3J3V_B	5S_rRNA links to Rfam database...	0.41	0.33	0.51	19	6984	18	1	17	0	38
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.18	0.21	0.16	7	12203	41	13	23	5	26
3JYX_3	5S_rRNA links to Rfam database...	0.34	0.37	0.31	10	6296	24	9	13	2	17
3LA5_A	Purine links to Rfam database...	0.80	0.65	1.00	22	2463	0	0	0	0	12
3NPB_A	SAM links to Rfam database...	0.76	0.67	0.86	31	6985	8	1	4	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.27	0.31	0.24	11	12357	38	11	24	3	24
3O58_2	5S_rRNA links to Rfam database...	0.83	0.74	0.93	28	7230	3	0	2	1	10
3PDR_A	ykoK links to Rfam database...	0.54	0.44	0.65	32	12831	19	0	17	2	40
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.65	0.52	0.81	22	3889	5	0	5	0	20
3UZL_B	tRNA links to Rfam database...	0.75	0.59	0.96	22	3547	1	0	1	0	15
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.71	0.63	0.81	25	4722	7	0	6	1	15
3ZEX_C	5_8S_rRNA links to Rfam database...	0.07	0.08	0.07	4	14141	54	4	47	3	48
3ZEX_D	5S_rRNA links to Rfam database...	0.27	0.24	0.30	12	6981	28	0	28	0	37
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.25	8	11749	36	3	21	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4AOB_A	SAM links to Rfam database...	0.17	0.14	0.21	6	4343	23	1	21	1	36
4ENB_A	crcB links to Rfam database...	0.83	0.79	0.88	15	1258	2	1	1	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.48	0.38	0.63	12	3467	7	0	7	0	20
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.42	0.63	15	5127	9	1	8	0	21
4JF2_A	preQ1-II links to Rfam database...	0.81	0.77	0.86	24	2822	4	3	1	0	7

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	254762
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	1771

Total Scores
MCC	0.025
Average MCC ± 95% Confidence Intervals	0.004 ± 0.007
Sensitivity	0.002
Positive Predictive Value	0.375
Nr of predictions	50

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.00	0.00	0.00	0	406	0	0	0	0	11
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	17
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	28
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	27
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
2ZZN_D	tRNA links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	27
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	28
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2701	0	0	0	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	27
3G4S_9	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7381	0	0	0	0	57
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	30
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	23
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	30
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7875	0	0	0	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	28
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	36
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	50
3J3V_B	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	57
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3570	0	0	0	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14196	0	0	0	0	52
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.19	0.10	0.38	3	2842	5	0	5	0	28

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
