Overview

Metric	ProbKnot		RNAsubopt
MCC	0.515	>	0.510
Average MCC ± 95% Confidence Intervals	0.504 ± 0.071	>	0.498 ± 0.068
Sensitivity	0.458	>	0.454
Positive Predictive Value	0.583	>	0.576
Total TP	1113	>	1104
Total TN	537431	>	537422
Total FP	898	<	912
Total FP CONTRA	106	>	99
Total FP INCONS	689	<	714
Total FP COMP	103	>	99
Total FN	1317	<	1326
P-value	5.62644058675e-08

^top

Performance plots

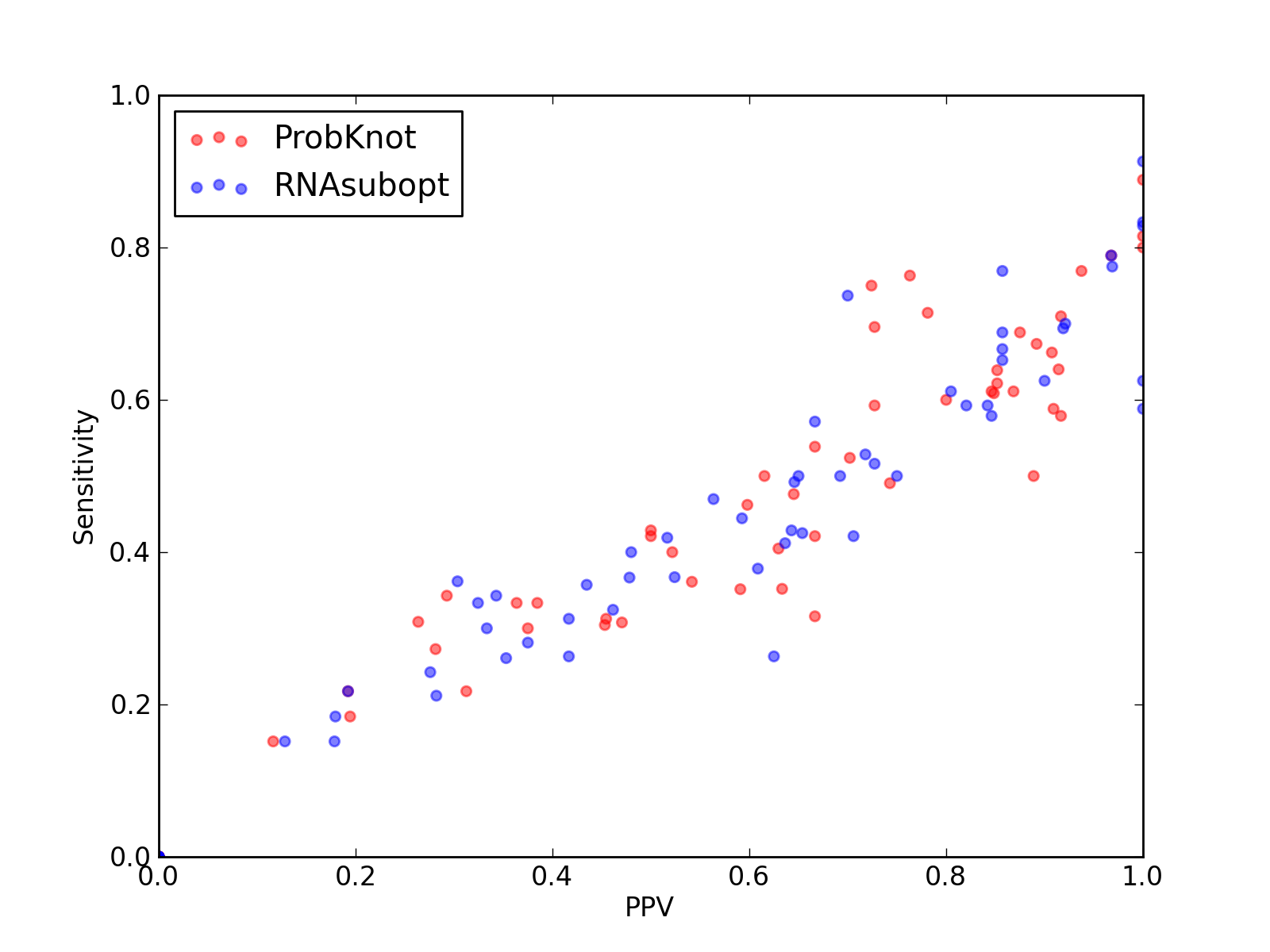

Comparison of performance of ProbKnot and RNAsubopt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and RNAsubopt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and RNAsubopt).

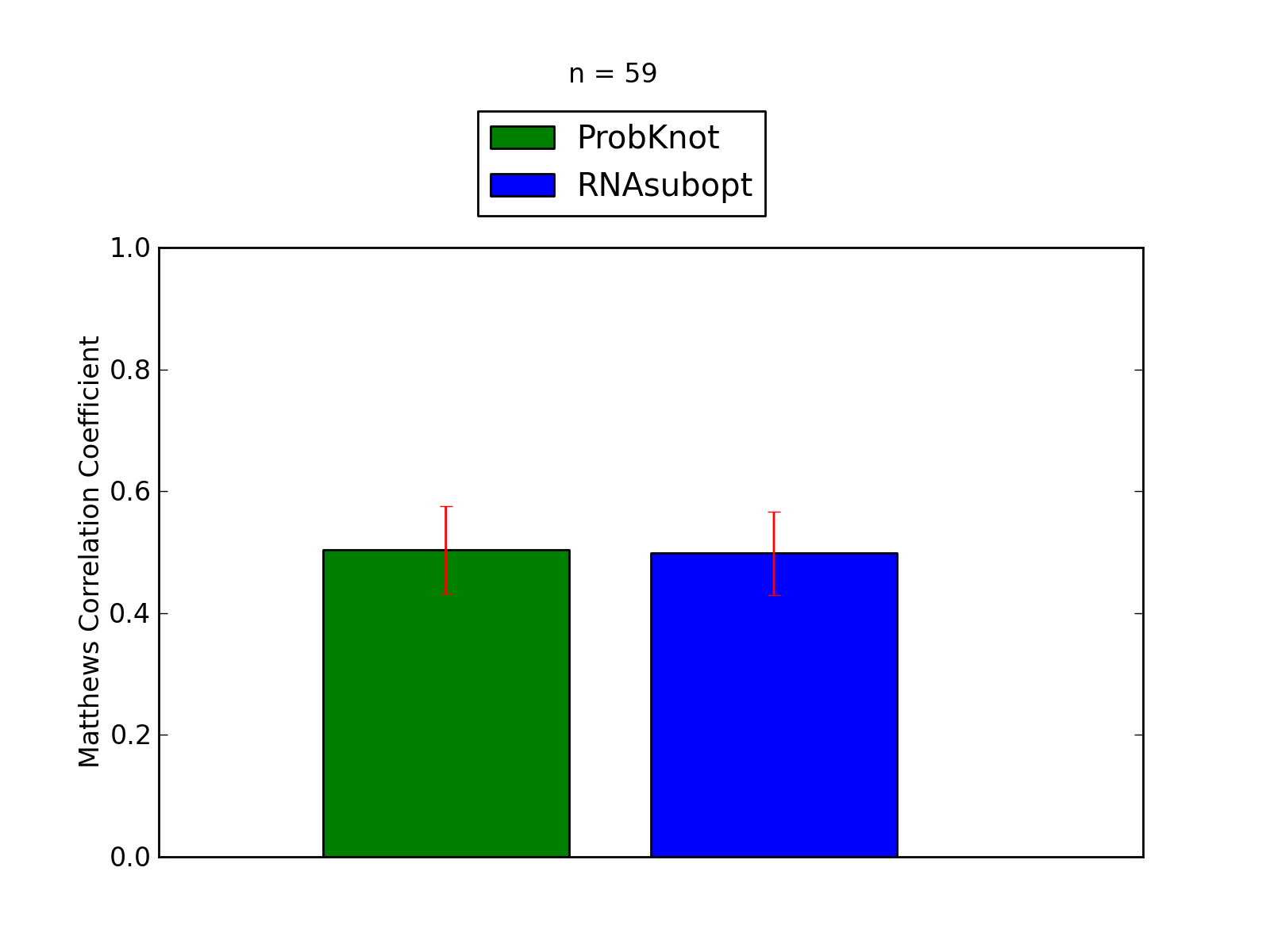

Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and RNAsubopt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and RNAsubopt).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1113
Total TN	537431
Total FP	898
Total FP CONTRA	106
Total FP INCONS	689
Total FP COMP	103
Total FN	1317

Total Scores
MCC	0.515
Average MCC ± 95% Confidence Intervals	0.504 ± 0.071
Sensitivity	0.458
Positive Predictive Value	0.583
Nr of predictions	59

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.69	0.60	0.80	24	5121	11	2	4	5	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.45	0.32	0.67	6	621	3	0	3	0	13
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LKR_A	-	0.85	0.77	0.94	30	6073	4	0	2	2	9
2M58_A	-	-0.01	0.00	0.00	0	1638	15	0	15	0	17
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
3AKZ_H	tRNA links to Rfam database...	0.73	0.75	0.72	21	2672	8	4	4	0	7
3AM1_B	-	0.74	0.71	0.78	25	3208	7	1	6	0	10
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60616	85	22	59	4	65
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3J0L_2	-	0.27	0.27	0.28	9	6184	26	2	21	3	24
3J0L_g	-	-0.01	0.00	0.00	0	458	7	2	5	0	4
3J0L_a	-	0.55	0.50	0.62	8	1115	5	2	3	0	8
3J0L_7	-	-0.01	0.00	0.00	0	1212	13	0	13	0	17
3J16_L	tRNA links to Rfam database...	0.35	0.33	0.38	10	2749	16	1	15	0	20
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	7	0	6	1	7
3J2C_O	-	0.60	0.52	0.70	33	10249	15	0	14	1	30
3J2C_M	-	0.37	0.30	0.45	63	106352	79	9	67	3	144
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	0	9	2	27
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.35	0.63	19	7110	11	0	11	0	35
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7476	37	3	24	10	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.36	12	12213	35	3	18	14	24
3J3F_7	5S_rRNA links to Rfam database...	0.76	0.64	0.91	32	7225	3	0	3	0	18
3J3V_B	5S_rRNA links to Rfam database...	0.53	0.42	0.67	24	6985	12	1	11	0	33
3NDB_M	-	0.77	0.69	0.88	42	9132	7	0	6	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3U4M_B	-	0.45	0.35	0.59	13	3138	9	1	8	0	24
3UZL_B	tRNA links to Rfam database...	0.73	0.62	0.85	23	3543	4	0	4	0	14
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	4	25	0	31
3ZEX_G	-	0.77	0.66	0.91	49	16417	10	0	5	5	25
3ZEX_E	-	0.00	0.00	0.00	0	21886	61	2	57	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.67	0.89	33	6984	4	0	4	0	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	16	14162	21	2	16	3	36
3ZEX_F	-	0.00	0.00	0.00	0	2620	11	2	6	3	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	24	1	20	3	18
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4FNJ_A	-	0.66	0.50	0.89	8	586	1	0	1	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.37	0.31	0.45	10	3464	12	3	9	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.44	0.36	0.54	13	5127	11	2	9	0	23
4JF2_A	preQ1-II links to Rfam database...	0.80	0.71	0.92	22	2826	2	2	0	0	9
4JRC_A	-	0.25	0.22	0.31	5	1524	11	0	11	0	18

^top

Performance of RNAsubopt - scored lower in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	1104
Total TN	537422
Total FP	912
Total FP CONTRA	99
Total FP INCONS	714
Total FP COMP	99
Total FN	1326

Total Scores
MCC	0.510
Average MCC ± 95% Confidence Intervals	0.498 ± 0.068
Sensitivity	0.454
Positive Predictive Value	0.576
Nr of predictions	59

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.52	0.43	0.65	17	5125	12	3	6	3	23
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LKR_A	-	0.81	0.77	0.86	30	6070	9	0	5	4	9
2M58_A	-	0.51	0.41	0.64	7	1642	4	1	3	0	10
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
3AKZ_H	tRNA links to Rfam database...	0.39	0.36	0.43	10	2678	13	2	11	0	18
3AM1_B	-	0.91	0.83	1.00	29	3211	0	0	0	0	6
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3IYQ_A	tmRNA links to Rfam database...	0.33	0.36	0.30	34	60614	82	17	61	4	60
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.56	62	70766	49	8	40	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_2	-	0.25	0.24	0.28	8	6187	25	0	21	4	25
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_a	-	0.35	0.31	0.42	5	1116	7	1	6	0	11
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J16_L	tRNA links to Rfam database...	0.41	0.37	0.48	11	2752	12	1	11	0	19
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	2	0	0	2	2
3J2C_O	-	0.56	0.49	0.65	31	10248	17	1	16	0	32
3J2C_M	-	0.44	0.37	0.52	76	106346	72	8	61	3	131
3J2L_3	5S_rRNA links to Rfam database...	0.61	0.53	0.72	28	7836	13	0	11	2	25
3J3D_C	tRNA links to Rfam database...	0.61	0.57	0.67	16	2751	8	0	8	0	12
3J3E_7	5S_rRNA links to Rfam database...	0.59	0.50	0.69	27	7101	12	1	11	0	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	7475	32	2	21	9	28
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.32	12	12209	39	4	21	14	24
3J3F_7	5S_rRNA links to Rfam database...	0.80	0.70	0.92	35	7222	4	0	3	1	15
3J3V_B	5S_rRNA links to Rfam database...	0.54	0.42	0.71	24	6987	10	1	9	0	33
3NDB_M	-	0.77	0.69	0.86	42	9131	8	0	7	1	19
3NKB_B	-	0.57	0.50	0.65	13	1996	7	0	7	0	13
3NPB_A	SAM links to Rfam database...	0.75	0.65	0.86	30	6986	7	1	4	2	16
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	28	7220	13	4	8	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_H	-	0.18	0.18	0.18	7	9006	32	6	26	0	31
3ZEX_G	-	0.46	0.42	0.52	31	16411	32	3	26	3	43
3ZEX_E	-	0.00	0.00	0.00	0	21893	54	4	48	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	42	1	27	14	41
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4AOB_A	SAM links to Rfam database...	0.52	0.43	0.64	18	4343	11	2	8	1	24
4ATO_G	-	0.30	0.30	0.33	3	519	6	2	4	0	7
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	0	7	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.44	0.59	16	5124	11	3	8	0	20
4JF2_A	preQ1-II links to Rfam database...	0.61	0.52	0.73	16	2828	6	3	3	0	15
4JRC_A	-	0.29	0.26	0.35	6	1523	11	0	11	0	17

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
