Overview

Metric	RNAalifold(seed)		Contrafold
MCC	0.606	>	0.565
Average MCC ± 95% Confidence Intervals	0.527 ± 0.084	<	0.601 ± 0.098
Sensitivity	0.427	<	0.499
Positive Predictive Value	0.861	>	0.642
Total TP	735	<	859
Total TN	1386978	>	1386494
Total FP	136	<	545
Total FP CONTRA	18	<	69
Total FP INCONS	101	<	410
Total FP COMP	17	<	66
Total FN	988	>	864
P-value	1.10039559051e-07

^top

Performance plots

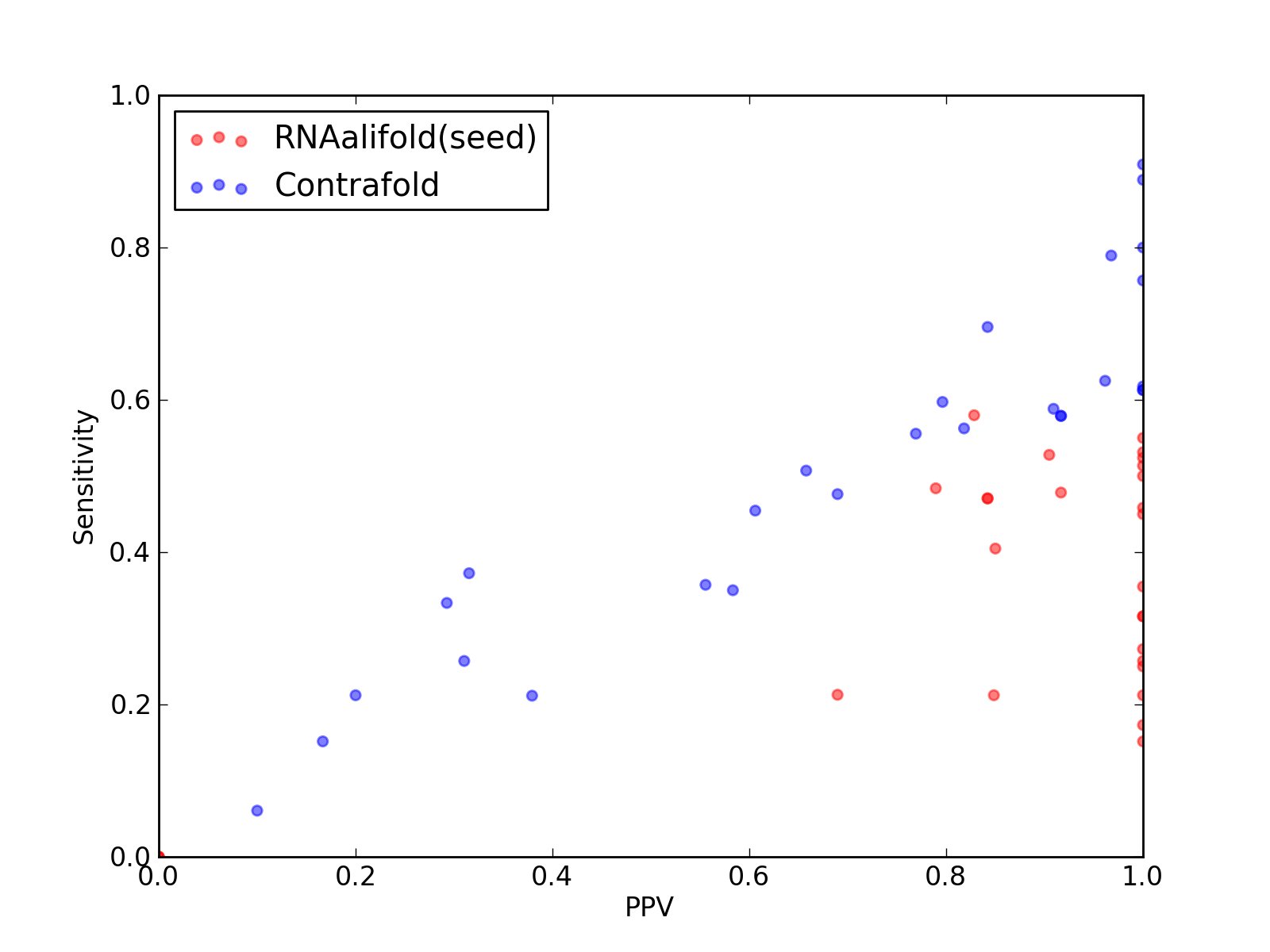

Comparison of performance of RNAalifold(seed) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).

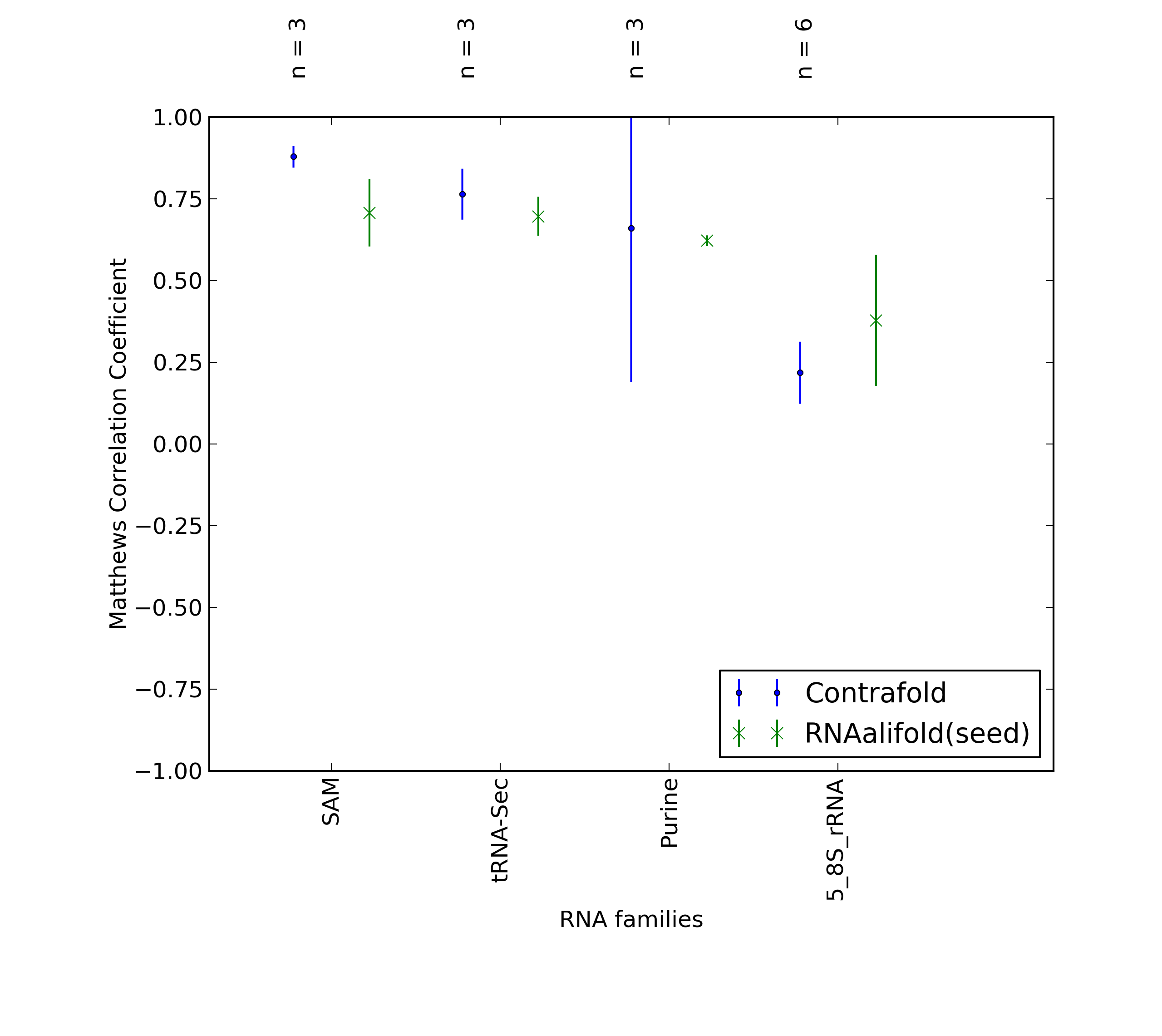

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	735
Total TN	1386978
Total FP	136
Total FP CONTRA	18
Total FP INCONS	101
Total FP COMP	17
Total FN	988

Total Scores
MCC	0.606
Average MCC ± 95% Confidence Intervals	0.527 ± 0.084
Sensitivity	0.427
Positive Predictive Value	0.861
Nr of predictions	28

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.71	0.51	1.00	19	3636	0	0	0	0	18
3GX2_A	SAM links to Rfam database...	0.74	0.55	1.00	22	4349	1	0	0	1	18
3IVN_B	Purine links to Rfam database...	0.61	0.48	0.79	15	2327	4	2	2	0	16
3IYQ_A	tmRNA links to Rfam database...	0.38	0.21	0.69	20	60697	13	5	4	4	74
3IZ4_A	tmRNA links to Rfam database...	0.42	0.21	0.85	28	70843	5	1	4	0	104
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.69	0.58	0.83	367	1116322	80	5	71	4	266
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	9	12237	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2466	3	1	2	0	18
3NPB_A	SAM links to Rfam database...	0.66	0.48	0.92	22	6997	3	1	1	1	24
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.68	0.46	1.00	33	12847	1	0	0	1	39
3RKF_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2192	3	1	2	0	18
3SD1_A	THF links to Rfam database...	0.58	0.40	0.85	17	3896	3	1	2	0	25
3W1K_J	tRNA-Sec links to Rfam database...	0.71	0.50	1.00	19	4167	0	0	0	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.45	1.00	18	4735	1	0	0	1	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.17	1.00	9	14187	0	0	0	0	43
4A1C_2	5_8S_rRNA links to Rfam database...	0.39	0.15	1.00	5	11776	2	0	0	2	28
4AOB_A	SAM links to Rfam database...	0.72	0.52	1.00	22	4349	1	0	0	1	20
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.73	0.53	1.00	17	3469	0	0	0	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.69	0.53	0.90	19	5130	2	1	1	0	17
4JF2_A	preQ1-II links to Rfam database...	0.59	0.35	1.00	11	2839	0	0	0	0	20

^top

Performance of Contrafold - scored lower in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	859
Total TN	1386494
Total FP	545
Total FP CONTRA	69
Total FP INCONS	410
Total FP COMP	66
Total FN	864

Total Scores
MCC	0.565
Average MCC ± 95% Confidence Intervals	0.601 ± 0.098
Sensitivity	0.499
Positive Predictive Value	0.642
Nr of predictions	28

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.45	0.35	0.58	7	1528	5	2	3	0	13
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.34	0.37	0.32	35	60615	80	21	55	4	59
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.61	60	70777	44	4	35	5	72
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.58	0.51	0.66	321	1116277	172	10	157	5	312
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.10	2	7483	32	1	17	14	31
3J3F_8	5_8S_rRNA links to Rfam database...	0.31	0.33	0.29	12	12205	41	4	25	12	24
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.20	7	12211	35	6	22	7	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	32	6983	8	1	5	2	14
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.26	0.31	9	12374	20	3	17	0	26
3PDR_A	ykoK links to Rfam database...	0.69	0.60	0.80	43	12826	13	0	11	2	29
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.57	0.48	0.69	20	3887	9	2	7	0	22
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.28	0.21	0.38	11	14167	22	3	15	4	41
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	33	5	20	8	28
4AOB_A	SAM links to Rfam database...	0.44	0.36	0.56	15	4344	13	1	11	1	27
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.68	0.56	0.82	18	3464	4	1	3	0	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.65	0.56	0.77	20	5125	6	1	5	0	16
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
