Overview

Metric	RNAalifold(seed)		Mastr(seed)
MCC	0.549	>	0.032
Average MCC ± 95% Confidence Intervals	0.520 ± 0.086	>	0.007 ± 0.014
Sensitivity	0.338	>	0.003
Positive Predictive Value	0.895	>	0.375
Total TP	368	>	3
Total TN	270656	<	271059
Total FP	56	>	5
Total FP CONTRA	13	>	0
Total FP INCONS	30	>	5
Total FP COMP	13	>	0
Total FN	722	<	1087
P-value	5.19332990918e-08

^top

Performance plots

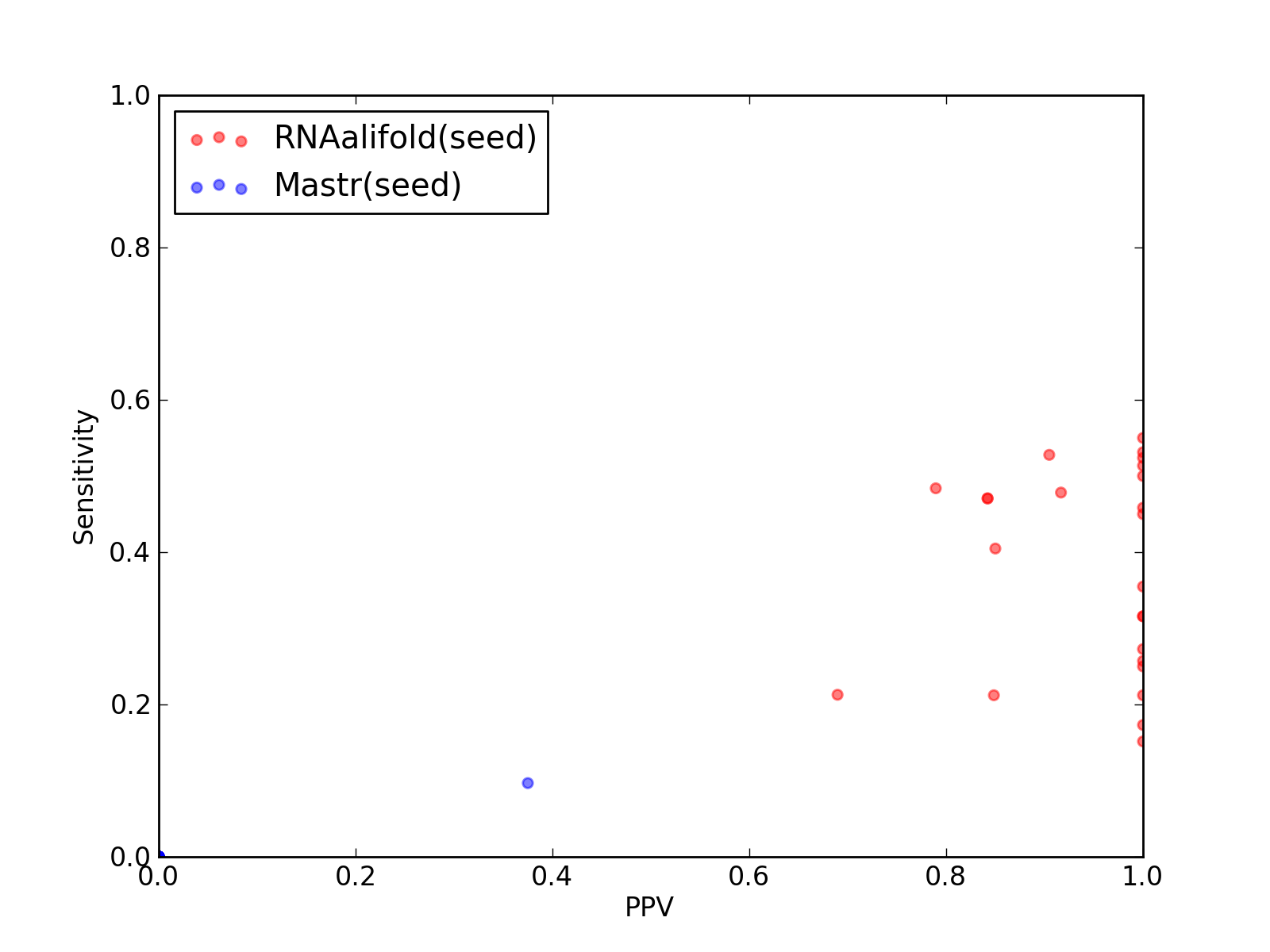

Comparison of performance of RNAalifold(seed) and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and Mastr(seed)).

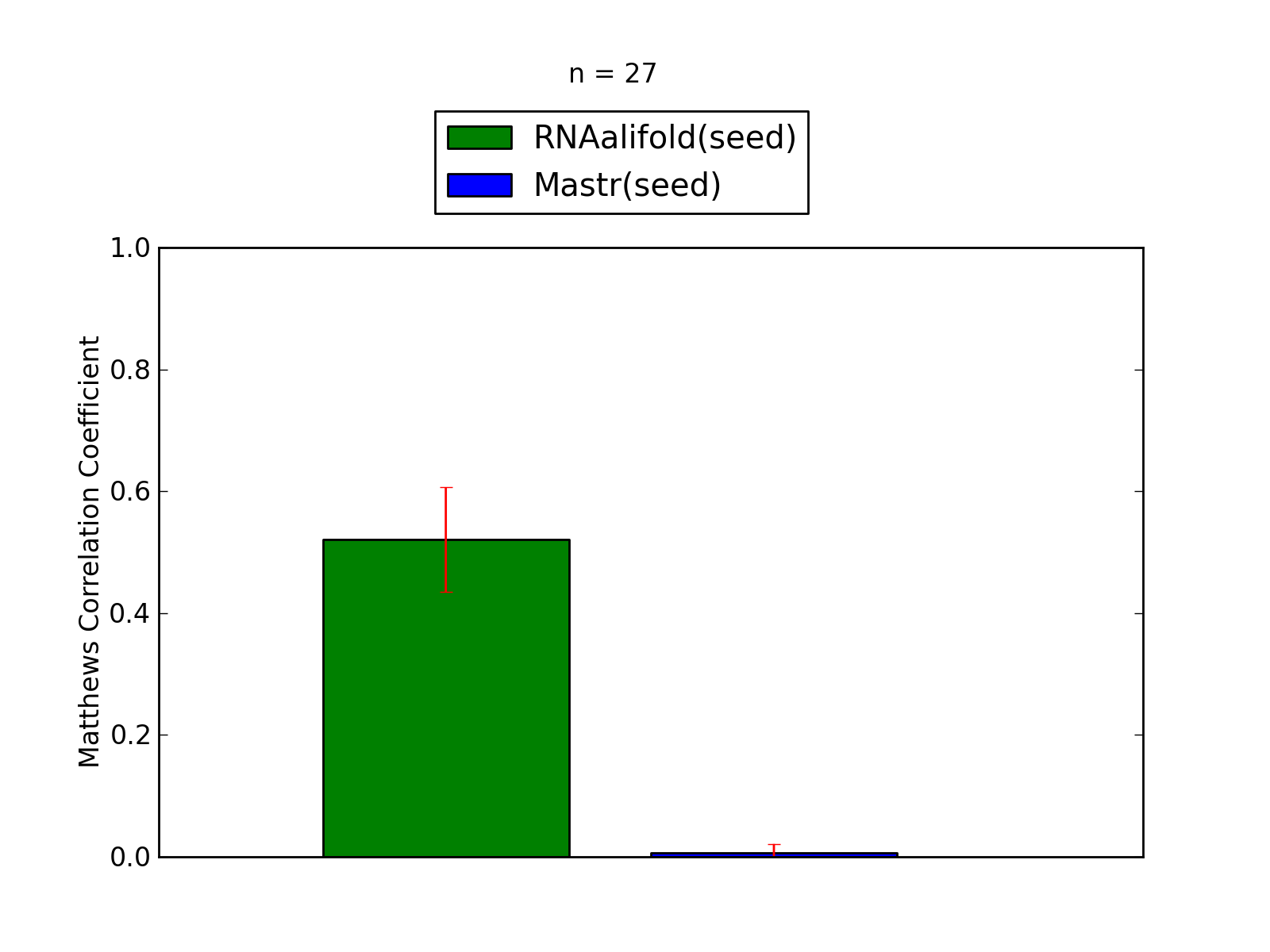

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and Mastr(seed)).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	368
Total TN	270656
Total FP	56
Total FP CONTRA	13
Total FP INCONS	30
Total FP COMP	13
Total FN	722

Total Scores
MCC	0.549
Average MCC ± 95% Confidence Intervals	0.520 ± 0.086
Sensitivity	0.338
Positive Predictive Value	0.895
Nr of predictions	27

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.71	0.51	1.00	19	3636	0	0	0	0	18
3GX2_A	SAM links to Rfam database...	0.74	0.55	1.00	22	4349	1	0	0	1	18
3IVN_B	Purine links to Rfam database...	0.61	0.48	0.79	15	2327	4	2	2	0	16
3IYQ_A	tmRNA links to Rfam database...	0.38	0.21	0.69	20	60697	13	5	4	4	74
3IZ4_A	tmRNA links to Rfam database...	0.42	0.21	0.85	28	70843	5	1	4	0	104
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	9	12237	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2466	3	1	2	0	18
3NPB_A	SAM links to Rfam database...	0.66	0.48	0.92	22	6997	3	1	1	1	24
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.68	0.46	1.00	33	12847	1	0	0	1	39
3RKF_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2192	3	1	2	0	18
3SD1_A	THF links to Rfam database...	0.58	0.40	0.85	17	3896	3	1	2	0	25
3W1K_J	tRNA-Sec links to Rfam database...	0.71	0.50	1.00	19	4167	0	0	0	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.45	1.00	18	4735	1	0	0	1	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.17	1.00	9	14187	0	0	0	0	43
4A1C_2	5_8S_rRNA links to Rfam database...	0.39	0.15	1.00	5	11776	2	0	0	2	28
4AOB_A	SAM links to Rfam database...	0.72	0.52	1.00	22	4349	1	0	0	1	20
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.73	0.53	1.00	17	3469	0	0	0	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.69	0.53	0.90	19	5130	2	1	1	0	17
4JF2_A	preQ1-II links to Rfam database...	0.59	0.35	1.00	11	2839	0	0	0	0	20

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	271059
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	1087

Total Scores
MCC	0.032
Average MCC ± 95% Confidence Intervals	0.007 ± 0.014
Sensitivity	0.003
Positive Predictive Value	0.375
Nr of predictions	27

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.00	0.00	0.00	0	406	0	0	0	0	11
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IYQ_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	60726	0	0	0	0	94
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	70876	0	0	0	0	132
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	36
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14196	0	0	0	0	52
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.19	0.10	0.38	3	2842	5	0	5	0	28

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
