Overview

Metric	RNAfold		McQFold
MCC	0.438	>	0.363
Average MCC ± 95% Confidence Intervals	0.509 ± 0.054	>	0.484 ± 0.064
Sensitivity	0.390	>	0.287
Positive Predictive Value	0.493	>	0.459
Total TP	2968	>	2185
Total TN	15811761	<	15813026
Total FP	3298	>	2681
Total FP CONTRA	392	>	220
Total FP INCONS	2665	>	2355
Total FP COMP	241	>	106
Total FN	4638	<	5421
P-value	3.56938820447e-08

^top

Performance plots

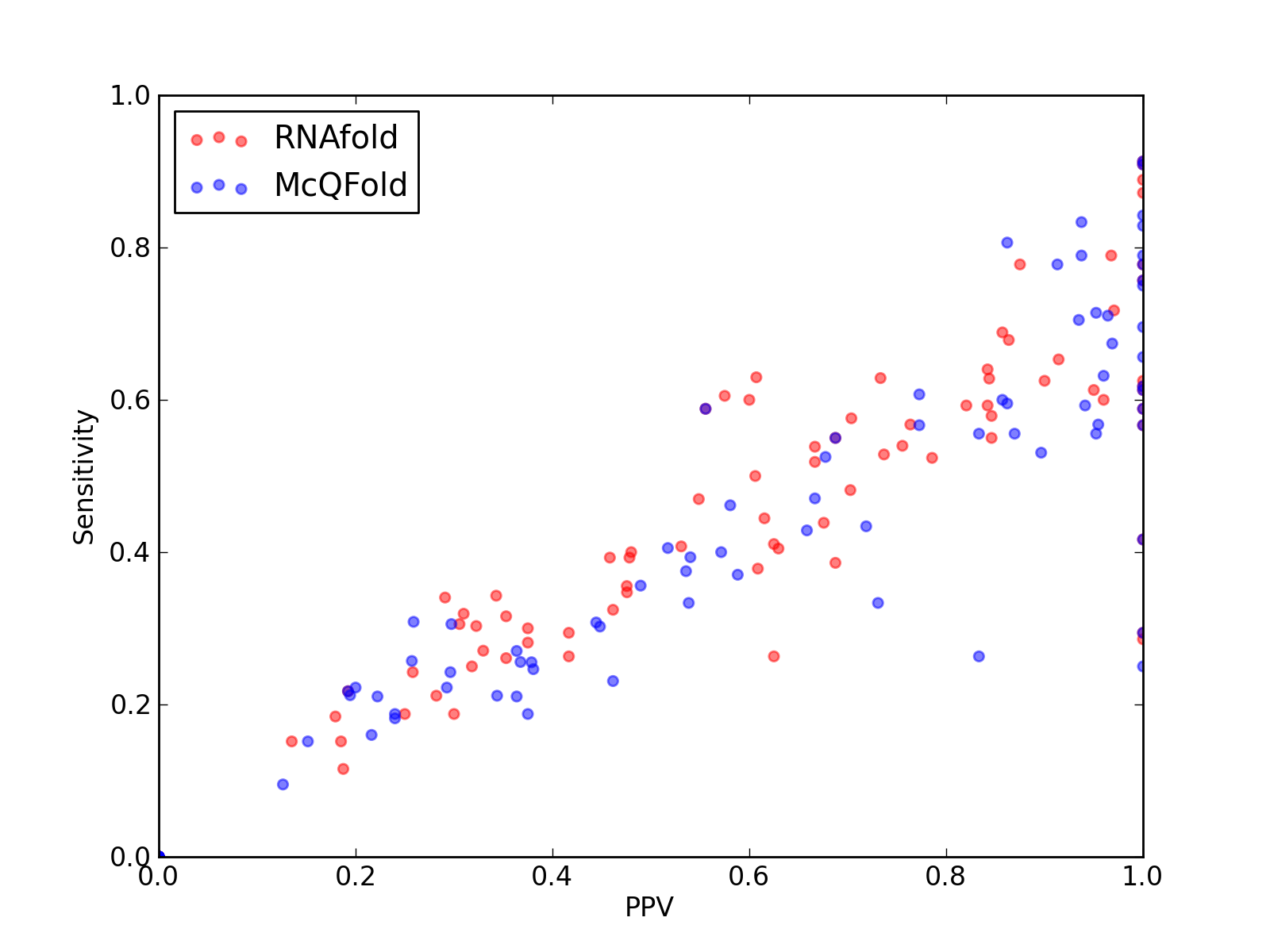

Comparison of performance of RNAfold and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and McQFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and McQFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and McQFold).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	2968
Total TN	15811761
Total FP	3298
Total FP CONTRA	392
Total FP INCONS	2665
Total FP COMP	241
Total FN	4638

Total Scores
MCC	0.438
Average MCC ± 95% Confidence Intervals	0.509 ± 0.054
Sensitivity	0.390
Positive Predictive Value	0.493
Nr of predictions	87

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LKR_A	-	0.93	0.87	1.00	34	6071	3	0	0	3	5
2M58_A	-	0.34	0.29	0.42	5	1641	7	1	6	0	12
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WDL_A	-	0.41	0.36	0.48	428	3937321	473	27	445	1	776
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.33	0.32	0.35	12	4152	22	0	22	0	26
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.51	0.39	0.69	22	7349	10	1	9	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60616	80	24	54	2	62
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.67	28	6861	14	1	13	0	26
3J0L_a	-	0.23	0.19	0.30	3	1118	7	1	6	0	13
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	2	0	0	2	2
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.46	0.41	0.53	258	1116279	231	14	214	3	375
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J2C_M	-	0.51	0.41	0.63	85	106355	54	8	43	3	122
3J2C_O	-	0.64	0.54	0.76	34	10251	12	0	11	1	29
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3J3D_C	tRNA links to Rfam database...	0.28	0.25	0.32	7	2753	15	1	14	0	21
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.15	0.19	5	7476	31	2	20	9	28
3J3E_7	5S_rRNA links to Rfam database...	0.58	0.48	0.70	26	7103	11	1	10	0	28
3J3F_8	5_8S_rRNA links to Rfam database...	0.30	0.31	0.31	11	12210	39	4	21	14	25
3J3F_7	5S_rRNA links to Rfam database...	0.73	0.64	0.84	32	7222	7	0	6	1	18
3J3V_B	5S_rRNA links to Rfam database...	0.54	0.44	0.68	25	6984	12	1	11	0	32
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_5	-	0.31	0.32	0.31	285	5021945	718	179	456	83	608
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.32	10	12215	33	5	16	12	23
3KIY_A	-	0.41	0.35	0.48	431	4053222	484	22	453	9	810
3KTW_C	-	0.73	0.63	0.84	27	4528	6	2	3	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.77	0.69	0.86	42	9131	8	0	7	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.83	0.72	0.97	33	6987	4	0	1	3	13
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3O58_2	5S_rRNA links to Rfam database...	0.59	0.61	0.58	23	7220	19	4	13	2	15
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.55	0.50	0.61	20	4720	14	1	12	1	20
3ZEX_G	-	0.66	0.57	0.76	42	16416	18	0	13	5	32
3ZEX_E	-	0.00	0.00	0.00	0	21893	54	4	48	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
3ZEX_B	-	0.30	0.27	0.33	151	1071922	318	35	272	11	407
3ZEX_H	-	0.18	0.18	0.18	7	9006	32	6	26	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	42	1	27	14	41
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	22	1	20	1	18
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11744	43	5	27	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.52	0.44	0.62	16	5125	10	2	8	0	20
4JF2_A	preQ1-II links to Rfam database...	0.76	0.61	0.95	19	2830	1	0	1	0	12
4JRC_A	-	0.29	0.26	0.35	6	1523	11	0	11	0	17

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	2185
Total TN	15813026
Total FP	2681
Total FP CONTRA	220
Total FP INCONS	2355
Total FP COMP	106
Total FN	5421

Total Scores
MCC	0.363
Average MCC ± 95% Confidence Intervals	0.484 ± 0.064
Sensitivity	0.287
Positive Predictive Value	0.459
Nr of predictions	87

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	0.49	0.25	1.00	5	625	0	0	0	0	15
2KRL_A	-	0.59	0.53	0.68	21	5120	13	3	7	3	19
2KX8_A	7SK links to Rfam database...	0.88	0.83	0.94	15	845	1	0	1	0	3
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LKR_A	-	0.51	0.46	0.58	18	6074	13	2	11	0	21
2M58_A	-	0.56	0.47	0.67	8	1641	4	1	3	0	9
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WDL_A	-	0.31	0.26	0.37	308	3937383	531	27	503	1	896
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_D	-	0.32	0.23	0.46	6	1940	7	2	5	0	20
2WW9_F	-	0.71	0.60	0.86	6	293	1	0	1	0	4
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	28
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.24	6	3461	19	2	17	0	26
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	1	0	0	1	6
3AKZ_H	tRNA links to Rfam database...	0.68	0.61	0.77	17	2679	6	1	4	1	11
3AM1_B	-	0.91	0.83	1.00	29	3211	1	0	0	1	6
3AMU_B	tRNA links to Rfam database...	0.75	0.59	0.94	16	2986	3	0	1	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.27	0.21	0.36	12	7348	21	1	20	0	45
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.57	16	4343	13	1	11	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.20	0.18	0.24	6	4253	19	2	17	0	27
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60614	87	19	64	4	65
3IZ4_A	tmRNA links to Rfam database...	0.42	0.36	0.49	47	70780	53	6	43	4	85
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	6867	6	0	6	0	24
3J0L_a	-	0.26	0.19	0.38	3	1120	5	1	4	0	13
3J0L_2	-	0.26	0.24	0.30	8	6189	21	0	19	2	25
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1215	10	0	10	0	17
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.46	0.39	0.54	249	1116304	216	8	204	4	384
3J20_0	tRNA links to Rfam database...	0.66	0.57	0.77	17	2828	6	1	4	1	13
3J2C_M	-	0.31	0.25	0.38	51	106357	86	12	71	3	156
3J2C_O	-	0.53	0.43	0.66	27	10255	15	1	13	1	36
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3J3D_C	tRNA links to Rfam database...	0.82	0.71	0.95	20	2754	1	0	1	0	8
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7479	36	3	21	12	33
3J3E_7	5S_rRNA links to Rfam database...	0.46	0.37	0.59	20	7106	14	1	13	0	34
3J3F_8	5_8S_rRNA links to Rfam database...	0.30	0.31	0.30	11	12209	38	4	22	12	25
3J3F_7	5S_rRNA links to Rfam database...	0.18	0.16	0.22	8	7223	29	1	28	0	42
3J3V_B	5S_rRNA links to Rfam database...	0.49	0.33	0.73	19	6995	7	0	7	0	38
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_5	-	0.00	0.00	0.00	0	5022865	0	0	0	0	893
3JYX_3	5S_rRNA links to Rfam database...	0.21	0.22	0.20	6	6298	24	9	15	0	21
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.19	7	12210	33	8	21	4	26
3KIY_A	-	0.31	0.26	0.38	317	4053291	529	22	498	9	924
3KTW_C	-	0.36	0.30	0.45	13	4531	17	1	15	1	30
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.81	0.70	0.93	43	9134	4	1	2	1	18
3NKB_B	-	0.36	0.31	0.44	8	1998	10	1	9	0	18
3NPB_A	SAM links to Rfam database...	0.81	0.67	0.97	31	6989	4	1	0	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.26	0.26	0.26	9	12368	26	10	16	0	26
3O58_2	5S_rRNA links to Rfam database...	0.83	0.71	0.96	27	7232	2	0	1	1	11
3PDR_A	ykoK links to Rfam database...	0.69	0.56	0.87	40	12834	9	0	6	3	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.60	0.86	25	3887	4	0	4	0	17
3U4M_B	-	0.73	0.57	0.95	21	3138	1	0	1	0	16
3UZL_B	tRNA links to Rfam database...	0.45	0.41	0.52	15	3541	14	0	14	0	22
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.63	0.96	24	4161	1	1	0	0	14
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.54	15	4725	14	0	13	1	25
3ZEX_G	-	0.31	0.27	0.36	20	16416	38	1	34	3	54
3ZEX_E	-	0.00	0.00	0.00	0	21894	53	4	47	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.69	0.53	0.90	26	6992	3	1	2	0	23
3ZEX_B	-	0.11	0.09	0.13	53	1071960	373	32	335	6	505
3ZEX_H	-	0.21	0.21	0.22	8	9009	29	6	22	1	30
3ZEX_C	5_8S_rRNA links to Rfam database...	0.27	0.21	0.34	11	14164	24	2	19	3	41
3ZEX_F	-	0.00	0.00	0.00	0	2619	9	2	7	0	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.15	0.15	0.15	5	11748	33	5	23	5	28
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ATO_G	-	-0.01	0.00	0.00	0	523	5	0	5	0	10
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	-0.02	0.00	0.00	0	588	7	0	7	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4FRN_A	AdoCbl-variant links to Rfam database...	0.73	0.56	0.95	20	5130	1	1	0	0	16
4JF2_A	preQ1-II links to Rfam database...	0.83	0.81	0.86	25	2821	4	3	1	0	6
4JRC_A	-	0.83	0.70	1.00	16	1524	0	0	0	0	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

2. Individual counts for RNAfold [ download as .csv ]

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

2. Individual counts for McQFold [ download as .csv ]
