Overview

Metric	RNAshapes		Mastr(seed)
MCC	0.521	>	0.023
Average MCC ± 95% Confidence Intervals	0.547 ± 0.065	>	0.004 ± 0.007
Sensitivity	0.461	>	0.002
Positive Predictive Value	0.594	>	0.375
Total TP	921	>	3
Total TN	384821	<	386364
Total FP	738	>	5
Total FP CONTRA	76	>	0
Total FP INCONS	554	>	5
Total FP COMP	108	>	0
Total FN	1079	<	1997
P-value	3.56938820447e-08

^top

Performance plots

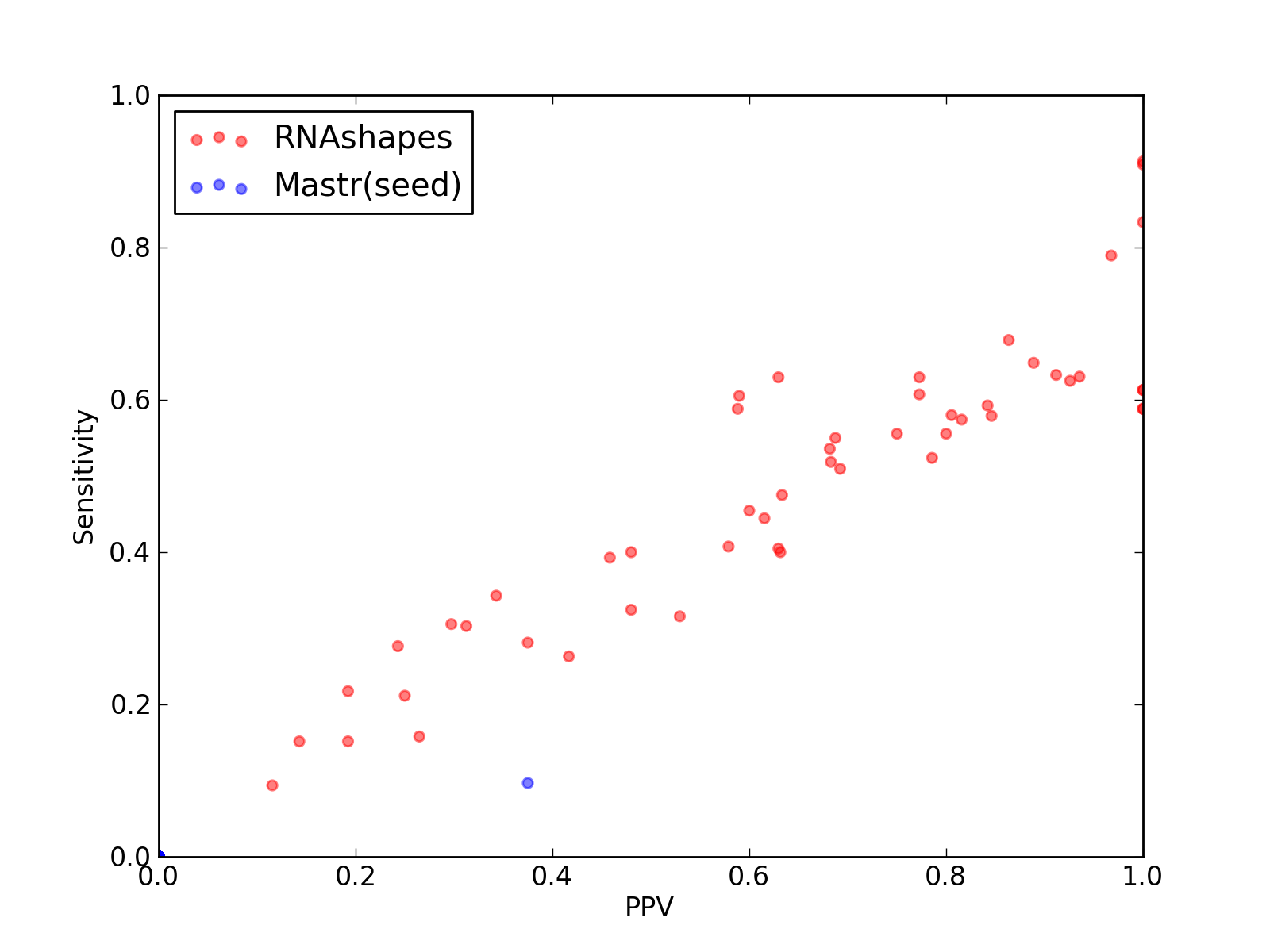

Comparison of performance of RNAshapes and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAshapes and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAshapes and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAshapes and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAshapes and Mastr(seed)).

^top

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	921
Total TN	384821
Total FP	738
Total FP CONTRA	76
Total FP INCONS	554
Total FP COMP	108
Total FN	1079

Total Scores
MCC	0.521
Average MCC ± 95% Confidence Intervals	0.547 ± 0.065
Sensitivity	0.461
Positive Predictive Value	0.594
Nr of predictions	52

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2WRQ_Y	tRNA links to Rfam database...	0.59	0.59	0.59	10	2833	12	4	3	5	7
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XQD_Y	tRNA links to Rfam database...	0.64	0.56	0.75	15	2830	5	0	5	0	12
2ZZM_B	tRNA links to Rfam database...	0.10	0.09	0.12	3	3460	23	0	23	0	29
2ZZN_D	tRNA links to Rfam database...	0.69	0.63	0.77	17	2463	5	1	4	0	10
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.76	0.65	0.89	24	3628	3	0	3	0	13
3AKZ_H	tRNA links to Rfam database...	0.68	0.61	0.77	17	2679	6	1	4	1	11
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.41	0.32	0.53	18	7347	16	1	15	0	39
3GX2_A	SAM links to Rfam database...	0.76	0.63	0.93	25	4344	3	0	2	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.26	0.28	0.24	26	60619	83	21	60	2	68
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.60	60	70776	45	6	34	5	72
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.68	28	6862	13	1	12	0	26
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.59	0.51	0.69	27	7836	14	0	12	2	26
3J3D_C	tRNA links to Rfam database...	0.60	0.54	0.68	15	2753	7	0	7	0	13
3J3E_7	5S_rRNA links to Rfam database...	0.48	0.41	0.58	22	7102	16	1	15	0	32
3J3E_8	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	7477	29	2	19	8	28
3J3F_8	5_8S_rRNA links to Rfam database...	0.30	0.31	0.30	11	12209	39	3	23	13	25
3J3F_7	5S_rRNA links to Rfam database...	0.68	0.58	0.81	29	7224	7	1	6	0	21
3J3V_B	5S_rRNA links to Rfam database...	0.20	0.16	0.26	9	6987	25	0	25	0	48
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3JYX_3	5S_rRNA links to Rfam database...	0.63	0.63	0.63	17	6301	21	1	9	11	10
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.77	0.63	0.94	29	6990	4	1	1	2	17
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3O58_2	5S_rRNA links to Rfam database...	0.60	0.61	0.59	23	7221	18	4	12	2	15
3PDR_A	ykoK links to Rfam database...	0.67	0.56	0.80	40	12830	12	0	10	2	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3UZL_B	tRNA links to Rfam database...	0.39	0.32	0.48	12	3545	13	2	11	0	25
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.55	0.48	0.63	19	4723	12	1	10	1	21
3ZEX_C	5_8S_rRNA links to Rfam database...	0.23	0.21	0.25	11	14152	41	1	32	8	41
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.63	0.91	31	6987	3	0	3	0	18
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	22	1	20	1	18
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.57	0.82	31	7102	7	1	6	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	5	25	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.52	0.44	0.62	16	5125	10	2	8	0	20
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	386364
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	1997

Total Scores
MCC	0.023
Average MCC ± 95% Confidence Intervals	0.004 ± 0.007
Sensitivity	0.002
Positive Predictive Value	0.375
Nr of predictions	52

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.00	0.00	0.00	0	406	0	0	0	0	11
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	17
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	28
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	27
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
2ZZN_D	tRNA links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	27
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	28
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2701	0	0	0	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	27
3G4S_9	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7381	0	0	0	0	57
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IYQ_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	60726	0	0	0	0	94
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	70876	0	0	0	0	132
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	30
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	30
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	23
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7875	0	0	0	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	28
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	36
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	50
3J3V_B	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	57
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3570	0	0	0	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14196	0	0	0	0	52
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	23
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.19	0.10	0.38	3	2842	5	0	5	0	28

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
