Overview

Metric	RNAshapes		Vsfold4
MCC	0.507	>	0.451
Average MCC ± 95% Confidence Intervals	0.508 ± 0.057	>	0.474 ± 0.060
Sensitivity	0.442	>	0.373
Positive Predictive Value	0.586	>	0.552
Total TP	1184	>	998
Total TN	469114	<	469326
Total FP	951	>	900
Total FP CONTRA	91	>	75
Total FP INCONS	746	>	736
Total FP COMP	114	>	89
Total FN	1494	<	1680
P-value	3.56938820447e-08

^top

Performance plots

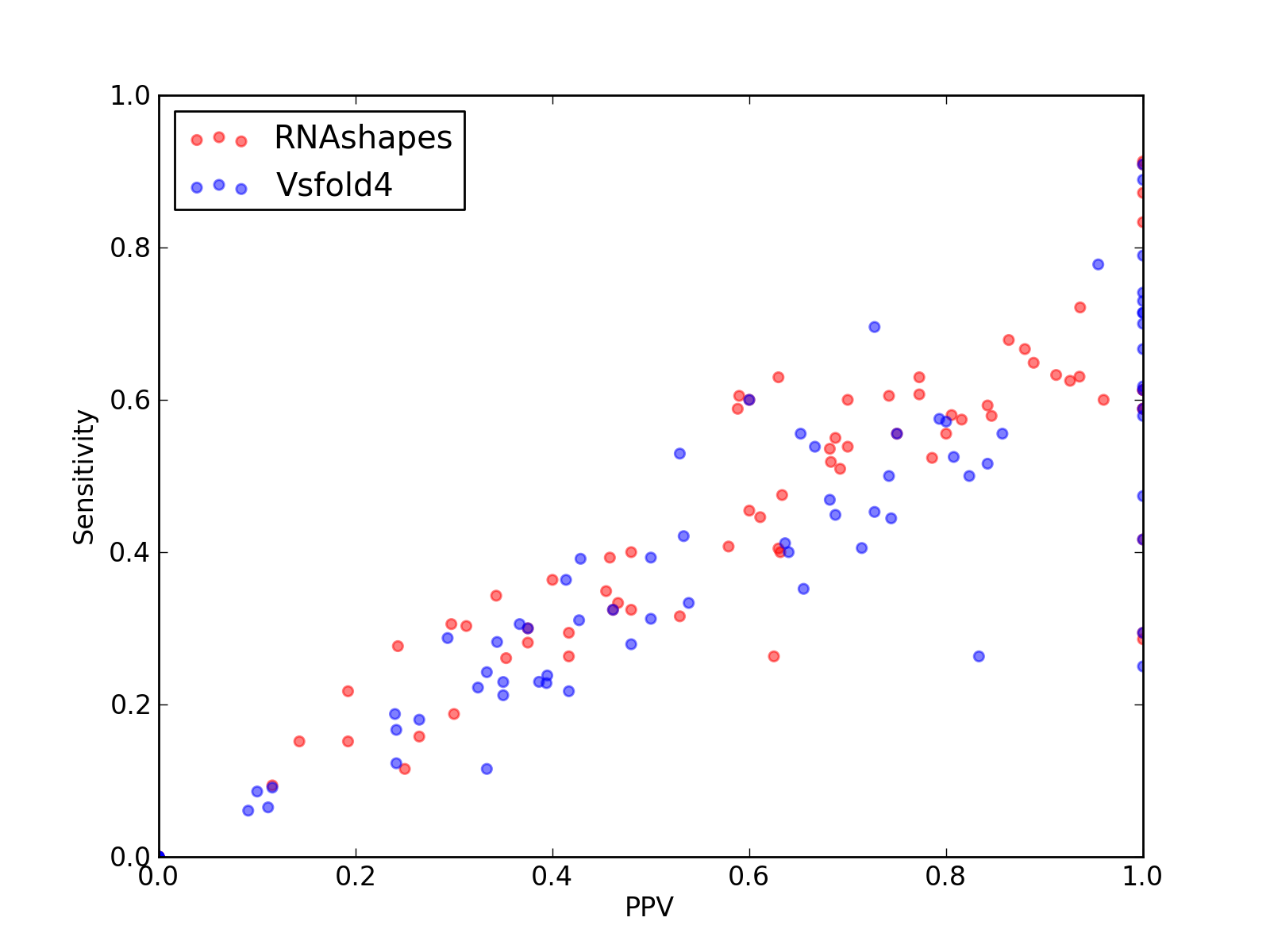

Comparison of performance of RNAshapes and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAshapes and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAshapes and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAshapes and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAshapes and Vsfold4).

^top

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	1184
Total TN	469114
Total FP	951
Total FP CONTRA	91
Total FP INCONS	746
Total FP COMP	114
Total FN	1494

Total Scores
MCC	0.507
Average MCC ± 95% Confidence Intervals	0.508 ± 0.057
Sensitivity	0.442
Positive Predictive Value	0.586
Nr of predictions	75

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LKR_A	-	0.93	0.87	1.00	34	6071	1	0	0	1	5
2M58_A	-	0.34	0.29	0.42	5	1641	7	1	6	0	12
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WRQ_Y	tRNA links to Rfam database...	0.59	0.59	0.59	10	2833	12	4	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.16	0.12	0.25	3	1941	9	4	5	0	23
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XQD_Y	tRNA links to Rfam database...	0.64	0.56	0.75	15	2830	5	0	5	0	12
2ZZM_B	tRNA links to Rfam database...	0.10	0.09	0.12	3	3460	23	0	23	0	29
2ZZN_D	tRNA links to Rfam database...	0.69	0.63	0.77	17	2463	5	1	4	0	10
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.76	0.65	0.89	24	3628	3	0	3	0	13
3ADB_C	-	0.67	0.61	0.74	23	4155	8	0	8	0	15
3AKZ_H	tRNA links to Rfam database...	0.68	0.61	0.77	17	2679	6	1	4	1	11
3AM1_B	-	0.64	0.60	0.70	21	3210	9	1	8	0	14
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.41	0.32	0.53	18	7347	16	1	15	0	39
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.76	0.63	0.93	25	4344	3	0	2	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.76	0.67	0.88	22	4253	3	0	3	0	11
3IYQ_A	tmRNA links to Rfam database...	0.26	0.28	0.24	26	60619	83	21	60	2	68
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.60	60	70776	45	6	34	5	72
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.68	28	6862	13	1	12	0	26
3J0L_a	-	0.23	0.19	0.30	3	1118	7	1	6	0	13
3J0L_2	-	0.38	0.36	0.40	12	6186	20	3	15	2	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J2C_O	-	0.39	0.33	0.47	21	10251	24	0	24	0	42
3J2L_3	5S_rRNA links to Rfam database...	0.59	0.51	0.69	27	7836	14	0	12	2	26
3J3D_C	tRNA links to Rfam database...	0.60	0.54	0.68	15	2753	7	0	7	0	13
3J3E_8	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	7477	29	2	19	8	28
3J3E_7	5S_rRNA links to Rfam database...	0.48	0.41	0.58	22	7102	16	1	15	0	32
3J3F_7	5S_rRNA links to Rfam database...	0.68	0.58	0.81	29	7224	7	1	6	0	21
3J3F_8	5_8S_rRNA links to Rfam database...	0.30	0.31	0.30	11	12209	39	3	23	13	25
3J3V_B	5S_rRNA links to Rfam database...	0.20	0.16	0.26	9	6987	25	0	25	0	48
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.63	0.63	0.63	17	6301	21	1	9	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3KTW_C	-	0.39	0.35	0.45	15	4527	19	1	17	1	28
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NDB_M	-	0.82	0.72	0.94	44	9133	4	0	3	1	17
3NKB_B	-	0.61	0.54	0.70	14	1996	6	0	6	0	12
3NPB_A	SAM links to Rfam database...	0.77	0.63	0.94	29	6990	4	1	1	2	17
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3O58_2	5S_rRNA links to Rfam database...	0.60	0.61	0.59	23	7221	18	4	12	2	15
3PDR_A	ykoK links to Rfam database...	0.67	0.56	0.80	40	12830	12	0	10	2	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.39	0.32	0.48	12	3545	13	2	11	0	25
3W3S_B	tRNA-Sec links to Rfam database...	0.55	0.48	0.63	19	4723	12	1	10	1	21
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.63	0.91	31	6987	3	0	3	0	18
3ZEX_G	-	0.52	0.45	0.61	33	16417	24	2	19	3	41
3ZEX_E	-	0.00	0.00	0.00	0	21888	59	3	54	2	77
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	22	1	20	1	18
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.57	0.82	31	7102	7	1	6	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	5	25	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12
4JRC_A	-	0.29	0.26	0.35	6	1523	11	0	11	0	17

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	998
Total TN	469326
Total FP	900
Total FP CONTRA	75
Total FP INCONS	736
Total FP COMP	89
Total FN	1680

Total Scores
MCC	0.451
Average MCC ± 95% Confidence Intervals	0.474 ± 0.060
Sensitivity	0.373
Positive Predictive Value	0.552
Nr of predictions	75

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	0.49	0.25	1.00	5	625	0	0	0	0	15
2KRL_A	-	0.65	0.53	0.81	21	5125	7	0	5	2	19
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2LKR_A	-	0.31	0.28	0.34	11	6073	21	3	18	0	28
2M58_A	-	-0.01	0.00	0.00	0	1647	6	0	6	0	17
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.19	0.12	0.33	3	1944	6	0	6	0	23
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.24	6	3461	19	0	19	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3ADB_C	-	0.89	0.79	1.00	30	4156	0	0	0	0	8
3AKZ_H	tRNA links to Rfam database...	0.67	0.57	0.80	16	2681	5	1	3	1	12
3AM1_B	-	0.84	0.71	1.00	25	3215	0	0	0	0	10
3AMU_B	tRNA links to Rfam database...	0.64	0.56	0.75	15	2983	7	0	5	2	12
3G4S_9	5S_rRNA links to Rfam database...	0.30	0.23	0.39	13	7348	20	1	19	0	44
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.50	0.40	0.64	16	4346	10	0	9	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.27	0.21	0.35	7	4258	13	1	12	0	26
3IYQ_A	tmRNA links to Rfam database...	0.29	0.29	0.29	27	60634	71	13	52	6	67
3IZ4_A	tmRNA links to Rfam database...	0.36	0.31	0.43	41	70780	59	7	48	4	91
3IZF_C	5S_rRNA links to Rfam database...	0.69	0.56	0.86	30	6868	5	0	5	0	24
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J0L_2	-	0.38	0.36	0.41	12	6187	18	3	14	1	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	0.51	0.41	0.64	7	1214	4	0	4	0	10
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2C_O	-	0.30	0.24	0.39	15	10258	24	0	23	1	48
3J2L_3	5S_rRNA links to Rfam database...	0.57	0.45	0.73	24	7842	12	1	8	3	29
3J3D_C	tRNA links to Rfam database...	0.44	0.39	0.50	11	2753	11	1	10	0	17
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.06	0.09	2	7481	32	2	18	12	31
3J3E_7	5S_rRNA links to Rfam database...	0.48	0.35	0.66	19	7111	10	0	10	0	35
3J3F_7	5S_rRNA links to Rfam database...	0.21	0.18	0.26	9	7226	25	0	25	0	41
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.31	0.37	11	12216	27	4	15	8	25
3J3V_B	5S_rRNA links to Rfam database...	0.17	0.12	0.24	7	6992	22	1	21	0	50
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.56	0.65	15	6305	11	4	4	3	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.10	0.09	0.12	3	12220	33	2	21	10	30
3KTW_C	-	0.36	0.28	0.48	12	4535	13	3	10	0	31
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.28	0.23	0.35	14	9140	26	0	26	0	47
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.61	0.50	0.74	23	6990	9	0	8	1	23
3O58_3	5_8S_rRNA links to Rfam database...	0.09	0.09	0.10	3	12373	35	5	22	8	32
3O58_2	5S_rRNA links to Rfam database...	0.47	0.42	0.53	16	7230	16	3	11	2	22
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.19	0.17	0.24	7	3887	22	1	21	0	35
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.53	0.41	0.71	15	3549	6	1	5	0	22
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.58	0.79	23	4724	7	0	6	1	17
3ZEX_D	5S_rRNA links to Rfam database...	0.55	0.45	0.69	22	6989	10	0	10	0	27
3ZEX_G	-	0.30	0.23	0.39	17	16427	27	2	25	0	57
3ZEX_E	-	0.08	0.06	0.11	5	21900	40	1	39	0	72
3ZND_W	tRNA links to Rfam database...	0.41	0.39	0.43	9	2982	14	2	10	2	14
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.28	0.24	0.33	8	11757	28	0	16	12	25
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1317	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4JF2_A	preQ1-II links to Rfam database...	0.66	0.52	0.84	16	2831	3	0	3	0	15
4JRC_A	-	0.29	0.22	0.42	5	1528	7	0	7	0	18

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

2. Individual counts for RNAshapes [ download as .csv ]

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

2. Individual counts for Vsfold4 [ download as .csv ]
