Overview

Metric	Sfold		Afold
MCC	0.429	>	0.408
Average MCC ± 95% Confidence Intervals	0.504 ± 0.074	>	0.476 ± 0.076
Sensitivity	0.361	<	0.368
Positive Predictive Value	0.511	>	0.453
Total TP	2027	<	2068
Total TN	14428406	>	14427815
Total FP	2101	<	2672
Total FP CONTRA	273	<	352
Total FP INCONS	1670	<	2141
Total FP COMP	158	<	179
Total FN	3592	>	3551
P-value	3.56938820447e-08

^top

Performance plots

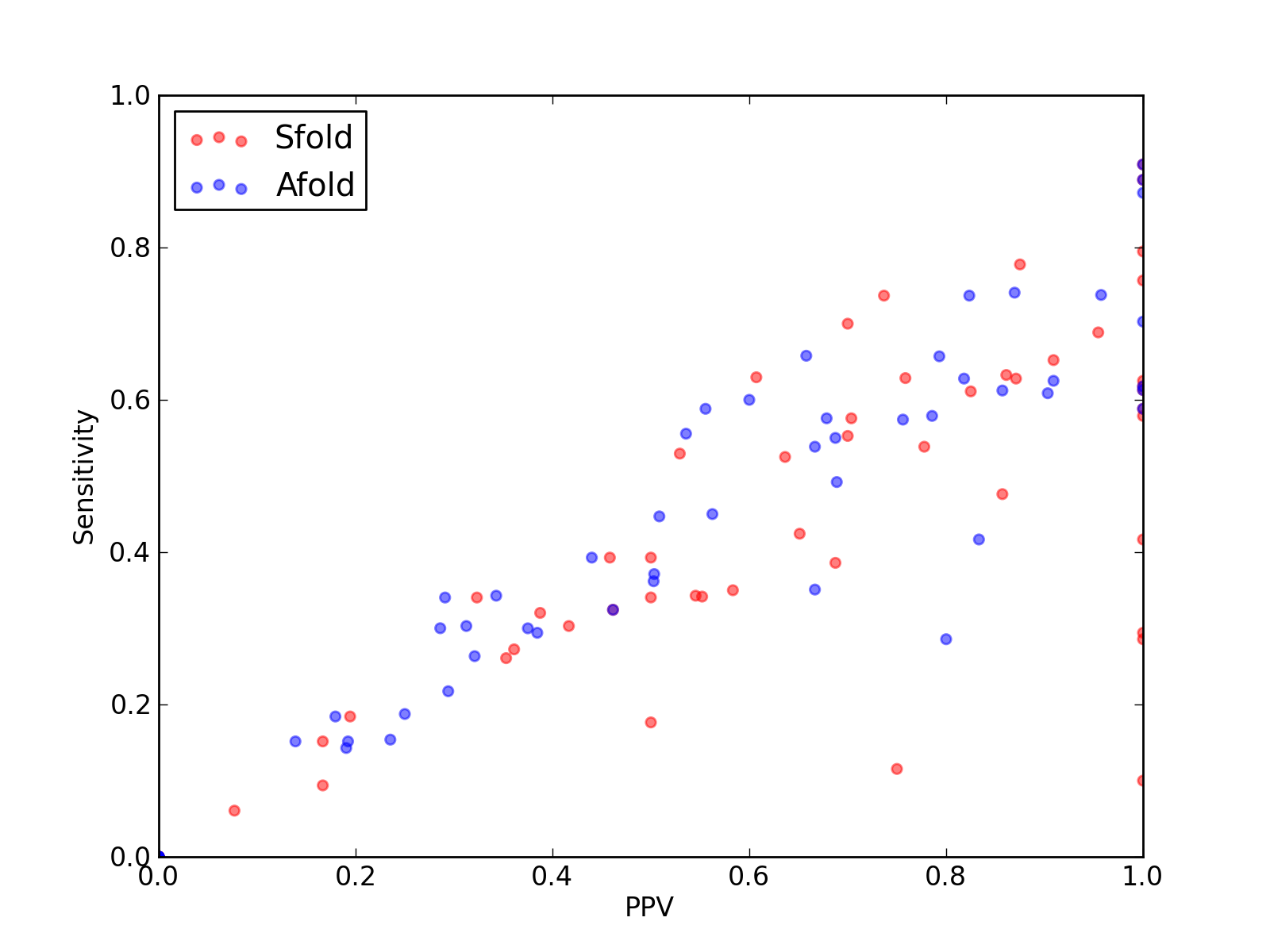

Comparison of performance of Sfold and Afold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and Afold).

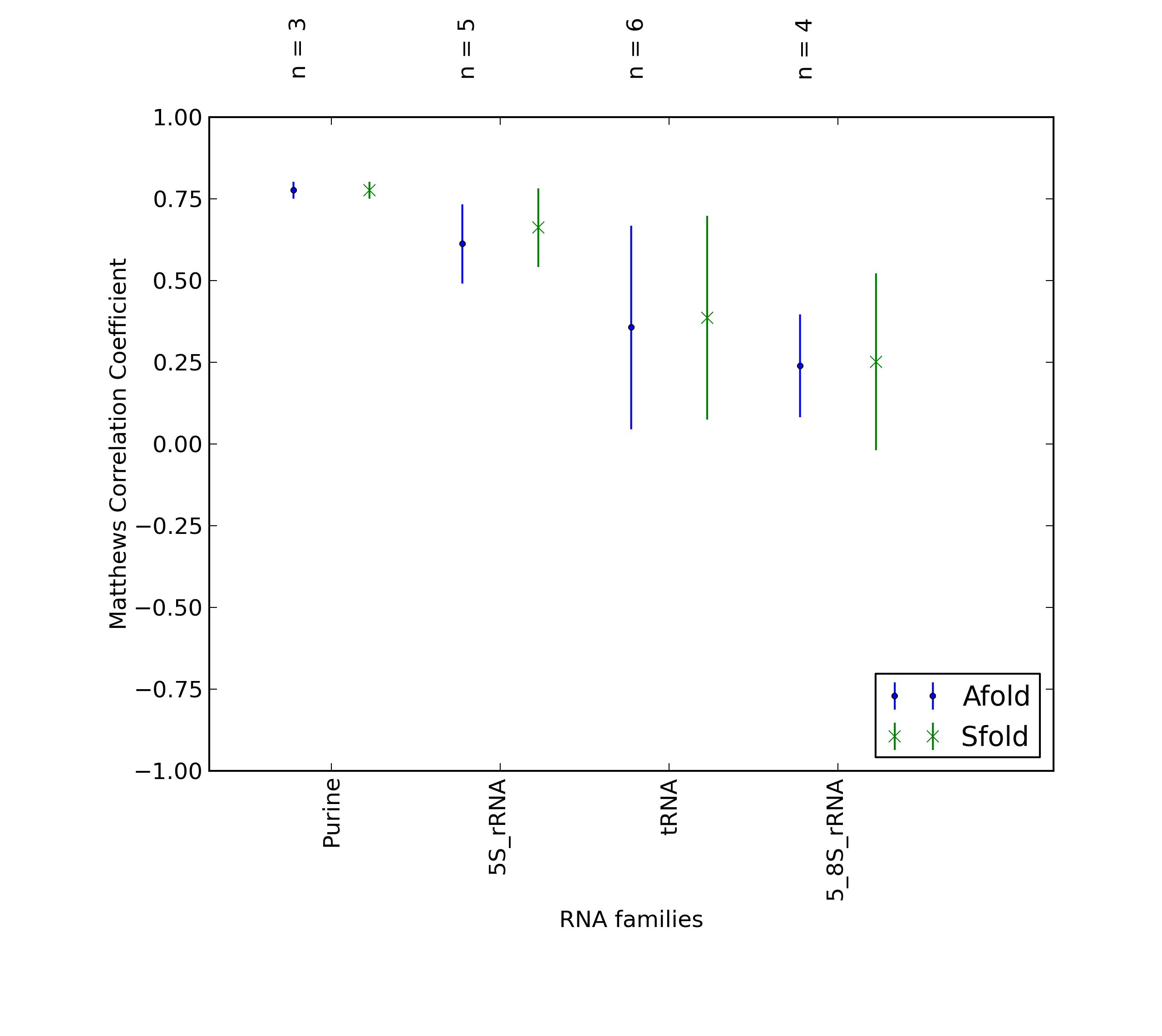

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and Afold).

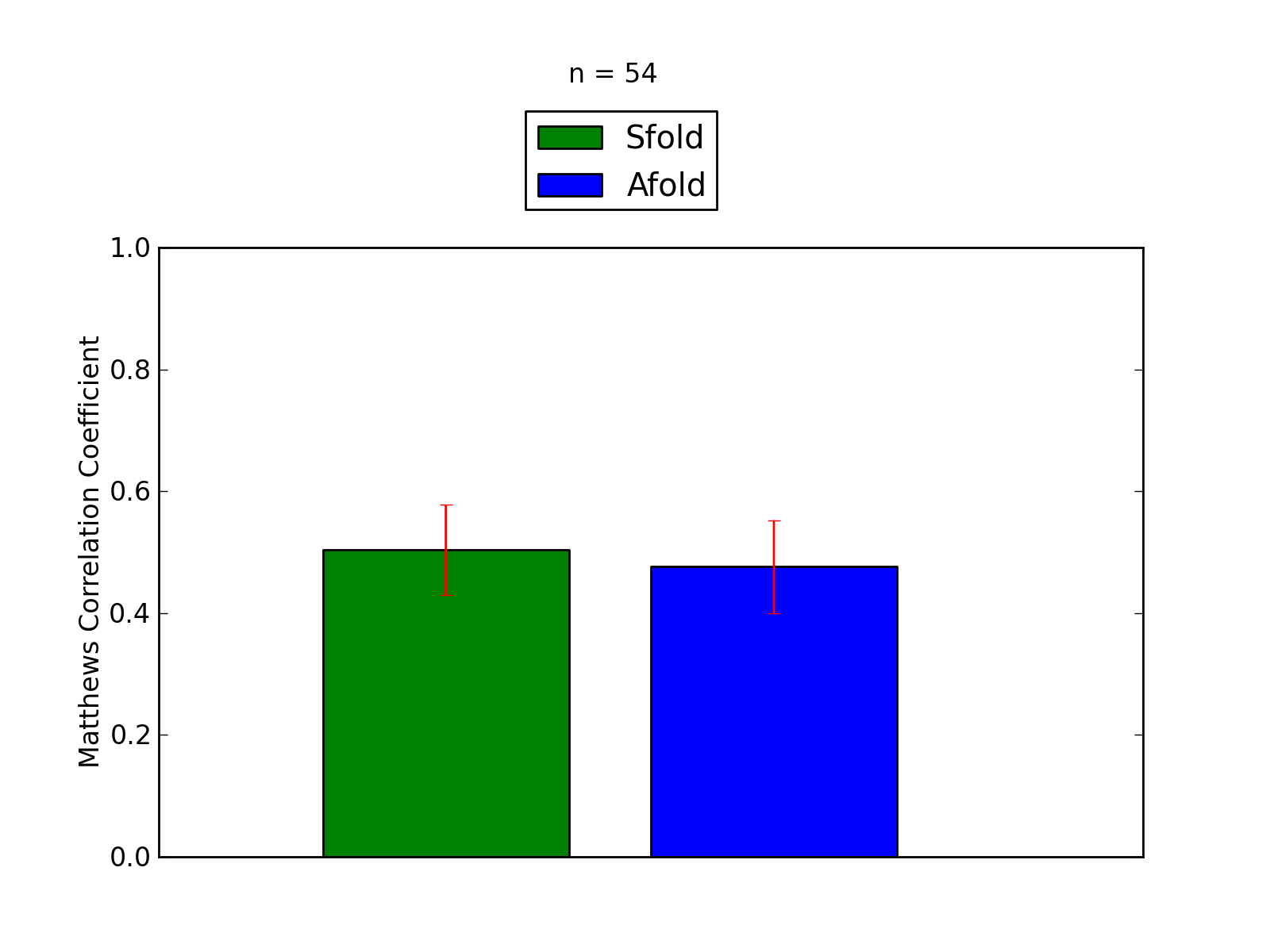

Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and Afold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and Afold).

^top

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	2027
Total TN	14428406
Total FP	2101
Total FP CONTRA	273
Total FP INCONS	1670
Total FP COMP	158
Total FN	3592

Total Scores
MCC	0.429
Average MCC ± 95% Confidence Intervals	0.504 ± 0.074
Sensitivity	0.361
Positive Predictive Value	0.511
Nr of predictions	54

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.45	0.35	0.58	7	1528	5	0	5	0	13
2LKR_A	-	0.89	0.79	1.00	31	6074	1	0	0	1	8
2M58_A	-	0.29	0.18	0.50	3	1647	3	1	2	0	14
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WDL_A	-	0.41	0.34	0.50	410	3937401	411	25	385	1	794
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WW9_F	-	0.69	0.70	0.70	7	290	3	0	3	0	3
2WW9_D	-	0.29	0.12	0.75	3	1949	1	0	1	0	23
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2ZZM_B	tRNA links to Rfam database...	0.12	0.09	0.17	3	3468	15	0	15	0	29
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.62	0.55	0.70	21	4156	9	0	9	0	17
3AKZ_H	tRNA links to Rfam database...	0.44	0.39	0.50	11	2679	11	2	9	0	17
3AM1_B	-	0.69	0.63	0.76	22	3211	7	1	6	0	13
3G4S_9	5S_rRNA links to Rfam database...	0.51	0.39	0.69	22	7349	10	1	9	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.33	0.34	0.32	32	60627	71	19	48	4	62
3IZ4_A	tmRNA links to Rfam database...	0.52	0.42	0.65	56	70790	31	3	27	1	76
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	0	7	0	21
3J0L_7	-	-0.01	0.00	0.00	0	1222	3	0	3	0	17
3J2C_O	-	0.64	0.48	0.86	30	10261	6	0	5	1	33
3J3E_8	5_8S_rRNA links to Rfam database...	0.06	0.06	0.08	2	7477	32	2	22	8	31
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2834	16	0	16	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	19	1	10	8	10
3JYX_5	-	0.35	0.32	0.39	286	5022127	525	142	310	73	607
3JYX_4	5_8S_rRNA links to Rfam database...	0.35	0.30	0.42	10	12222	23	3	11	9	23
3KIY_A	-	0.43	0.34	0.55	424	4053360	352	20	324	8	817
3KTW_C	-	0.74	0.63	0.87	27	4529	5	2	2	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.81	0.69	0.95	42	9136	3	0	2	1	19
3NKB_B	-	0.64	0.54	0.78	14	1998	4	0	4	0	12
3NPB_A	SAM links to Rfam database...	0.77	0.65	0.91	30	6988	6	1	2	3	16
3O58_2	5S_rRNA links to Rfam database...	0.74	0.74	0.74	28	7222	11	3	7	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.43	0.34	0.55	12	12381	17	0	10	7	23
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3W3S_B	tRNA-Sec links to Rfam database...	0.57	0.53	0.64	21	4720	13	1	11	1	19
3ZEX_B	-	0.31	0.27	0.36	152	1071959	280	27	242	11	406
3ZEX_F	-	0.00	0.00	0.00	0	2623	7	2	3	2	12
3ZEX_D	5S_rRNA links to Rfam database...	0.74	0.63	0.86	31	6985	5	0	5	0	18
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	5	24	0	31
3ZEX_E	-	0.00	0.00	0.00	0	21891	56	3	51	2	77
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	34	2	23	9	28
4ATO_G	-	0.31	0.10	1.00	1	527	0	0	0	0	9
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4JRC_A	-	0.29	0.26	0.35	6	1523	11	0	11	0	17

^top

Performance of Afold - scored lower in this pairwise comparison

1. Total counts & total scores for Afold

Total Base Pair Counts
Total TP	2068
Total TN	14427815
Total FP	2672
Total FP CONTRA	352
Total FP INCONS	2141
Total FP COMP	179
Total FN	3551

Total Scores
MCC	0.408
Average MCC ± 95% Confidence Intervals	0.476 ± 0.076
Sensitivity	0.368
Positive Predictive Value	0.453
Nr of predictions	54

^top

2. Individual counts for Afold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	622	8	0	8	0	20
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	6	0	5	1	9
2LKR_A	-	0.93	0.87	1.00	34	6071	3	0	0	3	5
2M58_A	-	0.33	0.29	0.38	5	1640	8	1	7	0	12
2RP0_A	-	0.58	0.42	0.83	5	345	1	0	1	0	7
2WDL_A	-	0.43	0.37	0.50	447	3937333	444	31	410	3	757
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.18	0.15	0.24	4	1936	13	0	13	0	22
2WW9_E	-	0.47	0.29	0.80	4	556	1	0	1	0	10
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.80	0.74	0.87	20	2462	3	0	3	0	7
3A2K_C	tRNA links to Rfam database...	0.41	0.39	0.44	11	2901	14	2	12	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.70	1.00	26	3629	0	0	0	0	11
3ADB_C	-	0.78	0.74	0.82	28	4152	6	0	6	0	10
3AKZ_H	tRNA links to Rfam database...	0.16	0.14	0.19	4	2680	17	2	15	0	24
3AM1_B	-	0.72	0.66	0.79	23	3211	6	0	6	0	12
3G4S_9	5S_rRNA links to Rfam database...	0.48	0.35	0.67	20	7351	11	1	9	1	37
3GCA_A	-	-0.02	0.00	0.00	0	519	9	0	9	0	17
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.62	0.58	0.68	19	4250	9	0	9	0	14
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60616	82	23	55	4	62
3IZ4_A	tmRNA links to Rfam database...	0.48	0.45	0.51	59	70760	58	11	46	1	73
3IZF_C	5S_rRNA links to Rfam database...	0.66	0.57	0.76	31	6862	10	1	9	0	23
3J0L_7	-	-0.01	0.00	0.00	0	1210	15	1	14	0	17
3J2C_O	-	0.58	0.49	0.69	31	10251	15	1	13	1	32
3J3E_8	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	7477	31	2	19	10	28
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2827	23	1	22	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.54	0.56	0.54	15	6300	24	1	12	11	12
3JYX_5	-	0.29	0.30	0.29	268	5021928	735	179	490	66	625
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3KIY_A	-	0.43	0.36	0.50	449	4053235	456	24	420	12	792
3KTW_C	-	0.71	0.63	0.82	27	4527	7	2	4	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.74	0.61	0.90	28	6990	5	0	3	2	18
3O58_2	5S_rRNA links to Rfam database...	0.66	0.66	0.66	25	7222	14	4	9	1	13
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3W3S_B	tRNA-Sec links to Rfam database...	0.50	0.45	0.56	18	4721	15	1	13	1	22
3ZEX_B	-	0.29	0.26	0.32	147	1071922	322	35	276	11	411
3ZEX_F	-	0.00	0.00	0.00	0	2617	12	2	9	1	12
3ZEX_D	5S_rRNA links to Rfam database...	0.72	0.61	0.86	30	6986	5	0	5	0	19
3ZEX_H	-	0.18	0.18	0.18	7	9006	33	6	26	1	31
3ZEX_E	-	0.00	0.00	0.00	0	21892	55	2	51	2	77
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	43	5	26	12	28
4ATO_G	-	0.32	0.30	0.38	3	520	6	1	4	1	7
4ENB_A	crcB links to Rfam database...	0.67	0.58	0.79	11	1261	3	1	2	0	8
4FNJ_A	-	0.75	0.63	0.91	10	584	1	0	1	0	6
4JRC_A	-	0.24	0.22	0.29	5	1523	12	0	12	0	18

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
